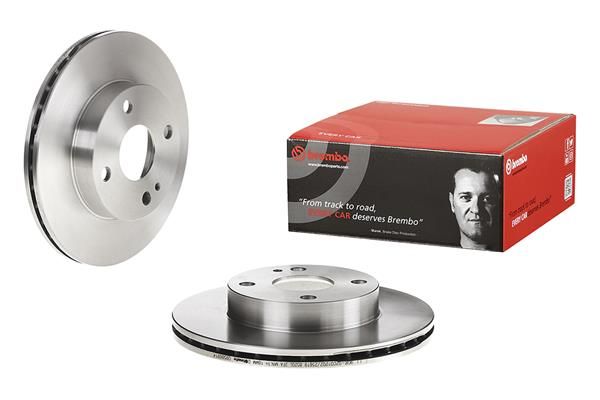

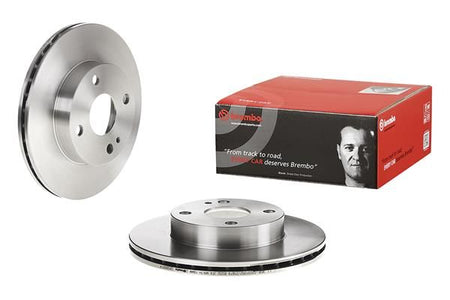

Brembo 09.5869.14 Brake Disc - 1
Brembo 09.5869.14 Brake Disc - 2
Brembo 09.5869.14 Brake Disc - 1
Brembo 09.5869.14 Brake Disc - 2
BREMBO

Brembo 09.5869.14 Brake Disc

5.0/5 78 reviews
SKU: 09.5869.14

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£46.08 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MAZDA
121 II (DB)
Description Cylinder Capacity Horse Power Year
1.3 16V (DB3PA) 1324 CCM 53 HP 11/1990 - 03/1996
1.3 i 16V (DB3PA) 1324 CCM 72 HP 11/1990 - 03/1996
1.5 (DB3PA) 1498 CCM 88 HP 11/1990 - 05/1997
323 F Mk IV (BG)
Description Cylinder Capacity Horse Power Year
1.6 (BG6S, BG6P) 1597 CCM 84 HP 09/1989 - 06/1991
1.6 16V (BG6S, BG6P) 1597 CCM 88 HP 03/1991 - 10/1994
1.8 16V (BG8S, BG8P) 1840 CCM 103 HP 08/1989 - 07/1994
1.8 4WD (BG8R) 1840 CCM 103 HP 01/1991 - 04/1994
1.6 (BG6S, BG6P) 1597 CCM 90 HP 04/1991 - 04/1994
323 C Mk IV (BG)
Description Cylinder Capacity Horse Power Year
1.3 (BG3S) 1324 CCM 67 HP 09/1989 - 07/1994
1.6 (BG6Z) 1597 CCM 84 HP 09/1989 - 06/1991
1.6 16V (BG6Z) 1597 CCM 88 HP 03/1991 - 10/1994
1.7 D (BG7S) 1720 CCM 56 HP 08/1989 - 07/1994
1.8 16V 4WD (BG8S) 1840 CCM 103 HP 11/1991 - 12/1993
1.3 16V (BG3S) 1324 CCM 73 HP 09/1989 - 07/1994
1.8 16V (BG8S) 1840 CCM 140 HP 09/1989 - 03/1993
1.6 (BG6Z) 1597 CCM 90 HP 09/1993 - 09/2000
1.8 (BG8S) 1840 CCM 130 HP 09/1989 - 06/1993
323 S Mk IV (BG)
Description Cylinder Capacity Horse Power Year
1.3 (BG3P) 1324 CCM 67 HP 09/1989 - 06/1991
1.3 16V (BG3P) 1324 CCM 73 HP 04/1991 - 07/1994
1.6 (BG6S) 1597 CCM 84 HP 09/1989 - 06/1991
1.6 16V (BG6S) 1597 CCM 88 HP 08/1989 - 10/1996
1.8 16V (BG8P) 1840 CCM 103 HP 08/1989 - 07/1994
1.7 D (BG7P) 1720 CCM 56 HP 08/1989 - 07/1994
1.8 16V 4WD 1840 CCM 103 HP 09/1991 - 07/1994
1.6 (BG6S) 1597 CCM 87 HP 06/1989 - 03/1991
323 S Mk V (BA)
Description Cylinder Capacity Horse Power Year
1.3 16V 1324 CCM 73 HP 08/1994 - 09/1998
323 C Mk V (BA)
Description Cylinder Capacity Horse Power Year
1.3 16V 1324 CCM 73 HP 08/1994 - 09/1998
323 P Mk V (BA)
Description Cylinder Capacity Horse Power Year
1.3 16V 1324 CCM 73 HP 10/1996 - 09/1998
323 S Mk VI Saloon (BJ)
Description Cylinder Capacity Horse Power Year
1.6 (BJ10M) 1598 CCM 98 HP 01/2001 - 05/2004
MX-5   (NA)
Description Cylinder Capacity Horse Power Year
1.6 (NA6C) 1597 CCM 115 HP 05/1990 - 01/1994
1.6 (NA6C) 1598 CCM 90 HP 01/1995 - 04/1998
SAO
PENZA Saloon
Description Cylinder Capacity Horse Power Year
1.3 1324 CCM 68 HP 06/1991 - 12/1993
PENZA Hatchback
Description Cylinder Capacity Horse Power Year
1.3 1324 CCM 68 HP 06/1991 - 12/1993

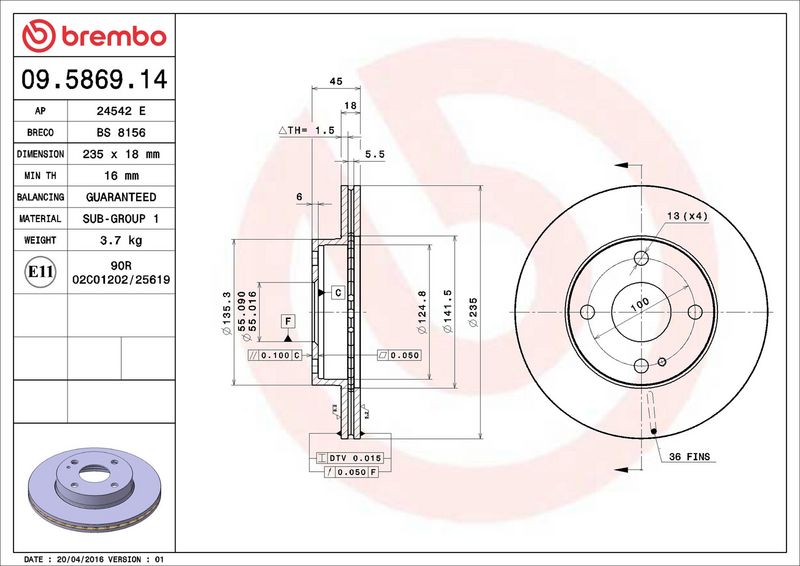

The Brembo 09.5869.14 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 18 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 18
Number of Holes : 4
Height [mm] : 45
Centering Diameter [mm] : 55
Outer Diameter [mm] : 235
Minimum thickness [mm] : 16
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.5869.14
  • Barcode 8020584012949
  • FORD : 815220001V
  • MAZDA : B25Y3325XB B4583325XC B4583325XD B5Y23325XC NA013325A NA013325X NA013325XA NA013325XB NA013325XC NA013325XD NAO13325XA SA013325X
  • KIA : KDX503325X
  • SAO : NA013325X
  • FORD ASIA & OCEANIA : B4583325XA
  • BOSCH : 0 986 478 241
  • BOSCH : 0 986 479 V65
  • DELPHI : BG2802
  • FTE : 9072614
  • HELLA : 8DD 355 103-171
  • MEYLE : 35-15 521 0001
  • MINTEX : MDC655
  • National : NBD522
  • SKF : VKBD 80907 V2
  • TEXTAR : 92061500
  • TRW : DF2719
  • TRW : DF7243
