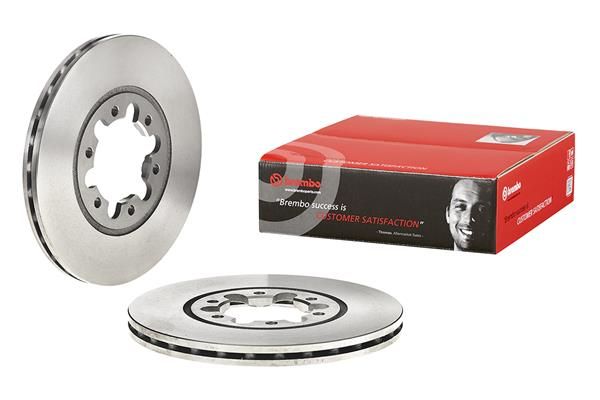

Brembo 09.5957.10 Brake Disc - 1
Brembo 09.5957.10 Brake Disc - 2
Brembo 09.5957.10 Brake Disc - 1
Brembo 09.5957.10 Brake Disc - 2
BREMBO

Brembo 09.5957.10 Brake Disc

SKU: 09.5957.10
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£50.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
B-SERIE (UF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 88 HP 01/1985 - 03/1996
2.2 2184 CCM 92 HP 08/1991 - 12/1996
2.2 D (UFY0) 2184 CCM 64 HP 01/1985 - 03/1996
1.6 1587 CCM 82 HP 01/1985 - 03/1996
2.2 D 2184 CCM 63 HP 01/1985 - 11/1989
2.2 12V 2184 CCM 97 HP 08/1991 - 03/1996
BONGO Bus (SR1)
Description Cylinder Capacity Horse Power Year
E2000 1998 CCM 86 HP 11/1984 - 05/1994
E2200 D 2184 CCM 63 HP 01/1984 - 02/1988
E2000 4WD 1998 CCM 82 HP 10/1988 - 09/1989
E Van
Description Cylinder Capacity Horse Power Year
E1600 (BA2N9) 1586 CCM 69 HP 05/1978 - 06/1984
E Van (SR2)
Description Cylinder Capacity Horse Power Year
E2200 D 2184 CCM 63 HP 05/1985 - 02/1988
E2000 1998 CCM 82 HP 03/1991 - 05/1994
E2000 1998 CCM 95 HP 06/1994 - 05/2003
2200 D 4WD 2184 CCM 64 HP 03/1991 - 05/2003
E2200 D 2184 CCM 64 HP 11/1988 - 12/2003
E2000 1998 CCM 86 HP 05/1985 - 04/1989
E2200 D 4WD 2184 CCM 71 HP 02/1997 - 05/2003
E2200 D 2184 CCM 71 HP 02/1997 - 08/2002
E2000 1998 CCM 88 HP 01/1984 - 12/1990
E2000 4WD 1998 CCM 97 HP 04/1997 - 08/1999
E1800 1789 CCM 84 HP 10/1983 - 08/1999

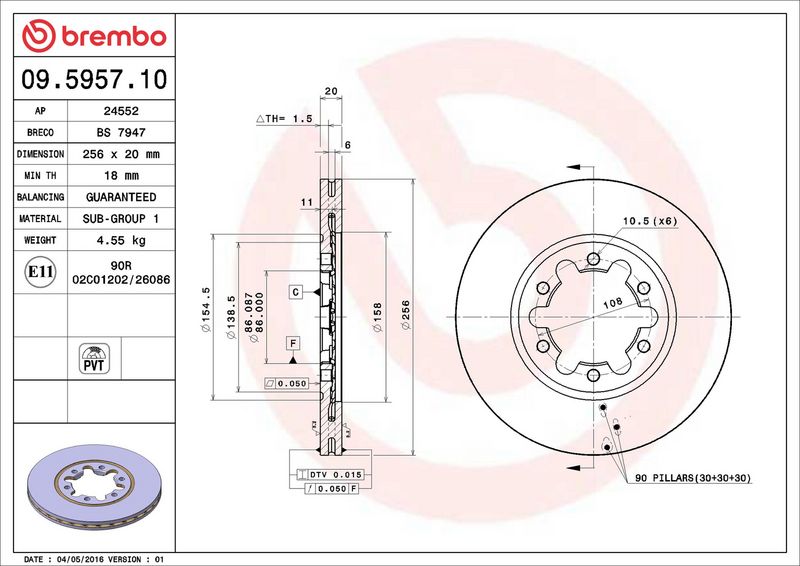

The Brembo 09.5957.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 6 mounting holes, and 86 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 6
Height [mm] : 20
Centering Diameter [mm] : 86
Outer Diameter [mm] : 256
Minimum thickness [mm] : 18
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.5957.10
  • Barcode 8020584595718
  • MAZDA : JB3933251 S08333251 S08333251A S08333251B SE2833251 SO8333251B UB3933251 UB3933251A
  • FORD ASIA & OCEANIA : S08333251B SE28E33251AA
  • BLUE PRINT : ADM54317
  • DELPHI : BG2416
  • FTE : 9072684
  • HELLA : 8DD 355 105-111
  • MINTEX : MDC972
  • National : NBD231
  • TEXTAR : 92079600
  • TRW : DF1422
