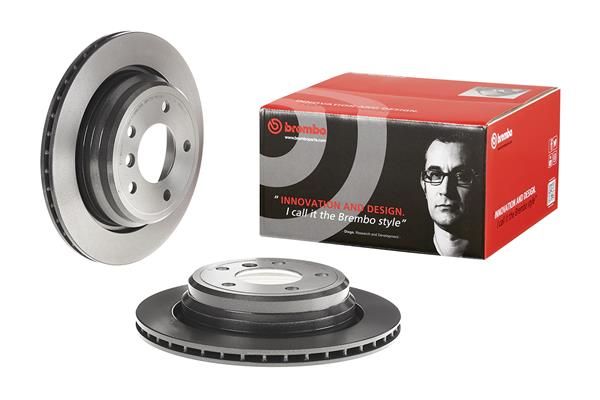

Brembo 09.6841.11 Brake Disc - 1
Brembo 09.6841.11 Brake Disc - 2
Brembo 09.6841.11 Brake Disc - 1
Brembo 09.6841.11 Brake Disc - 2
BREMBO

Brembo 09.6841.11 Brake Disc

SKU: 09.6841.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£75.82 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (E39)
Description Cylinder Capacity Horse Power Year
520 i 1990 CCM 150 HP 01/1996 - 06/2003
525 tds 2497 CCM 143 HP 01/1996 - 06/2003
523 i 2494 CCM 170 HP 09/1995 - 08/2000
528 i 2793 CCM 193 HP 09/1995 - 08/2000
540 i 4398 CCM 286 HP 03/1996 - 06/2003
535 i 3498 CCM 235 HP 06/1996 - 08/1998
525 td 2497 CCM 116 HP 01/1997 - 06/2003
530 d 2926 CCM 184 HP 08/1998 - 09/2000
535 i 3498 CCM 245 HP 09/1998 - 06/2003
520 i 1990 CCM 136 HP 01/1996 - 06/2003
520 d 1951 CCM 136 HP 02/2000 - 06/2003
525 d 2497 CCM 163 HP 02/2000 - 06/2003
520 i 2171 CCM 170 HP 09/2000 - 06/2003
530 d 2926 CCM 193 HP 09/1998 - 06/2003
5 Touring (E39)
Description Cylinder Capacity Horse Power Year
520 i 1990 CCM 150 HP 03/1997 - 08/2001
523 i 2494 CCM 170 HP 03/1997 - 08/2000
540 i 4398 CCM 286 HP 04/1997 - 12/2003
528 i 2793 CCM 193 HP 11/1996 - 08/2000
530 d 2926 CCM 184 HP 08/1998 - 09/2000
525 tds 2497 CCM 143 HP 03/1997 - 05/2004
520 i 1990 CCM 136 HP 03/1997 - 08/2001
520 d 1951 CCM 136 HP 02/2000 - 09/2003
525 d 2497 CCM 163 HP 02/2000 - 05/2004
530 d 2926 CCM 193 HP 09/2000 - 05/2004
520 i 2171 CCM 170 HP 09/2000 - 12/2003
525 i 2494 CCM 192 HP 09/2000 - 05/2004
530 i 2979 CCM 231 HP 09/2000 - 12/2003
520 i 2171 CCM 163 HP 09/2000 - 12/2003
523 i 2494 CCM 163 HP 09/1998 - 08/2000
ALPINA
B10 (E39)
Description Cylinder Capacity Horse Power Year
4.6 V8 4619 CCM 340 HP 12/1996 - 10/1998
B10 Touring (E39)
Description Cylinder Capacity Horse Power Year
4.6 V8 4619 CCM 340 HP 01/1997 - 10/1998

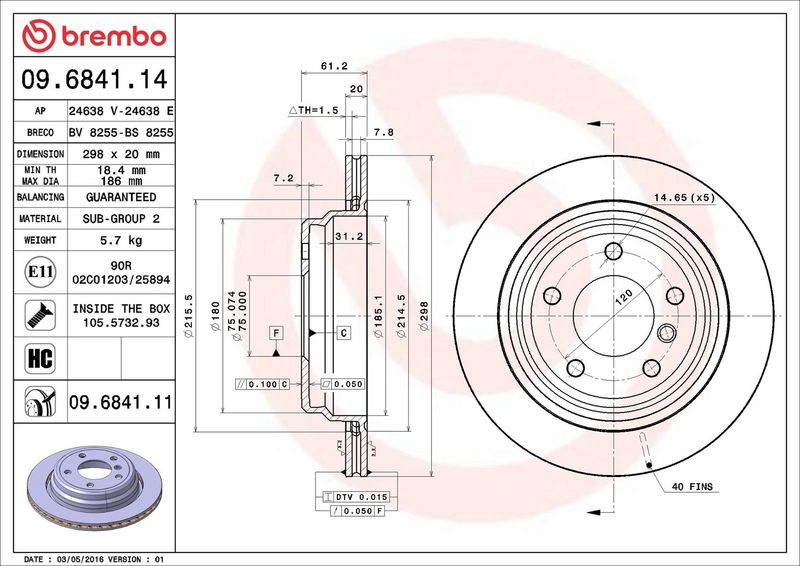

The Brembo 09.6841.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 61
Centering Diameter [mm] : 75
Outer Diameter [mm] : 298
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18.4
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.6841.11
  • Barcode 8020584014646
  • BMW : 34211163153 34211163175 34211163840 34211164175 34211164840 34216767060
  • ALPINA : 34216767060
  • BLUE PRINT : ADB114343
  • BORG & BECK : BBD4218
  • BOSCH : 0 986 478 426
  • DELPHI : BG3042
  • FEBI BILSTEIN : 17162
  • FTE : 9072192
  • HELLA : 8DD 355 104-611
  • HELLA : 8DD 355 127-261
  • MEYLE : 315 523 0058
  • MEYLE : 315 523 0058/PD
  • MINTEX : MDC1054
  • SKF : VKBD 91047 V2
  • TEXTAR : 92075100
  • TEXTAR : 92075103
  • TRW : DF2783
  • VALEO : 186860
  • VALEO : 672665
