BREMBO

Brembo 09.6924.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.6924.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£86.74 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

5 (E39)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	01/1996 - 06/2003
525 tds	2497 CCM	143 HP	01/1996 - 06/2003
523 i	2494 CCM	170 HP	09/1995 - 08/2000
528 i	2793 CCM	193 HP	09/1995 - 08/2000
535 i	3498 CCM	235 HP	06/1996 - 08/1998
525 td	2497 CCM	116 HP	01/1997 - 06/2003
530 d	2926 CCM	184 HP	08/1998 - 09/2000
520 i	1990 CCM	136 HP	01/1996 - 06/2003
520 d	1951 CCM	136 HP	02/2000 - 06/2003
525 d	2497 CCM	163 HP	02/2000 - 06/2003
520 i	2171 CCM	170 HP	09/2000 - 06/2003

5 Touring (E39)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	03/1997 - 08/2001
523 i	2494 CCM	170 HP	03/1997 - 08/2000
528 i	2793 CCM	193 HP	11/1996 - 08/2000
530 d	2926 CCM	184 HP	08/1998 - 09/2000
525 tds	2497 CCM	143 HP	03/1997 - 05/2004
520 i	1990 CCM	136 HP	03/1997 - 08/2001
520 d	1951 CCM	136 HP	02/2000 - 09/2003
525 d	2497 CCM	163 HP	02/2000 - 05/2004
530 d	2926 CCM	193 HP	09/2000 - 05/2004
520 i	2171 CCM	170 HP	09/2000 - 12/2003
525 i	2494 CCM	192 HP	09/2000 - 05/2004
520 i	2171 CCM	163 HP	09/2000 - 12/2003
523 i	2494 CCM	163 HP	09/1998 - 08/2000

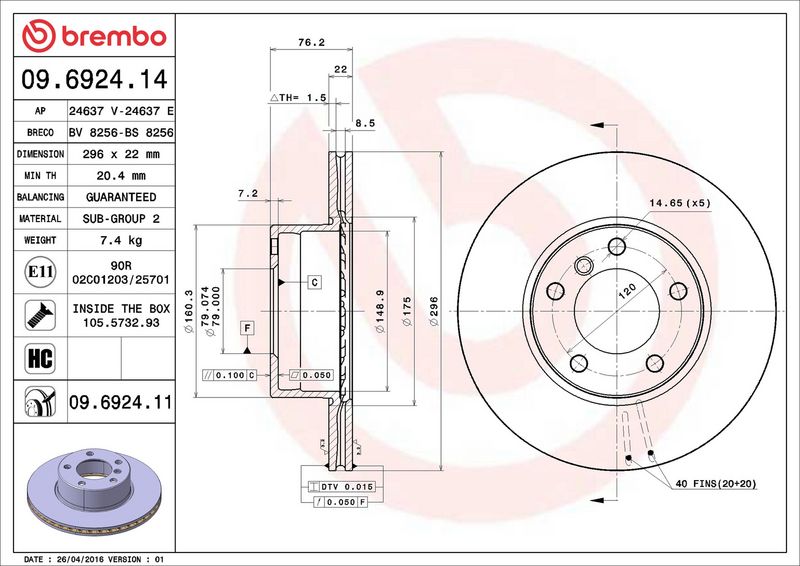

The Brembo 09.6924.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 22

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 76

Centering Diameter [mm] : 79

Outer Diameter [mm] : 296

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 20.4

Tightening Torque [Nm] : 120
