BREMBO

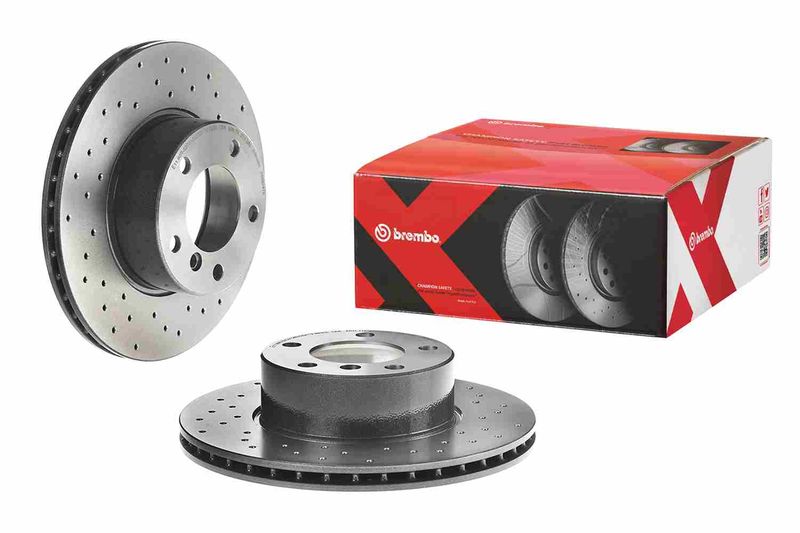

Brembo 09.6924.1X Brake Disc

SKU: 09.6924.1X

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£151.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

5 (E39)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	01/1996 - 06/2003
525 tds	2497 CCM	143 HP	01/1996 - 06/2003
523 i	2494 CCM	170 HP	09/1995 - 08/2000
528 i	2793 CCM	193 HP	09/1995 - 08/2000
535 i	3498 CCM	235 HP	06/1996 - 08/1998
525 td	2497 CCM	116 HP	01/1997 - 06/2003
530 d	2926 CCM	184 HP	08/1998 - 09/2000
520 i	1990 CCM	136 HP	01/1996 - 06/2003
520 d	1951 CCM	136 HP	02/2000 - 06/2003
525 d	2497 CCM	163 HP	02/2000 - 06/2003
520 i	2171 CCM	170 HP	09/2000 - 06/2003

5 Touring (E39)

Description	Cylinder Capacity	Horse Power	Year
520 i	1990 CCM	150 HP	03/1997 - 08/2001
523 i	2494 CCM	170 HP	03/1997 - 08/2000
528 i	2793 CCM	193 HP	11/1996 - 08/2000
530 d	2926 CCM	184 HP	08/1998 - 09/2000
525 tds	2497 CCM	143 HP	03/1997 - 05/2004
520 i	1990 CCM	136 HP	03/1997 - 08/2001
520 d	1951 CCM	136 HP	02/2000 - 09/2003
525 d	2497 CCM	163 HP	02/2000 - 05/2004
530 d	2926 CCM	193 HP	09/2000 - 05/2004
520 i	2171 CCM	170 HP	09/2000 - 12/2003
525 i	2494 CCM	192 HP	09/2000 - 05/2004
520 i	2171 CCM	163 HP	09/2000 - 12/2003
523 i	2494 CCM	163 HP	09/1998 - 08/2000

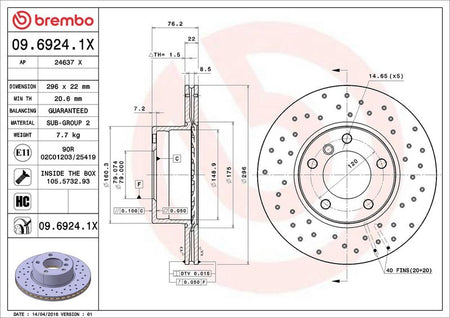

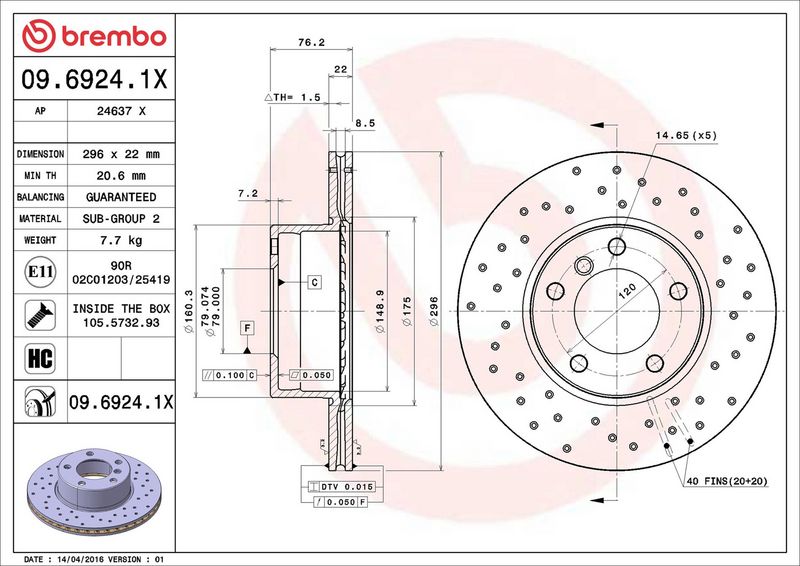

The Brembo 09.6924.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Brake Disc Thickness [mm] : 22

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 76

Centering Diameter [mm] : 79

Outer Diameter [mm] : 296

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 20.6

Tightening Torque [Nm] : 120

BLUE PRINT : ADB114341
BOSCH : 0 986 478 848
BOSCH : 0 986 479 R72
DELPHI : BG3043
FEBI BILSTEIN : 10753
FTE : 9071013
HELLA : 8DD 355 104-591
MEYLE : 315 521 3019
MEYLE : 383 521 3019/PD
MINTEX : MDC989
TEXTAR : 92075000
TEXTAR : 92075005
TRW : DF2769
VALEO : 197330
VALEO : 672613

Brembo 09.6924.1X Brake Disc
