BREMBO

Brembo 09.7131.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.7131.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£77.97 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,

Description	Cylinder Capacity	Horse Power	Year
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.5	2461 CCM	110 HP	11/1990 - 04/2003
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.0	1968 CCM	84 HP	07/1990 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	05/1998 - 04/2003
2.8	2792 CCM	140 HP	05/1996 - 05/2000

TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.0	1968 CCM	84 HP	07/1990 - 04/2003
2.5	2461 CCM	110 HP	11/1990 - 04/2003
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	07/1990 - 04/1998
2.5 Syncro	2461 CCM	110 HP	11/1992 - 11/2001
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	12/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	09/2000 - 04/2003

TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,

Description	Cylinder Capacity	Horse Power	Year
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5 Syncro	2461 CCM	110 HP	08/1992 - 04/2003
2.5	2461 CCM	110 HP	09/1990 - 06/2003
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.0	1968 CCM	84 HP	09/1990 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	01/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	07/1996 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.8 VR 6	2792 CCM	140 HP	11/1995 - 04/2000
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003
2.5 TDI	2461 CCM	151 HP	05/1998 - 04/2003

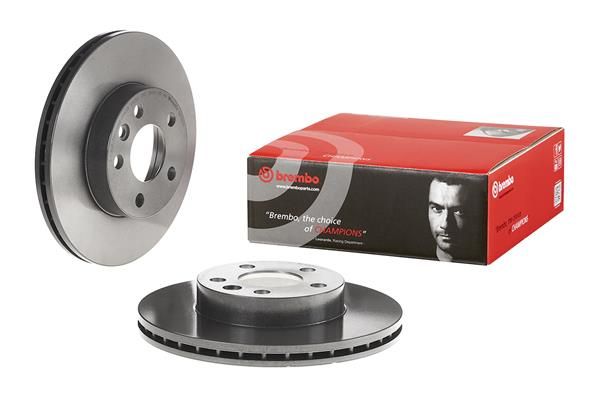

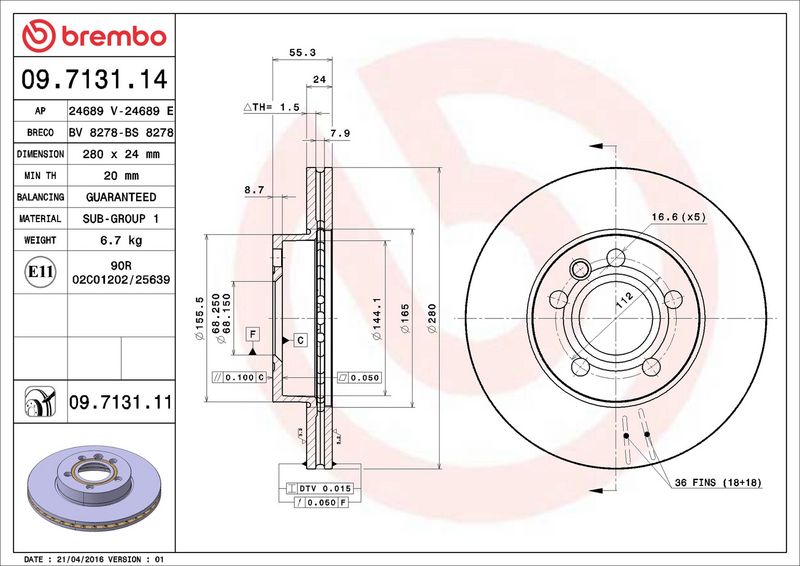

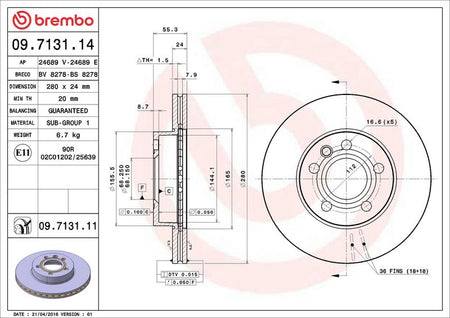

The Brembo 09.7131.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 24

Number of Holes : 5

Height [mm] : 55

Centering Diameter [mm] : 68

Outer Diameter [mm] : 280

Surface : Coated

Minimum thickness [mm] : 20

Tightening Torque [Nm] : 170
