BREMBO

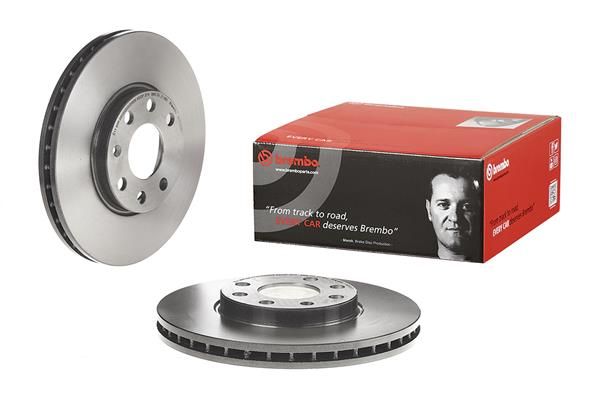

Brembo 09.7628.11 Brake Disc

SKU: 09.7628.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£62.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
ASTRA G Hatchback (T98)
Description Cylinder Capacity Horse Power Year
1.2 16V (F08, F48) 1199 CCM 65 HP 02/1998 - 09/2000
1.6 (F08, F48) 1598 CCM 75 HP 02/1998 - 09/2000
1.6 16V (F08, F48) 1598 CCM 101 HP 02/1998 - 01/2005
1.8 16V (F08, F48) 1796 CCM 116 HP 02/1998 - 09/2000
1.7 TD (F08, F48) 1699 CCM 68 HP 02/1998 - 08/2000
2.0 DI (F08, F48) 1995 CCM 82 HP 02/1998 - 01/2005
1.4 16V (F08, F48) 1389 CCM 90 HP 02/1998 - 01/2005
1.7 DTI 16V (F08, F48) 1686 CCM 75 HP 02/2000 - 01/2005
1.2 16V (F08, F48) 1199 CCM 75 HP 09/2000 - 01/2005
1.6 (F08, F48) 1598 CCM 84 HP 09/2000 - 01/2005
1.8 16V (F08, F48) 1796 CCM 125 HP 09/2000 - 01/2005
ASTRA G Estate (T98)
Description Cylinder Capacity Horse Power Year
1.6 (F35) 1598 CCM 75 HP 02/1998 - 09/2000
1.6 16V (F35) 1598 CCM 101 HP 02/1998 - 07/2004
1.8 16V (F35) 1796 CCM 116 HP 02/1998 - 09/2000
1.7 TD (F35) 1699 CCM 68 HP 02/1998 - 08/2000
2.0 DI (F35) 1995 CCM 82 HP 02/1998 - 07/2004
1.4 16V (F35) 1389 CCM 90 HP 06/1998 - 07/2004
1.7 DTI 16V (F35) 1686 CCM 75 HP 02/2000 - 07/2004
1.2 16V (F35) 1199 CCM 75 HP 09/2000 - 07/2004
1.6 (F35) 1598 CCM 84 HP 09/2000 - 07/2004
1.8 16V (F35) 1796 CCM 125 HP 09/2000 - 07/2004
ASTRA G Saloon (T98)
Description Cylinder Capacity Horse Power Year
1.6 (F69) 1598 CCM 75 HP 09/1998 - 09/2000
1.6 16V (F69) 1598 CCM 101 HP 09/1998 - 01/2005
1.8 16V (F69) 1796 CCM 116 HP 09/1998 - 09/2000
2.0 DI (F69) 1995 CCM 82 HP 09/1998 - 01/2005
1.7 TD (F69) 1699 CCM 68 HP 09/1998 - 08/2000
1.4 16V (F69) 1389 CCM 90 HP 09/1998 - 01/2005
1.7 DTI 16V (F69) 1686 CCM 75 HP 02/2000 - 01/2005
1.2 16V (F69) 1199 CCM 75 HP 09/2000 - 01/2005
1.6 (F69) 1598 CCM 84 HP 09/2000 - 01/2005
1.8 16V (F69) 1796 CCM 125 HP 06/2000 - 01/2005
1.7 CDTI (F69) 1686 CCM 80 HP 04/2003 - 12/2009
ASTRA G Estate Van (F70)
Description Cylinder Capacity Horse Power Year
1.6 (F70) 1598 CCM 75 HP 01/1999 - 09/2000
1.7 TD (F70) 1699 CCM 68 HP 01/1999 - 04/2005
2.0 DI (F70) 1995 CCM 82 HP 01/1999 - 04/2005
1.6 (F70) 1598 CCM 84 HP 09/2000 - 04/2005
1.6 (F70) 1598 CCM 103 HP 02/2004 - 11/2004
1.7 DTI 16V (F70) 1686 CCM 75 HP 02/2000 - 04/2005
1.7 CDTi (F70) 1686 CCM 80 HP 07/2003 - 11/2004
1.6 LPG (F70) 1598 CCM 75 HP 01/1999 - 09/2000
1.6 LPG (F70) 1598 CCM 84 HP 12/2000 - 04/2005
ASTRA G Coupe (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V (F07) 1598 CCM 101 HP 03/2000 - 05/2005
1.8 16V (F07) 1796 CCM 116 HP 03/2000 - 10/2000
1.8 16V (F07) 1796 CCM 125 HP 09/2000 - 05/2005
1.6 16V (F07) 1598 CCM 103 HP 03/2000 - 05/2005
ASTRA G Convertible (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V (F67) 1598 CCM 101 HP 03/2001 - 10/2005
1.8 16V (F67) 1796 CCM 125 HP 03/2001 - 10/2005
1.6 (F67) 1598 CCM 103 HP 01/2003 - 10/2005
ASTRA G CLASSIC Caravan (F35)
Description Cylinder Capacity Horse Power Year
1.4 (F35) 1364 CCM 90 HP 10/2007 - 07/2009
1.7 CDTI 1686 CCM 80 HP 05/2004 - 07/2009
1.4 16V 1389 CCM 90 HP 07/2004 - 09/2007
1.6 1598 CCM 103 HP 02/2006 - 07/2009
1.6 1598 CCM 101 HP 06/2004 - 02/2006
ASTRA G CLASSIC (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V (F08, F48) 1389 CCM 90 HP 05/2004 - 07/2009
1.6 16V (F08, F48) 1598 CCM 101 HP 05/2004 - 02/2006
1.6 (F08, F48) 1598 CCM 103 HP 03/2006 - 06/2008
1.7 CDTI (F08, F48) 1686 CCM 80 HP 06/2004 - 07/2009
ASTRA G CLASSIC Saloon (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V (F69) 1598 CCM 101 HP 03/2004 - 01/2008
1.4 16V (F69) 1389 CCM 90 HP 05/2004 - 07/2009
VAUXHALL
ASTRA Mk IV (G) Saloon (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V 1389 CCM 90 HP 09/1998 - 05/2005
1.6 1598 CCM 75 HP 09/1998 - 09/2000
1.6 16V 1598 CCM 101 HP 09/1998 - 05/2005
1.8 16V 1796 CCM 116 HP 02/1998 - 07/2004
1.7 TD 1700 CCM 68 HP 09/1998 - 08/2000
2.0 DI 1995 CCM 82 HP 02/1998 - 07/2004
1.7 DTI 16V 1686 CCM 75 HP 02/2000 - 05/2005
1.6 1598 CCM 84 HP 09/2000 - 05/2005
1.8 16V 1796 CCM 125 HP 02/1998 - 07/2004
1.7 CDTI 16V 1686 CCM 80 HP 04/2003 - 05/2005
1.6 Dualfuel 1598 CCM 85 HP 09/2002 - 05/2005
1.8 16V Dualfuel 1796 CCM 118 HP 02/1998 - 07/2004
1.6 Dualfuel 1598 CCM 86 HP 07/2000 - 05/2005
ASTRA Mk IV (G) Hatchback (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V (F08, F48) 1389 CCM 90 HP 02/1998 - 05/2005
1.6 (F08, F48) 1598 CCM 75 HP 02/1998 - 09/2000
1.6 16V (F08, F48) 1598 CCM 101 HP 02/1998 - 05/2005
1.8 16V (F08, F48) 1796 CCM 116 HP 02/1998 - 09/2000
1.7 TD (F08, F48) 1700 CCM 68 HP 02/1998 - 08/2000
2.0 DI (F48) 1995 CCM 82 HP 02/1998 - 05/2005
1.7 DTI 16V (F08, F48) 1686 CCM 75 HP 02/2000 - 05/2005
1.6 (F08, F48) 1598 CCM 84 HP 09/2000 - 05/2005
1.8 16V (F08, F48) 1796 CCM 125 HP 09/2000 - 05/2005
1.7 CDTI 16V (F08, F48) 1686 CCM 80 HP 04/2003 - 05/2005
1.6 Dualfuel (F08, F48) 1598 CCM 85 HP 09/2002 - 05/2005
ASTRA Mk IV (G) Estate (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V 1389 CCM 90 HP 02/1998 - 05/2005
1.6 1598 CCM 75 HP 03/1998 - 04/2004
1.6 16V 1598 CCM 101 HP 03/1998 - 04/2004
1.8 16V 1796 CCM 116 HP 02/1998 - 08/2000
1.7 TD 1700 CCM 68 HP 02/1998 - 08/2000
2.0 DI 1995 CCM 82 HP 03/1998 - 04/2004
1.6 1598 CCM 103 HP 12/2002 - 05/2005
1.7 DTI 16V 1686 CCM 75 HP 02/2000 - 05/2005
1.6 1598 CCM 84 HP 03/1998 - 04/2004
1.8 16V 1796 CCM 125 HP 09/2000 - 05/2005
1.7 CDTI 16V 1686 CCM 80 HP 04/2003 - 05/2005
1.6 Dualfuel 1598 CCM 85 HP 03/1998 - 04/2004
1.8 16V Dualfuel 1796 CCM 118 HP 09/2002 - 05/2005
ASTRA Mk IV (G) Coupe (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 103 HP 03/2000 - 08/2005
1.8 16V 1796 CCM 115 HP 03/2000 - 08/2005
1.8 16V 1796 CCM 125 HP 09/2000 - 08/2005
1.8 16V Dualfuel 1796 CCM 118 HP 09/2002 - 08/2005
1.8 16V Dualfuel 1796 CCM 125 HP 07/2002 - 08/2004
ASTRA Mk IV (G) Convertible (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 103 HP 03/2003 - 10/2005
1.6 16V 1598 CCM 101 HP 03/2001 - 10/2005
1.8 16V 1796 CCM 125 HP 03/2001 - 10/2005
ASTRAVAN Mk IV (G) Estate Van (T98)
Description Cylinder Capacity Horse Power Year
1.6 i 1598 CCM 75 HP 08/1998 - 09/2000
1.7 TD 1700 CCM 68 HP 08/1998 - 08/2006
2.0 DI 1995 CCM 82 HP 08/1998 - 08/2006
1.6 i 1598 CCM 84 HP 09/2000 - 08/2006
1.7 CDTI 1686 CCM 80 HP 07/2003 - 08/2006
2.0 DTI 1995 CCM 100 HP 04/2004 - 08/2006
1.7 DTI 16V 1686 CCM 75 HP 04/2001 - 08/2006
1.6 Dualfuel 1598 CCM 101 HP 07/2000 - 08/2005
1.4 16V 1389 CCM 90 HP 09/2000 - 05/2005
1.6 Dualfuel 1598 CCM 75 HP 02/1998 - 12/2000
1.6 Dualfuel 1598 CCM 84 HP 09/2000 - 10/2004
1.6 Dualfuel 16V 1598 CCM 105 HP 10/2004 - 12/2005
ZAFIRA A (T98)
Description Cylinder Capacity Horse Power Year
1.8 16V 1796 CCM 116 HP 05/1999 - 08/2000
CHEVROLET
CORSA Saloon
Description Cylinder Capacity Horse Power Year
1.7 D 1686 CCM 60 HP 08/2000 - 07/2002

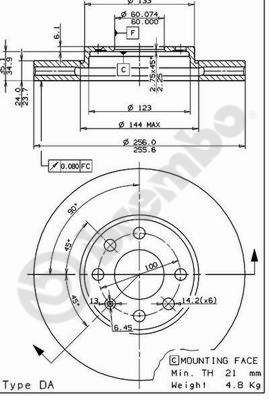

The Brembo 09.7628.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 4 mounting holes, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 41
Centering Diameter [mm] : 60
Outer Diameter [mm] : 256
Surface : Coated
Minimum thickness [mm] : 21
Tightening Torque [Nm] : 110
  • Vendor BREMBO
  • SKU 09.7628.11
  • Barcode 8020584028186
  • OPEL : 569059 9117677 95526647
  • VAUXHALL : 90497879 9117677 95526647
  • CHEVROLET : 90497879 9117677
  • BORG & BECK : BBD4073
  • BOSCH : 0 986 478 881
  • BOSCH : 0 986 479 R76
  • DELPHI : BG3404
  • DELPHI : BG3404C
  • FEBI BILSTEIN : 17210
  • FTE : 9072061
  • HELLA : 8DD 355 106-051
  • MEYLE : 615 521 0009
  • MEYLE : 615 521 0009/PD
  • MINTEX : MDC1049C
  • SKF : VKBD 80511 V2
  • TEXTAR : 92091800
  • TEXTAR : 92091803
  • TRW : DF4042
  • VALEO : 186592
  • VALEO : 886592
