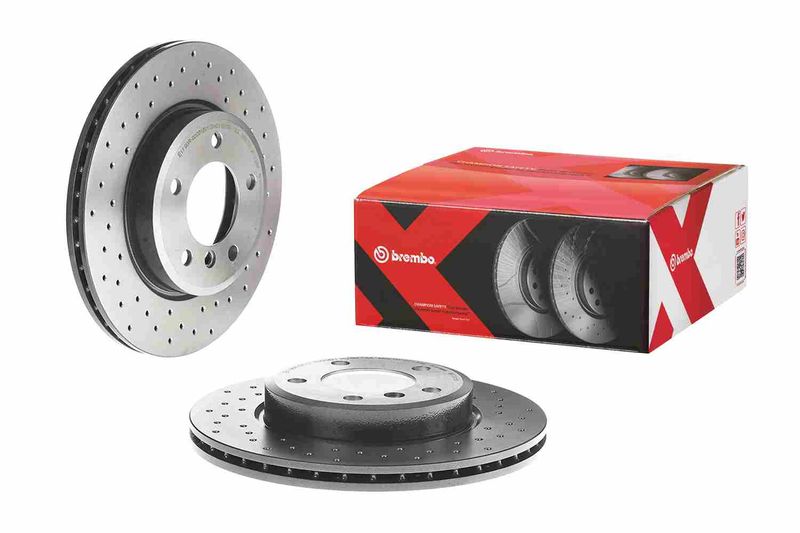

Brembo 09.7701.1X Brake Disc - 1

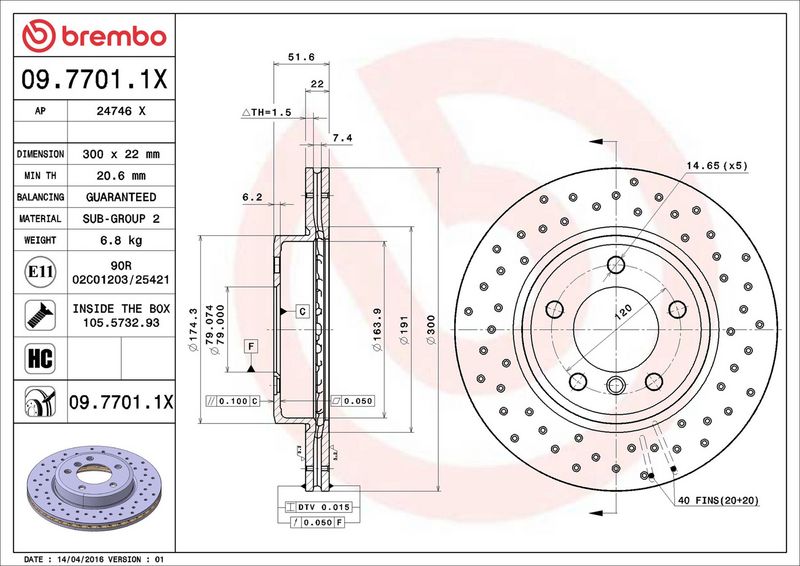

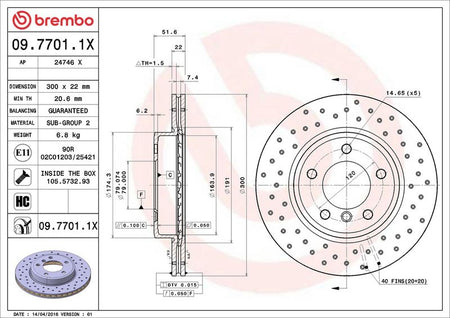

Brembo 09.7701.1X Brake Disc - 2
Brembo 09.7701.1X Brake Disc - 1
Brembo 09.7701.1X Brake Disc - 2
BREMBO

Brembo 09.7701.1X Brake Disc

SKU: 09.7701.1X
Your selected vehicle
Out of stock
Out of Stock
£137.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 (E46)
Description Cylinder Capacity Horse Power Year
328 i 2793 CCM 193 HP 02/1998 - 06/2000
323 i 2494 CCM 170 HP 03/1998 - 09/2000
320 i 1990 CCM 150 HP 03/1998 - 09/2000
320 i 2171 CCM 170 HP 09/2000 - 02/2005
325 i 2494 CCM 192 HP 09/2000 - 02/2005
325 xi 2494 CCM 192 HP 09/2000 - 02/2005
318 i 1995 CCM 143 HP 09/2001 - 02/2005
3 Coupe (E46)
Description Cylinder Capacity Horse Power Year
328 Ci 2793 CCM 193 HP 12/1998 - 05/2000
325 Ci 2494 CCM 192 HP 09/2000 - 05/2006
318 Ci 1995 CCM 143 HP 09/2001 - 02/2004
320 Cd 1995 CCM 150 HP 11/2003 - 07/2006
3 Touring (E46)
Description Cylinder Capacity Horse Power Year
318 i 1895 CCM 118 HP 10/1999 - 09/2001
328 i 2793 CCM 193 HP 06/1999 - 05/2000
320 i 2171 CCM 170 HP 09/2000 - 02/2005
325 i 2494 CCM 192 HP 09/2000 - 02/2005
325 xi 2494 CCM 192 HP 09/2000 - 02/2005
320 d 1995 CCM 150 HP 09/2001 - 02/2005
318 i 1995 CCM 143 HP 09/2001 - 07/2005
318 d 1951 CCM 115 HP 10/2002 - 03/2003
3 Convertible (E46)
Description Cylinder Capacity Horse Power Year
323 Ci 2494 CCM 170 HP 04/2000 - 09/2000
320 Ci 2171 CCM 170 HP 09/2000 - 12/2007
325 Ci 2494 CCM 192 HP 09/2000 - 08/2006
320 Cd 1995 CCM 150 HP 02/2005 - 12/2007
320 Ci 2171 CCM 163 HP 01/2006 - 12/2007
323 Ci 2494 CCM 163 HP 04/2000 - 09/2000
3 Compact (E46)
Description Cylinder Capacity Horse Power Year
325 ti 2494 CCM 192 HP 04/2001 - 12/2004
320 td 1995 CCM 150 HP 09/2001 - 02/2005
320 td 1995 CCM 136 HP 10/2001 - 12/2002
Z3 Roadster (E36)
Description Cylinder Capacity Horse Power Year
3.0 i 2979 CCM 231 HP 06/2000 - 01/2003
Z3 Coupe (E36)
Description Cylinder Capacity Horse Power Year
3.0 i 2979 CCM 231 HP 06/2000 - 06/2003
Z4 Roadster (E85)
Description Cylinder Capacity Horse Power Year
3.0 i 2979 CCM 231 HP 12/2002 - 12/2005
2.5 si 2497 CCM 218 HP 01/2006 - 08/2008
2.5 si 2497 CCM 211 HP 09/2005 - 02/2009

The Brembo 09.7701.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 52
Centering Diameter [mm] : 79
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.6
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.7701.1X
  • Barcode 8020584212509
  • BMW : 34111164539 34116757526 34116766224 34116794302 34116855152 34116864058
  • BMW (BRILLIANCE) : 34111164539 34116757526 34116766224 34116855152 34116864058
  • BLUE PRINT : ADB114350
  • BOSCH : 0 986 478 571
  • BOSCH : 0 986 479 S32
  • DELPHI : BG3527C
  • FEBI BILSTEIN : 12323
  • FTE : 9072120
  • HELLA : 8DD 355 106-551
  • MEYLE : 315 521 3020
  • MEYLE : 383 521 3020/PD
  • MINTEX : MDC1383C
  • TEXTAR : 92097205
  • TRW : DF4055
  • VALEO : 186815
  • VALEO : 672604
