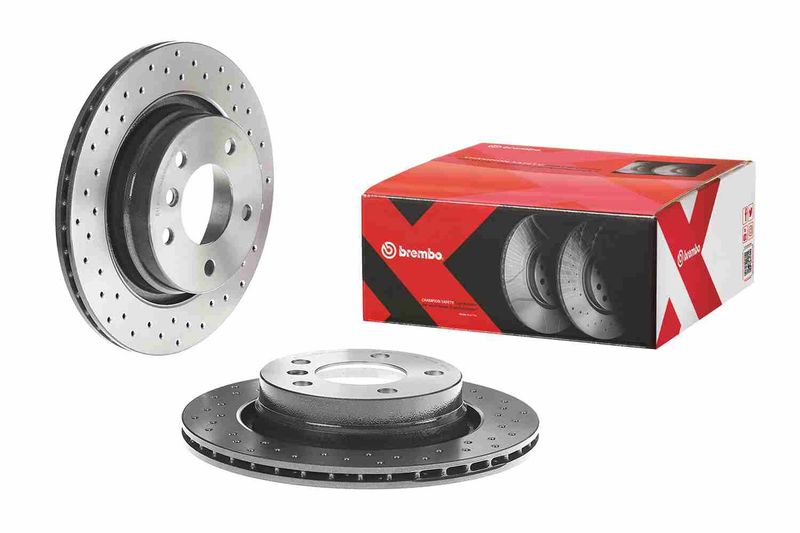

Brembo 09.7702.1X Brake Disc - 1

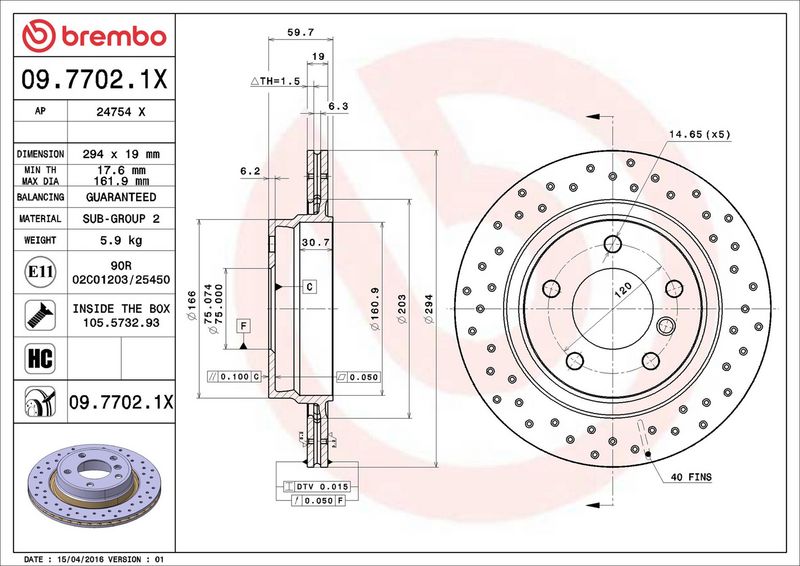

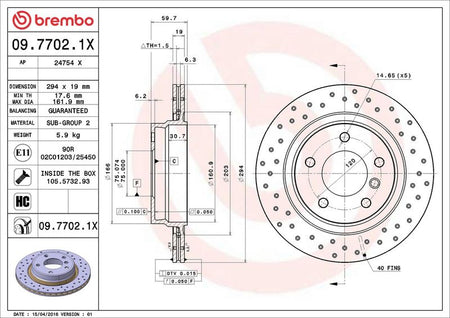

Brembo 09.7702.1X Brake Disc - 2
Brembo 09.7702.1X Brake Disc - 1
Brembo 09.7702.1X Brake Disc - 2
BREMBO

Brembo 09.7702.1X Brake Disc

SKU: 09.7702.1X
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£125.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 (E46)
Description Cylinder Capacity Horse Power Year
328 i 2793 CCM 193 HP 02/1998 - 06/2000
323 i 2494 CCM 170 HP 03/1998 - 09/2000
320 i 1990 CCM 150 HP 03/1998 - 09/2000
320 i 2171 CCM 170 HP 09/2000 - 02/2005
325 i 2494 CCM 192 HP 09/2000 - 02/2005
318 i 1995 CCM 143 HP 09/2001 - 02/2005
3 Coupe (E46)
Description Cylinder Capacity Horse Power Year
328 Ci 2793 CCM 193 HP 12/1998 - 05/2000
325 Ci 2494 CCM 192 HP 09/2000 - 05/2006
318 Ci 1995 CCM 143 HP 09/2001 - 02/2004
320 Cd 1995 CCM 150 HP 11/2003 - 07/2006
3 Touring (E46)
Description Cylinder Capacity Horse Power Year
318 i 1895 CCM 118 HP 10/1999 - 09/2001
328 i 2793 CCM 193 HP 06/1999 - 05/2000
320 i 2171 CCM 170 HP 09/2000 - 02/2005
325 i 2494 CCM 192 HP 09/2000 - 02/2005
320 d 1995 CCM 150 HP 09/2001 - 02/2005
318 i 1995 CCM 143 HP 09/2001 - 07/2005
318 d 1951 CCM 115 HP 10/2002 - 03/2003
3 Convertible (E46)
Description Cylinder Capacity Horse Power Year
323 Ci 2494 CCM 170 HP 04/2000 - 09/2000
320 Ci 2171 CCM 170 HP 09/2000 - 12/2007
325 Ci 2494 CCM 192 HP 09/2000 - 08/2006
318 Ci 1995 CCM 143 HP 09/2001 - 12/2007
320 Cd 1995 CCM 150 HP 02/2005 - 12/2007
320 Ci 2171 CCM 163 HP 01/2006 - 12/2007
323 Ci 2494 CCM 163 HP 04/2000 - 09/2000
3 Compact (E46)
Description Cylinder Capacity Horse Power Year
325 ti 2494 CCM 192 HP 04/2001 - 12/2004
320 td 1995 CCM 150 HP 09/2001 - 02/2005
320 td 1995 CCM 136 HP 10/2001 - 12/2002

The Brembo 09.7702.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 19 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 19
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 59
Centering Diameter [mm] : 75
Outer Diameter [mm] : 294
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 17.6
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.7702.1X
  • Barcode 8020584212516
  • BMW : 34211165563 34216855154 34216864056
  • BMW (BRILLIANCE) : 34211165563 34216855154 34216864056
  • BLUE PRINT : ADB114336
  • BOSCH : 0 986 478 570
  • DELPHI : BG3530C
  • FEBI BILSTEIN : 17925
  • FTE : 9072536
  • HELLA : 8DD 355 106-571
  • MEYLE : 315 523 0059
  • MEYLE : 315 523 0059/PD
  • MINTEX : MDC1384C
  • SKF : VKBD 90447 V2
  • TEXTAR : 92097300
  • TEXTAR : 92097303
  • TRW : DF4069
  • VALEO : 186861
  • VALEO : 672656
