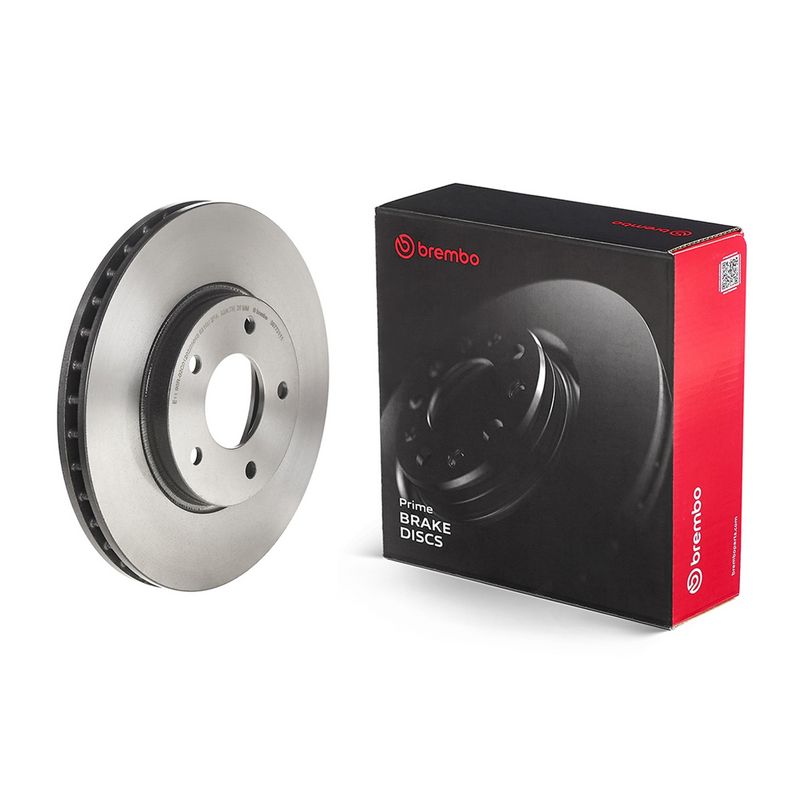

Brembo 09.7731.11 Brake Disc - 1

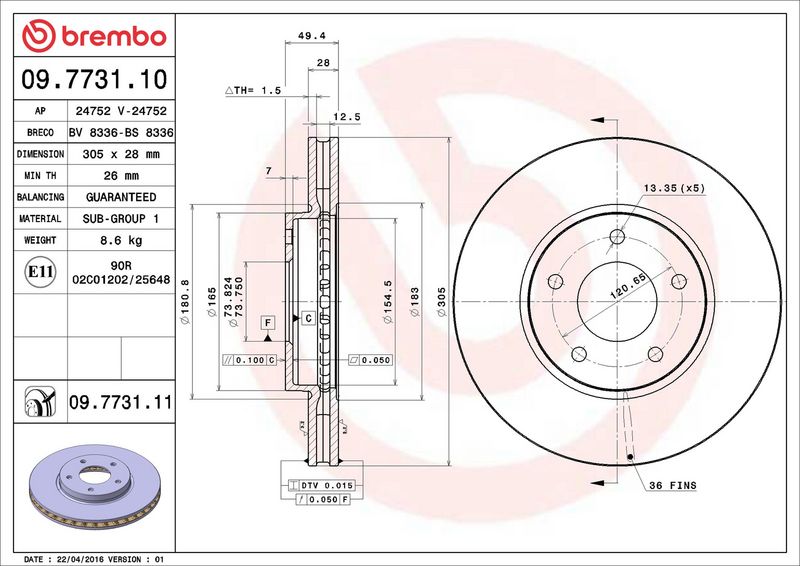

Brembo 09.7731.11 Brake Disc - 2
Brembo 09.7731.11 Brake Disc - 1
Brembo 09.7731.11 Brake Disc - 2
BREMBO

Brembo 09.7731.11 Brake Disc

SKU: 09.7731.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£56.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIMLER
DAIMLER XJ (X30_)
Description Cylinder Capacity Horse Power Year
Six 4.0 3996 CCM 284 HP 07/1997 - 12/2002
V8 Super 4.0 3996 CCM 363 HP 07/1997 - 06/2003
4.0 Long 3996 CCM 294 HP 10/1997 - 06/2003
V8 Super 4.0 3996 CCM 375 HP 07/1997 - 06/2003
JAGUAR
XJ (X308)
Description Cylinder Capacity Horse Power Year
3.2 3248 CCM 237 HP 07/1997 - 05/2003
4.0 3996 CCM 284 HP 07/1997 - 05/2003
4.0 3996 CCM 363 HP 07/1997 - 05/2003
4.0 3996 CCM 375 HP 09/1997 - 05/2003
4.0 3996 CCM 294 HP 10/1997 - 04/2003
3.2 3248 CCM 243 HP 11/1997 - 06/2003
XK 8 Coupe (X100)
Description Cylinder Capacity Horse Power Year
4.0 3996 CCM 284 HP 03/1996 - 07/2005
4.0 3996 CCM 363 HP 02/1998 - 07/2005
4.0 XKR 3996 CCM 375 HP 05/1998 - 07/2005
4.0 3996 CCM 294 HP 05/1996 - 07/2005
XK 8 Convertible (X100)
Description Cylinder Capacity Horse Power Year
4.0 3996 CCM 284 HP 03/1996 - 12/2002
4.0 3996 CCM 363 HP 02/1998 - 07/2005
4.0 XKR 3996 CCM 375 HP 05/1998 - 07/2005
4.0 3996 CCM 294 HP 05/1996 - 07/1999

The Brembo 09.7731.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 74 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 50
Centering Diameter [mm] : 74
Outer Diameter [mm] : 305
Surface : Coated
Minimum thickness [mm] : 26
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.7731.11
  • Barcode 8020584030479
  • DAIMLER : C2C41249 JLM20150 JLM21279 JLM21749
  • JAGUAR : C2C41249 JLM20150 JLM20653 JLM21279 JLM21749 MJA1791AA MXD1790AA
  • BLUE PRINT : ADJ134346
  • BORG & BECK : BBD5910S
  • BOSCH : 0 986 478 662
  • DELPHI : BG3544
  • DELPHI : BG3547
  • MEYLE : 18-15 521 0005/PD
  • MINTEX : MDC1336
  • TEXTAR : 92098900
  • TRW : DF4095
  • TRW : DF4219S
