BREMBO

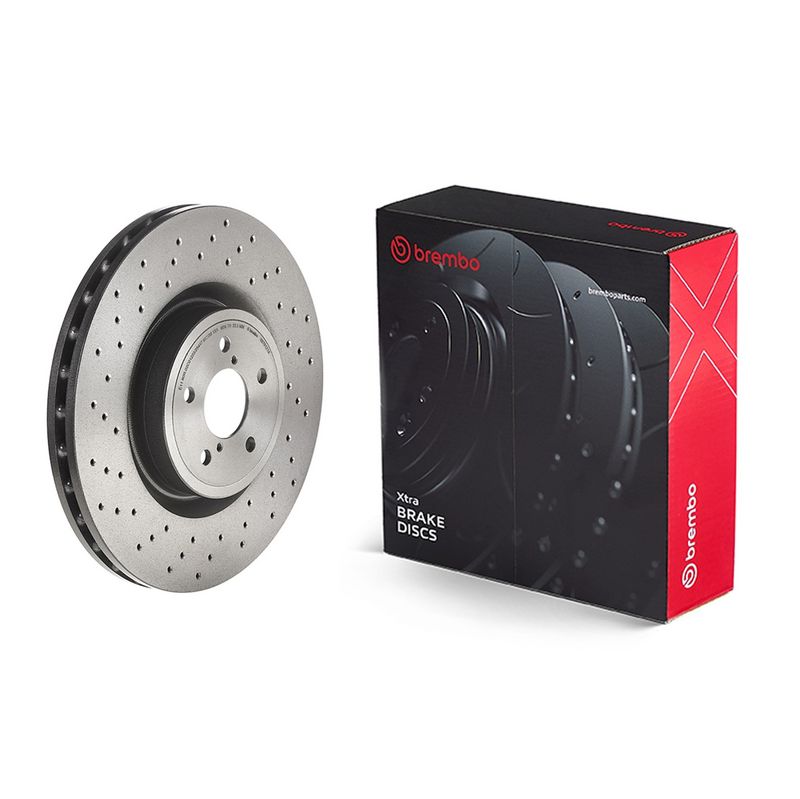

Brembo 09.7812.1X Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.7812.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£180.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUBARU

IMPREZA Saloon (GD)

Description	Cylinder Capacity	Horse Power	Year
2.0 WRX Turbo AWD (GDA)	1994 CCM	218 HP	12/2000 - 12/2005
2.0 WRX STi AWD (GDB)	1994 CCM	265 HP	11/2001 - 07/2005
2.0 WRX Turbo AWD (GDA)	1994 CCM	225 HP	12/2002 - 03/2007
2.0 WRX STi AWD	1994 CCM	320 HP	02/2004 - 07/2005
2.5 i WRX AWD (GDG)	2457 CCM	230 HP	09/2005 - 12/2008
2.0 AWD (GDA)	1994 CCM	250 HP	10/2005 - 03/2007

IMPREZA Estate (GG)

Description	Cylinder Capacity	Horse Power	Year
2.0 Turbo AWD (GGA)	1994 CCM	218 HP	12/2000 - 12/2005
2.0 WRX Turbo AWD (GGA)	1994 CCM	225 HP	12/2002 - 09/2006
2.5 WRX AWD (GGG)	2457 CCM	230 HP	09/2005 - 12/2008

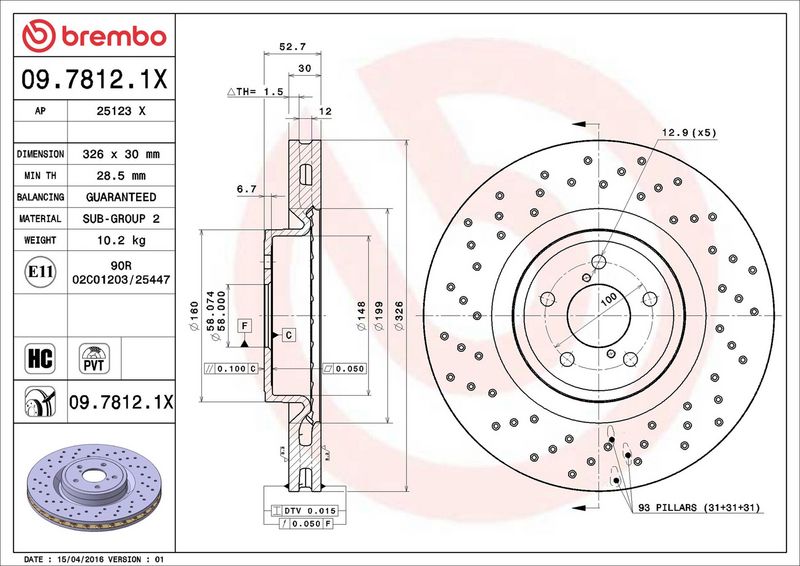

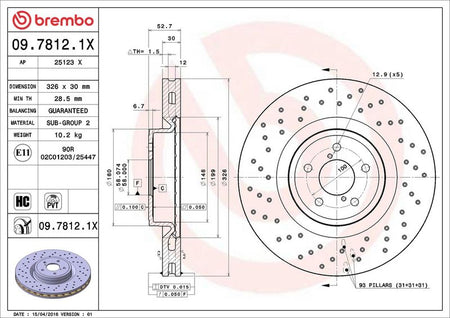

The Brembo 09.7812.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Brake Disc Thickness [mm] : 30

Number of Holes : 5

Height [mm] : 53

Centering Diameter [mm] : 58

Outer Diameter [mm] : 326

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 28.5

Tightening Torque [Nm] : 100
