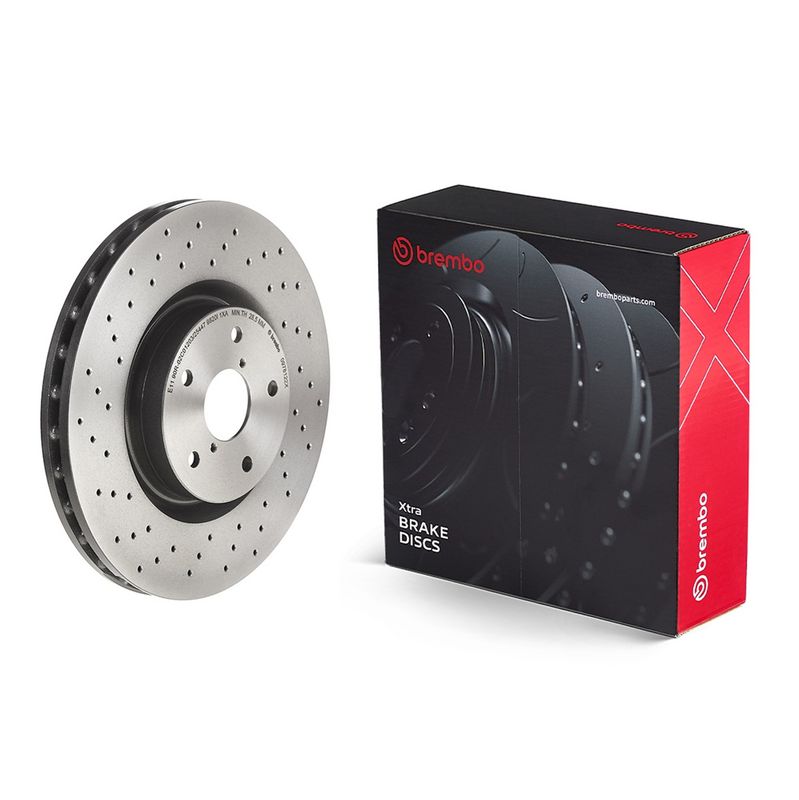

Brembo 09.7812.2X Brake Disc - 1

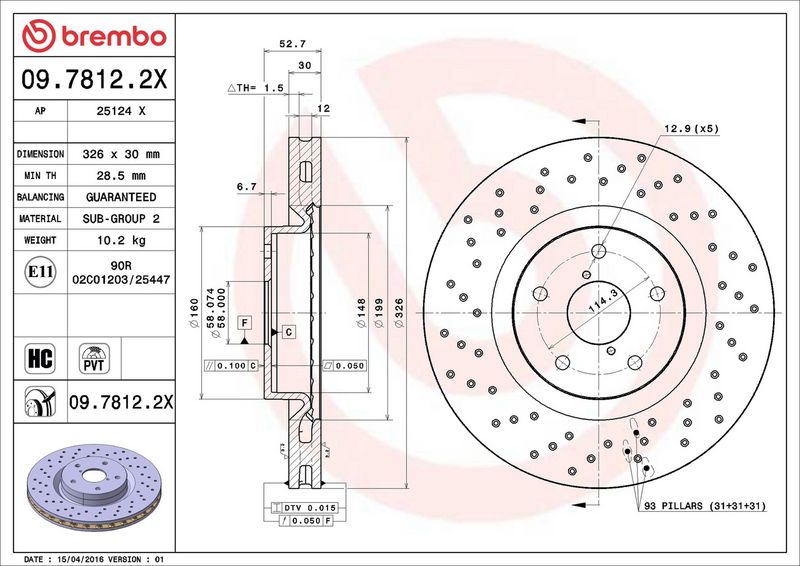

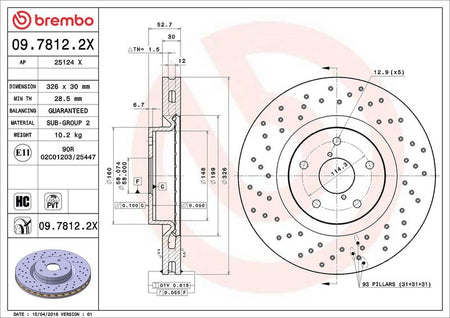

Brembo 09.7812.2X Brake Disc - 2
Brembo 09.7812.2X Brake Disc - 1
Brembo 09.7812.2X Brake Disc - 2
BREMBO

Brembo 09.7812.2X Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.7812.2X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£156.51 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUBARU
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
2.0 WRX STi AWD (GDB) 1994 CCM 265 HP 11/2001 - 07/2005
2.0 WRX STi AWD 1994 CCM 320 HP 02/2004 - 07/2005
2.5 WRX STi AWD (GDF) 2457 CCM 280 HP 09/2005 - 12/2007
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
2.5 AWD 2457 CCM 300 HP 10/2005 - 03/2007
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
2.5 WRX SE AWD (GVE, GEE) 2457 CCM 265 HP 01/2009 - 12/2014
2.5 WRX STi AWD (GVF) 2457 CCM 301 HP From 01/2011
2.5 AWD (GVB) 2457 CCM 310 HP 09/2010 - 12/2015
2.5 AWD 2457 CCM 320 HP 02/2007 - 12/2007
IMPREZA Hatchback (GR, GH, G3)
Description Cylinder Capacity Horse Power Year
2.5 WRX STi AWD (GRF) 2457 CCM 301 HP 01/2008 - 08/2013
2.5 STI CS400 AWD (GRF) 2457 CCM 400 HP 04/2010 - 08/2013
2.5 AWD 2457 CCM 310 HP 09/2010 - 08/2013
2.5 WRX S AWD 2457 CCM 255 HP 02/2009 - 12/2010
WRX Hatchback (GP)
Description Cylinder Capacity Horse Power Year
STi 2.5 AWD 2457 CCM 300 HP 10/2010 - 12/2014
WRX Saloon (GJ)
Description Cylinder Capacity Horse Power Year
STi 2.5 AWD 2457 CCM 301 HP From 06/2014
TOYOTA
GT 86 Coupe (ZN6_)
Description Cylinder Capacity Horse Power Year
2.0 (ZN6AC_, ZN6BC_, ZN6K) 1998 CCM 200 HP From 03/2012

The Brembo 09.7812.2X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 53
Centering Diameter [mm] : 58
Outer Diameter [mm] : 326
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28.5
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.7812.2X
  • Barcode 8020584217740
  • SUBARU : 26300FE070 SU00306805
  • TOYOTA : SU00306805
  • BLUE PRINT : ADS74329
  • FTE : 9071345
  • FTE : 9081283
  • HELLA : 8DD 355 117-861
  • MINTEX : MDC2335
  • TEXTAR : 92194303
  • TRW : DF4949S
