BREMBO

Brembo 09.7931.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.7931.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£97.82 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

ALTEZZA GITA Estate (_XE1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GXE10)	1988 CCM	155 HP	01/1999 - 06/2001
3.0 (JCE10)	2997 CCM	214 HP	07/2001 - 11/2005
2.0 4WD (GXE15)	1988 CCM	155 HP	01/2001 - 12/2005
2.0 (GXE10)	1988 CCM	160 HP	07/2001 - 07/2005
2.0 (GXE15)	1988 CCM	160 HP	07/2001 - 07/2005

ALTEZZA (_E1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 VVTi (SXE10)	1998 CCM	200 HP	10/1998 - 11/2005
2.0 VVTi (GXE10)	1988 CCM	160 HP	01/1999 - 05/2005
2.0 VVTi (SXE10)	1998 CCM	209 HP	02/1999 - 11/2005

ARISTO (_S16_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (JZS160)	2997 CCM	231 HP	08/1997 - 09/2004
3.0 (JZS161)	2997 CCM	280 HP	08/1997 - 09/2004

MARK II VIII Saloon (_X10_)

Description	Cylinder Capacity	Horse Power	Year
2.5 VVTi (JZX100)	2491 CCM	280 HP	10/1996 - 09/2001

MARK II IX Saloon (_X11_)

Description	Cylinder Capacity	Horse Power	Year
2.5 (JZX110)	2491 CCM	280 HP	10/2000 - 11/2004

VEROSSA (_X11_)

Description	Cylinder Capacity	Horse Power	Year
2.5 VVTi (JZX110)	2491 CCM	200 HP	10/2000 - 11/2003
2.5 VVTi (JZX110)	2491 CCM	280 HP	10/2000 - 11/2003

LEXUS

GS (JZS147_)

Description	Cylinder Capacity	Horse Power	Year
300 (JZS147_, JZS147R)	2997 CCM	212 HP	01/1993 - 08/1997

GS (_S16_)

Description	Cylinder Capacity	Horse Power	Year
300 (JZS160_, JZS160R)	2997 CCM	222 HP	08/1997 - 10/2000
400 (UZS160_, UZS160R)	3969 CCM	294 HP	12/1997 - 11/2000
430 (UZS161_, UZS161R)	4293 CCM	283 HP	11/2000 - 12/2004
300 (JZS160_, JZS160R)	2997 CCM	219 HP	10/2000 - 12/2004

IS I (_E1_)

Description	Cylinder Capacity	Horse Power	Year
200 (GXE10)	1988 CCM	155 HP	04/1999 - 07/2005
300 (JCE10)	2997 CCM	213 HP	09/2001 - 07/2005

IS SportCross (_E1_)

Description	Cylinder Capacity	Horse Power	Year
300 (JCE10_, JCE10R)	2997 CCM	213 HP	10/2001 - 10/2005
200 (GXE10_, GXE10R)	1988 CCM	155 HP	10/2002 - 10/2005

LS (_F1_)

Description	Cylinder Capacity	Horse Power	Year
400 (UCF10)	3969 CCM	245 HP	12/1989 - 12/1995

SC Convertible (UZZ40_)

Description	Cylinder Capacity	Horse Power	Year
430 (UZZ40_, UZZ40R)	4293 CCM	286 HP	05/2001 - 07/2010

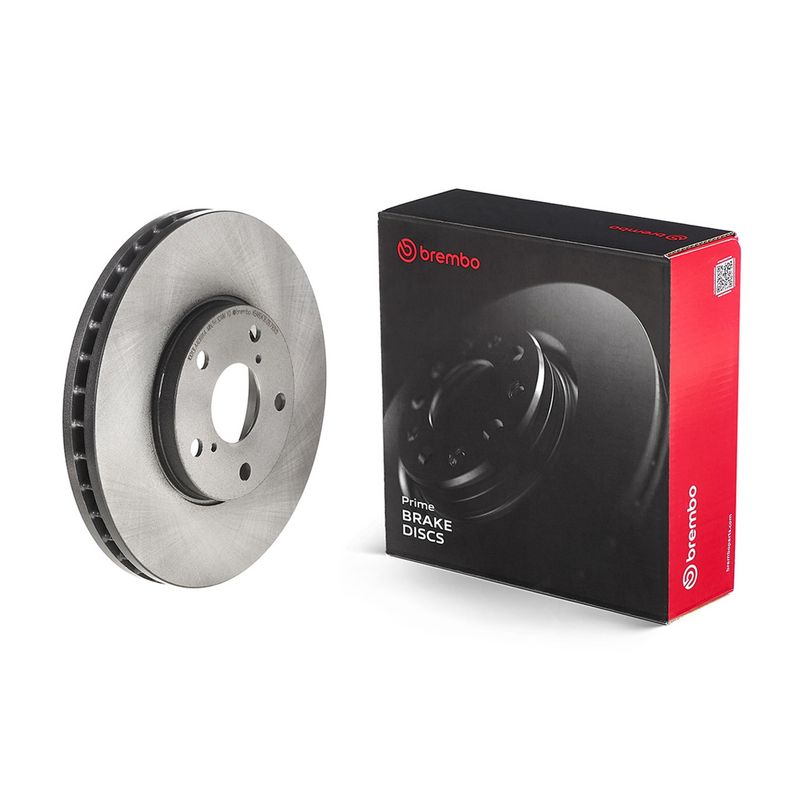

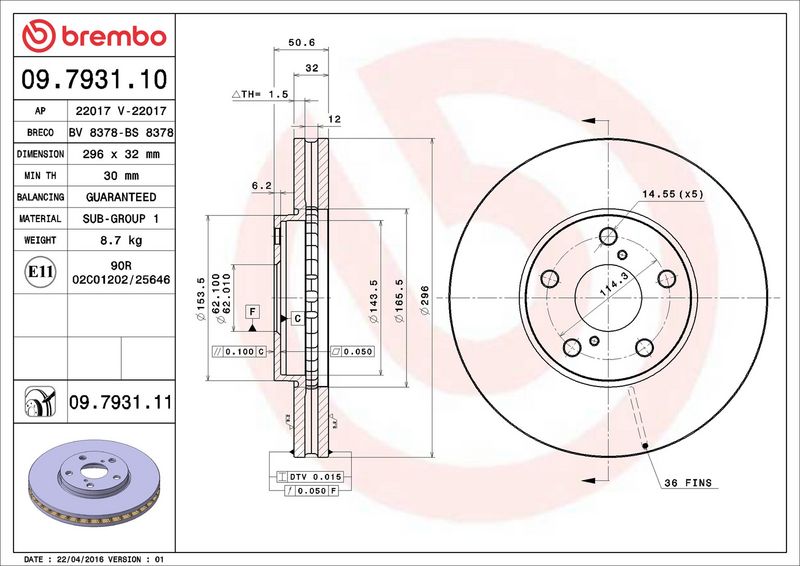

The Brembo 09.7931.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 32

Number of Holes : 5

Height [mm] : 51

Centering Diameter [mm] : 62

Outer Diameter [mm] : 296

Surface : Coated

Minimum thickness [mm] : 30

Tightening Torque [Nm] : 103
