BREMBO

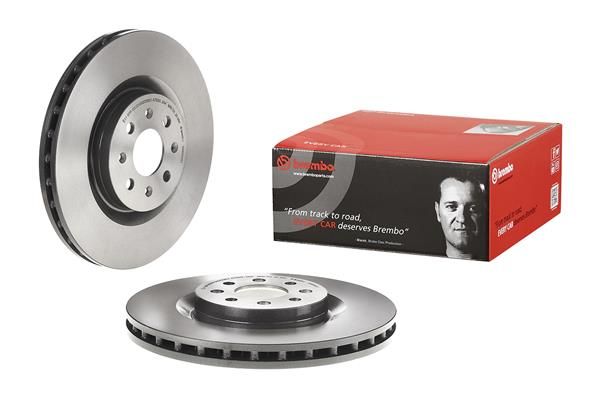

Brembo 09.8004.31 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.8004.31

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£124.48 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

ABARTH

GRANDE PUNTO

Description	Cylinder Capacity	Horse Power	Year
1.4 (199.AXN1B)	1368 CCM	155 HP	07/2007 - 06/2010
1.4 ESSEESSE / SUPERSPORT (199.AXX1B)	1368 CCM	180 HP	05/2008 - 06/2010

PUNTO EVO

Description	Cylinder Capacity	Horse Power	Year
1.4 (199.AXX1B)	1368 CCM	163 HP	10/2009 - 02/2012

PUNTO

Description	Cylinder Capacity	Horse Power	Year
1.4 SUPERSPORT (199.AXX1B)	1368 CCM	180 HP	From 03/2012

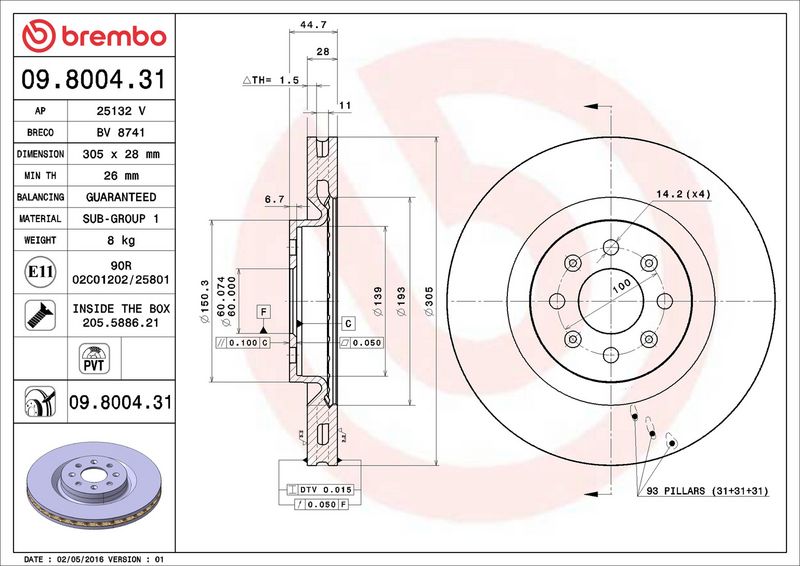

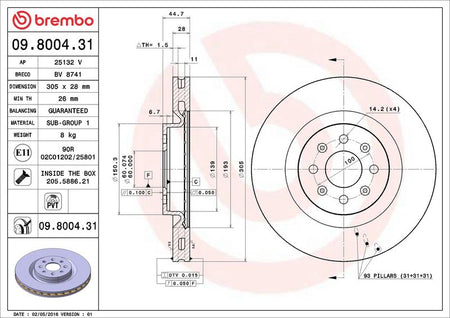

The Brembo 09.8004.31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 4 mounting holes, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 4

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 45

Centering Diameter [mm] : 60

Outer Diameter [mm] : 305

Surface : Coated

Minimum thickness [mm] : 26

Tightening Torque [Nm] : 98
