BREMBO

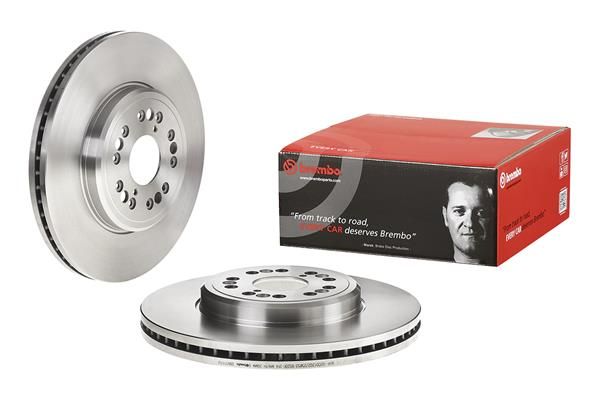

Brembo 09.8315.10 Brake Disc

SKU: 09.8315.10

Your selected vehicle

Out of stock

Out of Stock

£107.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

CELSIOR (UCF2_)

Description	Cylinder Capacity	Horse Power	Year
4.0 (UCF20, UCF21)	3969 CCM	280 HP	07/1997 - 08/2000

CENTURY (_G5_)

Description	Cylinder Capacity	Horse Power	Year
5.0 (GZG50)	4996 CCM	280 HP	04/1997 - 12/2016

LEXUS

LS (_F2_)

Description	Cylinder Capacity	Horse Power	Year
400 (UCF20_, UCF20R)	3969 CCM	264 HP	12/1994 - 08/1997
400 (UCF20_, UCF20R)	3969 CCM	284 HP	09/1997 - 10/2000
400 (UCF20_, UCF20R)	3969 CCM	276 HP	09/1998 - 10/2000
400 (UCF20_)	3969 CCM	294 HP	10/1997 - 12/2000

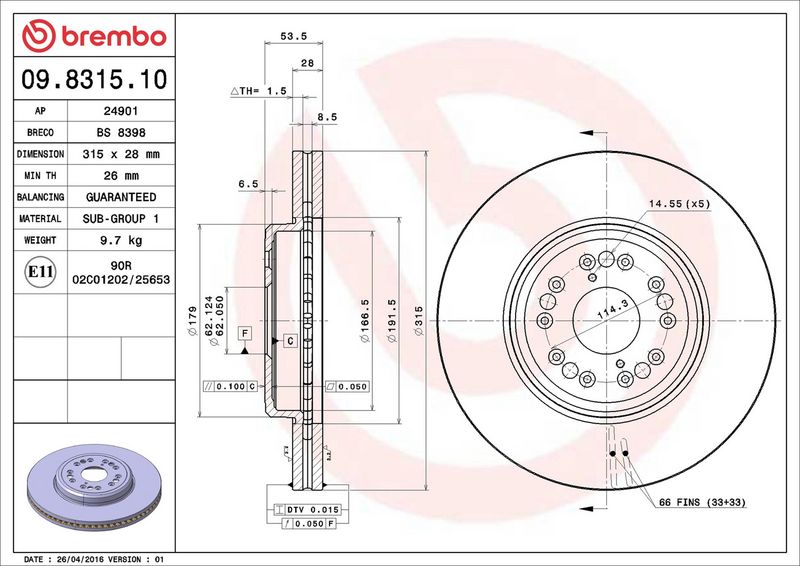

The Brembo 09.8315.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 5

Height [mm] : 54

Centering Diameter [mm] : 62

Outer Diameter [mm] : 315

Minimum thickness [mm] : 26

Tightening Torque [Nm] : 103

Brembo 09.8315.10 Brake Disc
