Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

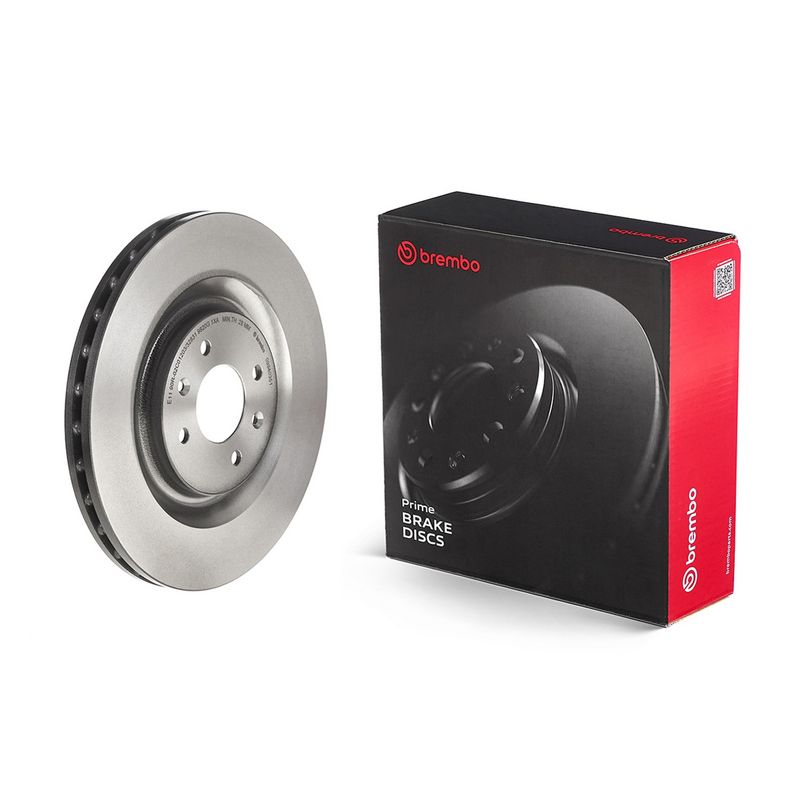

Brembo 09.8403.51 Brake Disc - 1
Brembo 09.8403.51 Brake Disc - 2
Brembo 09.8403.51 Brake Disc - 1
Brembo 09.8403.51 Brake Disc - 2
BREMBO

Brembo 09.8403.51 Brake Disc

SKU: 09.8403.51
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£72.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
DS3 (SA_)
Description Cylinder Capacity Horse Power Year
1.6 Racing 1598 CCM 203 HP 02/2011 - 07/2015
1.6 Racing 1598 CCM 207 HP 02/2011 - 07/2015
1.6 THP 150 1598 CCM 150 HP 01/2010 - 07/2015
1.4 HDi 70 (SA8HP4) 1398 CCM 68 HP 04/2010 - 07/2015
1.4 VTi 95 1397 CCM 95 HP 04/2010 - 07/2015
1.6 VTi 120 1598 CCM 120 HP 04/2010 - 07/2015
1.6 THP 155 1598 CCM 156 HP 04/2010 - 07/2015
1.6 HDi 90 1560 CCM 92 HP 11/2009 - 07/2015
1.6 HDi 110 1560 CCM 112 HP 11/2009 - 07/2015
1.6 THP160 1598 CCM 163 HP 01/2012 - 07/2015
1.4 VTi 98 1397 CCM 98 HP 11/2009 - 07/2015
1.2 VTi 82 1199 CCM 82 HP 01/2013 - 03/2015
1.4 VTi 95 LPG 1397 CCM 95 HP 08/2012 - 07/2015
1.6 HDi 115 1560 CCM 114 HP 08/2012 - 07/2015
1.6 HDi 115 1560 CCM 115 HP 10/2013 - 07/2015
DS3 Convertible
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 1199 CCM 82 HP 01/2013 - 07/2015
1.6 VTi 120 1598 CCM 120 HP 01/2013 - 07/2015
1.6 THP 155 1598 CCM 156 HP 01/2013 - 07/2015
1.6 HDi 90 1560 CCM 92 HP 01/2013 - 07/2015
1.6 THP 150 1598 CCM 150 HP 01/2013 - 07/2015
1.6 BlueHDi 120 1560 CCM 120 HP 07/2014 - 07/2015
1.6 BlueHDi 100 1560 CCM 99 HP 07/2014 - 07/2015
1.2 THP 110 1199 CCM 110 HP 10/2014 - 07/2015
1.6 Racing 1598 CCM 207 HP 03/2014 - 07/2015
1.6 THP 165 1598 CCM 165 HP 10/2014 - 07/2015
1.6 BlueHDi 115 1560 CCM 115 HP 10/2013 - 07/2015
1.6 Racing 1598 CCM 203 HP 03/2014 - 07/2015
1.6 THP 165 1598 CCM 163 HP 02/2015 - 07/2015
PEUGEOT
208 I (CA_, CC_)
Description Cylinder Capacity Horse Power Year
1.6 VTi 1598 CCM 120 HP 03/2012 - 12/2019
1.6 GTi 1598 CCM 200 HP 08/2012 - 12/2019
1.2 THP 110 1199 CCM 110 HP 01/2013 - 12/2019
1.6 GTi 1598 CCM 208 HP 10/2014 - 12/2019
DS
DS 3 (SA_)
Description Cylinder Capacity Horse Power Year
1.2 VTi 82 (SAHMZ6) 1199 CCM 82 HP 04/2015 - 07/2019
1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT) 1199 CCM 110 HP 04/2015 - 07/2019
1.6 THP 165 (SA5GZM) 1598 CCM 165 HP 07/2015 - 07/2019
1.6 BlueHDi 100 (SABHY0, SABHYT) 1560 CCM 99 HP 04/2015 - 07/2019
1.6 BlueHDi 120 (SABHZM) 1560 CCM 120 HP 07/2015 - 07/2019
1.2 THP 130 (SAHNYM) 1199 CCM 130 HP 09/2015 - 07/2019
1.6 BlueHDi 75 (SABHW6) 1560 CCM 75 HP 07/2015 - 07/2019
1.6 THP 208 (SA5GRM) 1598 CCM 208 HP 09/2015 - 07/2019
1.6 THP (SA5GZM) 1598 CCM 163 HP 07/2015 - 07/2019
1.6 THP (SA5GWM) 1598 CCM 150 HP 07/2015 - 07/2019
1.4 HDi 70 (SA8HR4, SA8HP4) 1398 CCM 68 HP 07/2015 - 12/2016
DS 3 Convertible (SB_)
Description Cylinder Capacity Horse Power Year
1.2 THP 110 1199 CCM 110 HP 07/2015 - 07/2019
1.6 THP 165 1598 CCM 165 HP 07/2015 - 07/2019
1.6 BlueHDi 100 1560 CCM 99 HP 07/2015 - 07/2019
1.6 BlueHDi 120 1560 CCM 120 HP 07/2015 - 07/2019
1.2 THP 130 1199 CCM 130 HP 09/2015 - 07/2019
1.2 VTi 82 1199 CCM 82 HP 07/2015 - 07/2019
1.6 THP 208 1598 CCM 208 HP 09/2015 - 07/2019
1.6 THP 1598 CCM 163 HP 07/2015 - 07/2019

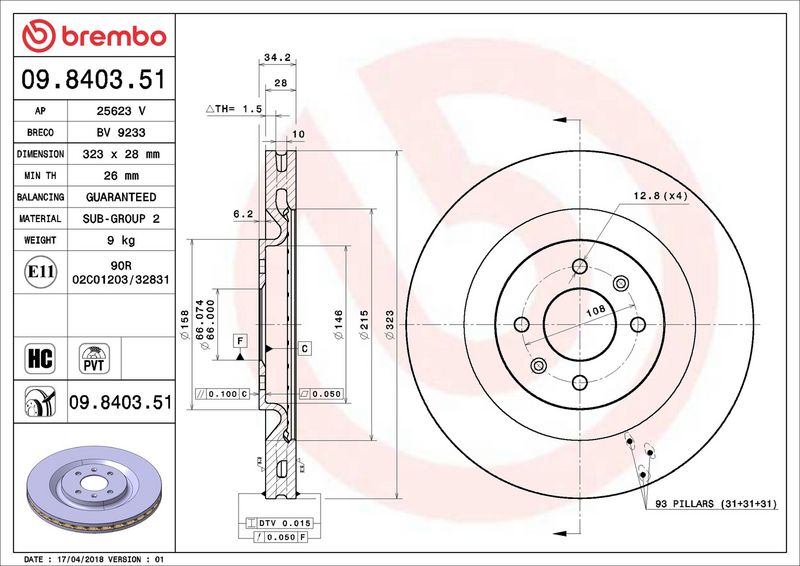

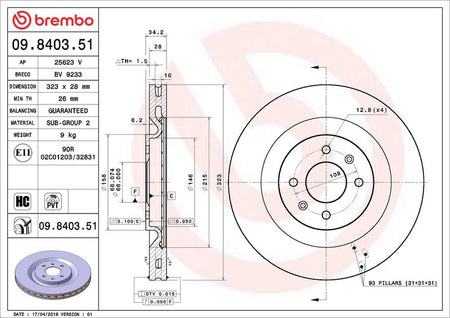

The Brembo 09.8403.51 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 4 mounting holes, and 66 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 4
Height [mm] : 34
Centering Diameter [mm] : 66
Outer Diameter [mm] : 323
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.8403.51
  • Barcode 8020584224373
  • CITROËN : 4249L6
  • PEUGEOT : 1642767080 1687779880 4249L6
  • DS : 4249L6
  • BLUE PRINT : ADP154357
  • BORG & BECK : BBD5354
  • BOSCH : 0 986 479 A90
  • DELPHI : BG4689C
  • FEBI BILSTEIN : 107225
  • FTE : 9071179
  • HELLA : 8DD 355 120-401
  • MEYLE : 11-15 521 0040/PD
  • MINTEX : MDC2599
  • National : NBD2016
  • TEXTAR : 92267103
  • VALEO : 197549
