BREMBO

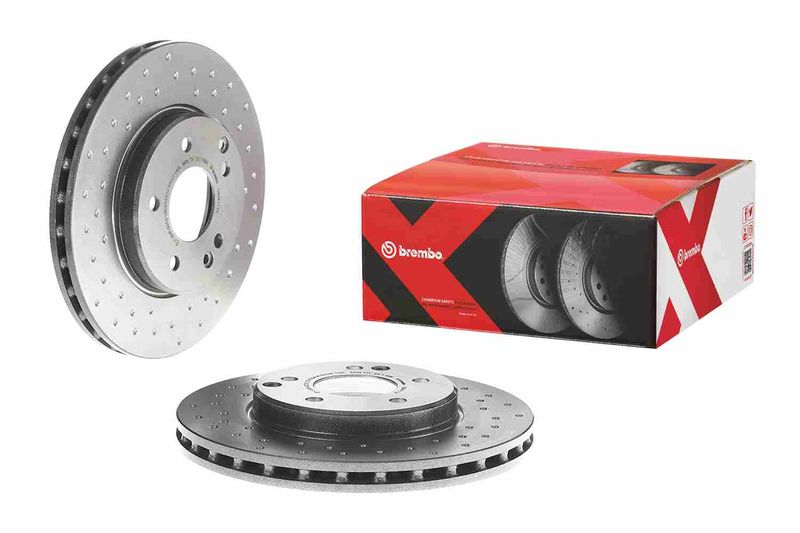

Brembo 09.8411.1X Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.8411.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£112.03 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W203)
Description Cylinder Capacity Horse Power Year
C 180 (203.035) 1998 CCM 129 HP 10/2000 - 05/2002
C 200 Kompressor (203.045) 1998 CCM 163 HP 05/2000 - 06/2002
C 200 CDI (203.004) 2148 CCM 116 HP 09/2000 - 06/2003
C 220 CDI (203.006, 203.008) 2148 CCM 143 HP 05/2000 - 02/2007
C 200 CDI (203.004) 2148 CCM 102 HP 02/2001 - 06/2003
C 180 Kompressor (203.046) 1796 CCM 143 HP 05/2002 - 02/2007
C 200 Kompressor (203.042) 1796 CCM 163 HP 05/2002 - 02/2007
C 200 CDI (203.007) 2148 CCM 122 HP 04/2003 - 02/2007
C-CLASS T-Model (S203)
Description Cylinder Capacity Horse Power Year
C 220 CDI (203.208) 2148 CCM 136 HP 08/2006 - 08/2007
C 200 Kompressor (203.245) 1998 CCM 163 HP 03/2001 - 05/2002
C 200 CDI (203.204) 2148 CCM 116 HP 03/2001 - 08/2007
C 220 CDI (203.206, 203.208) 2148 CCM 143 HP 03/2001 - 08/2007
C 180 (203.235) 1998 CCM 129 HP 03/2001 - 05/2002
C 200 CDI (203.204) 2148 CCM 102 HP 03/2001 - 08/2007
C 180 Kompressor (203.246) 1796 CCM 143 HP 05/2002 - 08/2007
C 200 Kompressor (203.242) 1796 CCM 163 HP 05/2002 - 08/2007
C-CLASS Coupe (CL203)
Description Cylinder Capacity Horse Power Year
C 180 (203.735) 1998 CCM 129 HP 03/2001 - 05/2002
C 200 Kompressor (203.745) 1998 CCM 163 HP 03/2001 - 05/2002
C 220 CDI (203.706) 2148 CCM 143 HP 03/2001 - 01/2004
C 230 Kompressor (203.747) 2295 CCM 197 HP 03/2001 - 05/2002
C 180 Kompressor (203.746) 1796 CCM 143 HP 05/2002 - 05/2008
C 200 Kompressor (203.742) 1796 CCM 163 HP 05/2002 - 05/2008
C 230 Kompressor (203.740) 1796 CCM 192 HP 05/2002 - 05/2008
C 200 CGI Kompressor (203.743) 1796 CCM 170 HP 03/2003 - 05/2008
C 200 CDI (203.707) 2148 CCM 122 HP 03/2003 - 05/2008
C 220 CDI (203.708) 2148 CCM 150 HP 02/2004 - 05/2008
CLC-CLASS (CL203)
Description Cylinder Capacity Horse Power Year
CLC 180 Kompressor (203.746) 1796 CCM 143 HP 05/2008 - 06/2011
CLC 200 CDI (203.707) 2148 CCM 122 HP 05/2008 - 06/2011
CLC 220 CDI (203.708) 2148 CCM 150 HP 05/2008 - 06/2011
CLC 160 (203.731) 1597 CCM 129 HP 02/2009 - 06/2011
CLK (C208)
Description Cylinder Capacity Horse Power Year
CLK 200 (208.335) 1998 CCM 136 HP 06/1997 - 06/2002
CLK 230 Kompressor (208.347) 2295 CCM 193 HP 06/1997 - 06/2000
CLK 200 Kompressor (208.345) 1998 CCM 192 HP 06/1997 - 06/2000
CLK 200 Kompressor (208.344) 1998 CCM 163 HP 06/2000 - 06/2002
CLK 230 Kompressor (208.348) 2295 CCM 197 HP 06/2000 - 06/2002
CLK Convertible (A208)
Description Cylinder Capacity Horse Power Year
CLK 200 (208.435) 1998 CCM 136 HP 03/1998 - 03/2002
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 200 Kompressor (209.342) 1796 CCM 163 HP 09/2002 - 05/2009
CLK 200 CGI (209.343) 1796 CCM 170 HP 07/2003 - 05/2009
CLK 220 CDI (209.308) 2148 CCM 150 HP 01/2005 - 05/2009
CLK Convertible (A209)
Description Cylinder Capacity Horse Power Year
CLK 200 Kompressor (209.442) 1796 CCM 163 HP 02/2003 - 03/2010
CLK 200 CGI (209.343) 1796 CCM 170 HP 07/2003 - 03/2010
SLK (R171)
Description Cylinder Capacity Horse Power Year
200 Kompressor (171.442) 1796 CCM 163 HP 03/2004 - 02/2011

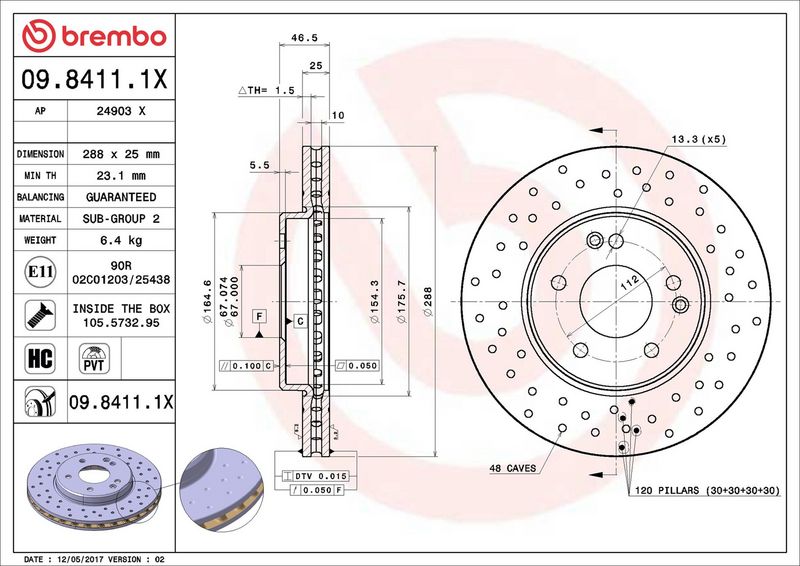

The Brembo 09.8411.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 47
Centering Diameter [mm] : 67
Outer Diameter [mm] : 288
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23.1
Tightening Torque [Nm] : 110
  • Vendor BREMBO
  • SKU 09.8411.1X
  • Barcode 8020584212554
  • MERCEDES-BENZ : 2034210312 A2034210312
  • BLUE PRINT : ADU174311
  • BOSCH : 0 986 478 624
  • BOSCH : 0 986 479 R69
  • DELPHI : BG3240C
  • FEBI BILSTEIN : 18886
  • FTE : 9072018
  • HELLA : 8DD 355 107-481
  • MEYLE : 015 521 2035
  • MEYLE : 083 521 2035/PD
  • MINTEX : MDC852
  • MINTEX : MDC852C
  • TEXTAR : 92105905
  • TRW : DF4180
  • VALEO : 186864
  • VALEO : 672922
