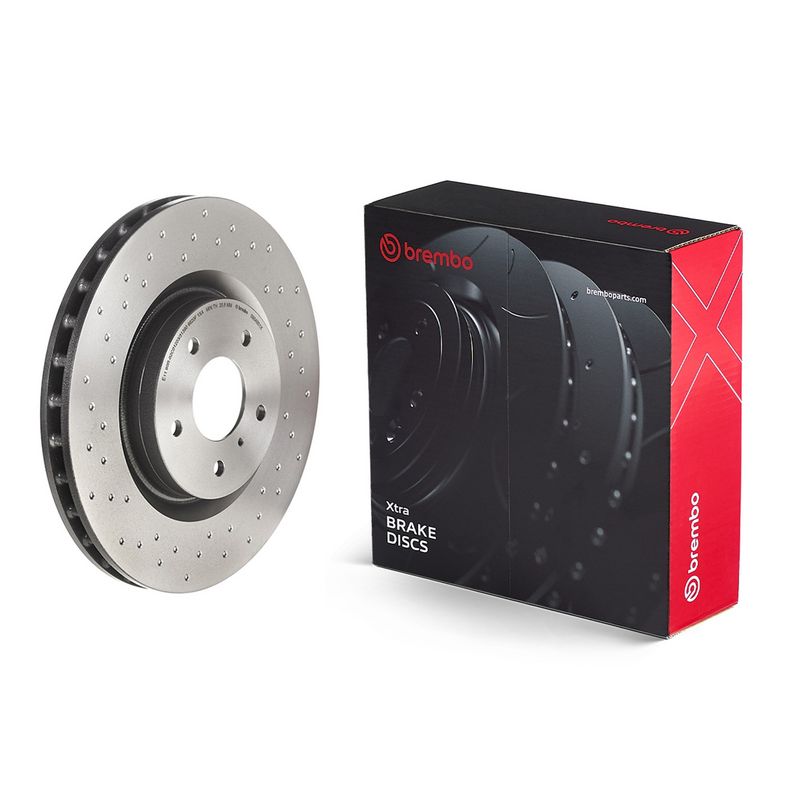

Brembo 09.8485.1X Brake Disc - 1

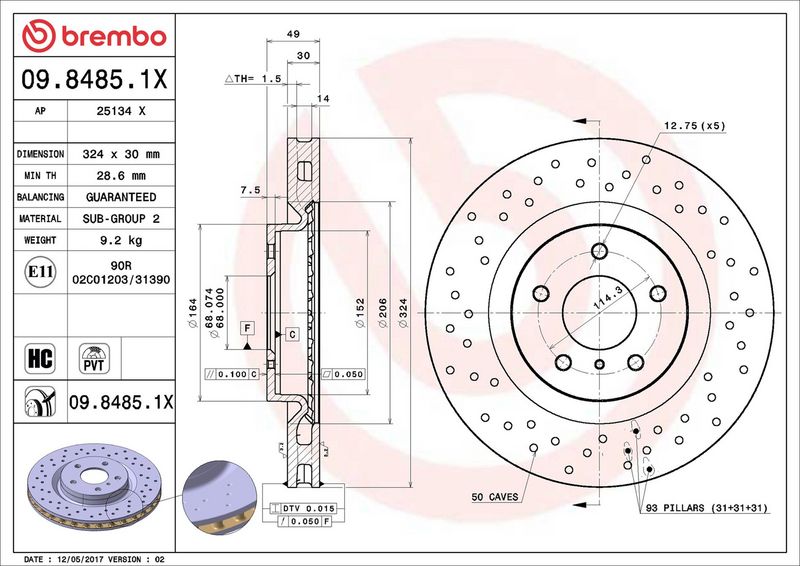

Brembo 09.8485.1X Brake Disc - 2
Brembo 09.8485.1X Brake Disc - 1
Brembo 09.8485.1X Brake Disc - 2
BREMBO

Brembo 09.8485.1X Brake Disc

SKU: 09.8485.1X
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£212.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
350Z Coupe (Z33)
Description Cylinder Capacity Horse Power Year
3.5 (AAZ33) 3498 CCM 280 HP 10/2003 - 12/2006
3.5 (AAZ33) 3498 CCM 301 HP 09/2002 - 12/2008
3.5 3498 CCM 291 HP 11/2004 - 01/2007
3.5 (BAZ33) 3498 CCM 313 HP 09/2005 - 12/2008
350Z Roadster (Z33)
Description Cylinder Capacity Horse Power Year
3.5 (AAZ33) 3498 CCM 280 HP 03/2005 - 12/2007
3.5 (AAZ33) 3498 CCM 301 HP 11/2004 - 01/2007
3.5 (BAZ33) 3498 CCM 313 HP 09/2005 - 12/2009

The Brembo 09.8485.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 68
Outer Diameter [mm] : 324
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28.6
Tightening Torque [Nm] : 108
  • Vendor BREMBO
  • SKU 09.8485.1X
  • Barcode 8020584217795
  • NISSAN : 40206CD000 40206CD005
  • BLUE PRINT : ADN143109
  • HELLA : 8DD 355 120-271
  • MINTEX : MDC2561
  • TEXTAR : 92194203
  • TRW : DF6480
