Brembo 09.8601.11 Brake Disc - 1
Brembo 09.8601.11 Brake Disc - 2
Brembo 09.8601.11 Brake Disc - 1
Brembo 09.8601.11 Brake Disc - 2
BREMBO

Brembo 09.8601.11 Brake Disc

SKU: 09.8601.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£64.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
COMBO Tour
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 87 HP 10/2001 - 09/2006
1.7 DI 16V 1686 CCM 65 HP 10/2001 - 06/2004
1.7 DTI 16V 1686 CCM 75 HP 10/2001 - 06/2004
1.4 1364 CCM 90 HP 10/2004 - 12/2011
1.3 CDTI 16V 1248 CCM 69 HP 06/2004 - 01/2011
1.3 CDTI 16V 1248 CCM 75 HP 10/2005 - 12/2011
1.7 CDTI 16V 1686 CCM 101 HP 07/2004 - 12/2011
1.6 CNG 1598 CCM 97 HP 04/2005 - 01/2011
COMBO Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.7 DI 16V 1686 CCM 65 HP From 10/2001
1.6 1598 CCM 87 HP From 10/2001
1.7 DTI 16V 1686 CCM 75 HP From 10/2001
1.4 16V 1364 CCM 90 HP From 08/2005
1.3 CDTI 16V 1248 CCM 69 HP From 08/2005
1.3 CDTI 16V 1248 CCM 75 HP 10/2005 - 12/2012
CORSA C (X01)
Description Cylinder Capacity Horse Power Year
1.8 (F08, F68) 1796 CCM 125 HP 09/2000 - 12/2009
1.7 DTI (F08, F68) 1686 CCM 75 HP 09/2000 - 12/2009
1.4 (F08, F68) 1389 CCM 90 HP 09/2000 - 12/2009
1.3 CDTI (F08, F68) 1248 CCM 70 HP 06/2003 - 12/2009
1.4 Twinport (F08, F68) 1364 CCM 90 HP 06/2003 - 12/2009
CORSA C Hatchback Van (X01)
Description Cylinder Capacity Horse Power Year
1.7 DTI 16V (F08, W5L) 1686 CCM 75 HP 09/2000 - 07/2003
1.3 CDTI 16V (F08, W5L) 1248 CCM 69 HP 07/2005 - 06/2006
MERIVA A MPV (X03)
Description Cylinder Capacity Horse Power Year
1.4 16V Twinport LPG (E75) 1364 CCM 90 HP 07/2004 - 05/2010
1.6 (E75) 1598 CCM 87 HP 05/2003 - 05/2010
1.4 16V Twinport (E75) 1364 CCM 90 HP 07/2004 - 05/2010
TIGRA TwinTop (X04)
Description Cylinder Capacity Horse Power Year
1.4 (R97) 1364 CCM 90 HP 06/2004 - 12/2010
1.8 (R97) 1796 CCM 125 HP 06/2004 - 12/2010
1.3 CDTI (R97) 1248 CCM 69 HP 06/2004 - 12/2010
VAUXHALL
COMBO TOUR Mk II (C) (F25)
Description Cylinder Capacity Horse Power Year
1.4 1364 CCM 90 HP 10/2004 - 09/2010
1.6 1598 CCM 87 HP 10/2001 - 06/2004
1.3 CDTI 16V 1248 CCM 69 HP 09/2004 - 09/2006
1.3 CDTI 16V 1248 CCM 75 HP 07/2006 - 02/2012
1.7 DI 16V 1686 CCM 65 HP 09/2001 - 06/2004
1.7 DTI 16V 1686 CCM 75 HP 10/2001 - 02/2012
COMBO Mk II (C) Box Body/MPV (F25)
Description Cylinder Capacity Horse Power Year
1.3 CDTI 16V 1248 CCM 69 HP 09/2004 - 02/2012
1.4 16V 1389 CCM 90 HP 10/2001 - 05/2007
1.7 DI 16V 1686 CCM 65 HP 09/2001 - 11/2011
1.6 1598 CCM 87 HP 10/2001 - 11/2011
1.7 DTI 16V 1686 CCM 75 HP 10/2001 - 11/2011
1.4 i 16V 1364 CCM 90 HP 01/2004 - 11/2011
1.3 CDTI 16V 1248 CCM 75 HP 10/2005 - 11/2011
1.6 1598 CCM 84 HP 09/2001 - 10/2004
CORSA Mk II (C) (X01)
Description Cylinder Capacity Horse Power Year
1.4 Twinport (F08, F68) 1364 CCM 90 HP 06/2003 - 10/2006
1.8 16V (F08, F68) 1796 CCM 125 HP 08/2000 - 09/2006
1.7 DTI 16V (F08, F68) 1686 CCM 75 HP 08/2000 - 09/2006
1.4 16V (F08, F68) 1389 CCM 90 HP 09/2000 - 10/2006
1.3 CDTI 16V (F08, F68) 1248 CCM 69 HP 10/2003 - 04/2007
CORSAVAN Mk II (C) Hatchback Van (X01)
Description Cylinder Capacity Horse Power Year
1.7 DTI 16V (F08) 1686 CCM 75 HP 09/2000 - 06/2006
1.3 CDTI 16V (F08) 1248 CCM 70 HP 04/2004 - 06/2006
1.4 (F08) 1364 CCM 89 HP 11/2003 - 06/2006
MERIVA A (X03)
Description Cylinder Capacity Horse Power Year
1.6 i 1598 CCM 87 HP 01/2003 - 06/2010
1.4 16V Twinport 1364 CCM 90 HP 01/2003 - 06/2010
TIGRA TwinTop (X04)
Description Cylinder Capacity Horse Power Year
1.4 1364 CCM 90 HP 06/2004 - 08/2009
1.8 1796 CCM 125 HP 06/2004 - 08/2009
1.3 CDTI 1248 CCM 69 HP 06/2004 - 08/2009

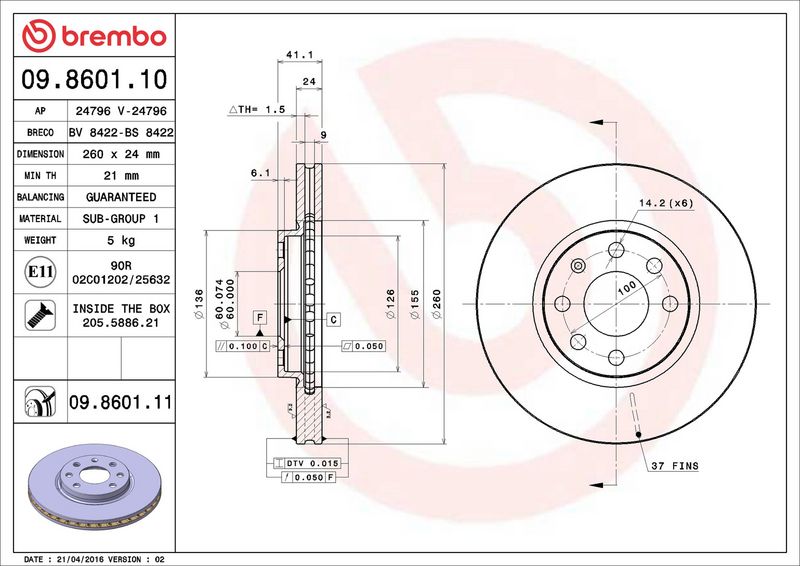

The Brembo 09.8601.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 4 mounting holes, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 41
Centering Diameter [mm] : 60
Outer Diameter [mm] : 260
Surface : Coated
Minimum thickness [mm] : 21
Tightening Torque [Nm] : 110
  • Vendor BREMBO
  • SKU 09.8601.11
  • Barcode 8020584211434
  • OPEL : 569000 9127967 9196050 95526646
  • VAUXHALL : 9196050 95526646
  • BLUE PRINT : ADW194327
  • BORG & BECK : BBD4253
  • BOSCH : 0 986 478 730
  • BOSCH : 0 986 479 B46
  • DELPHI : BG3569
  • DELPHI : BG3569C
  • FEBI BILSTEIN : 19509
  • FTE : 9072597
  • FTE : 9082761
  • HELLA : 8DD 355 108-271
  • MEYLE : 615 521 6016
  • MINTEX : MDC1455C
  • SKF : VKBD 80324 V2
  • TEXTAR : 92111103
  • TRW : DF4165
  • VALEO : 186759
  • VALEO : 672658
