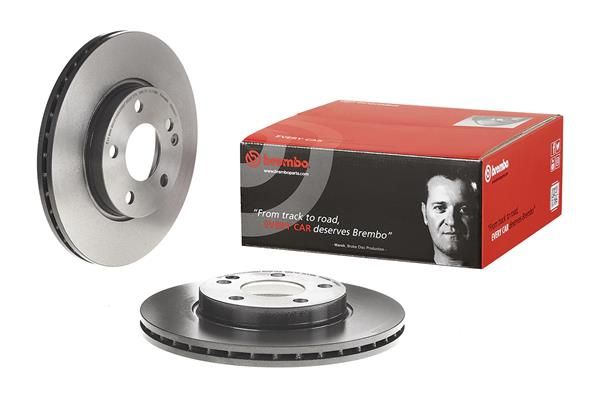

Brembo 09.8680.11 Brake Disc - 1

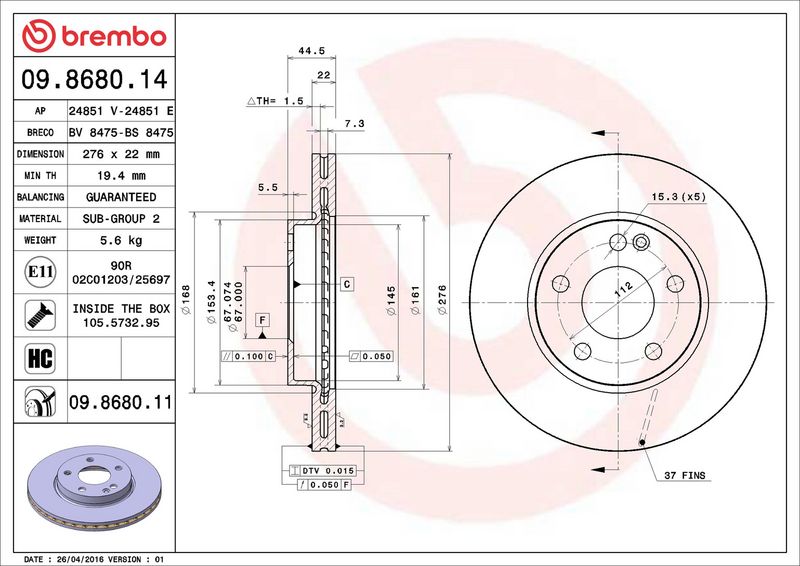

Brembo 09.8680.11 Brake Disc - 2
Brembo 09.8680.11 Brake Disc - 1

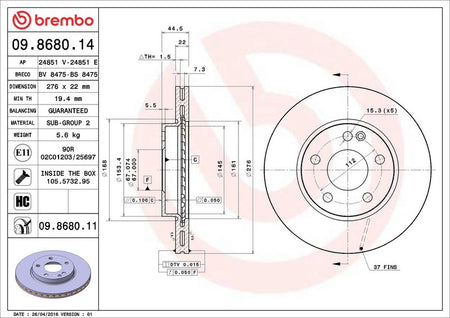

Brembo 09.8680.11 Brake Disc - 2
BREMBO

Brembo 09.8680.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.8680.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£67.08 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
A 170 (169.032, 169.332) 1699 CCM 116 HP 09/2004 - 06/2012
A 200 (169.033, 169.333) 2034 CCM 136 HP 09/2004 - 06/2012
A 160 CDI (169.006, 169.306) 1991 CCM 82 HP 09/2004 - 06/2012
A 180 CDI (169.007, 169.307) 1991 CCM 109 HP 09/2004 - 06/2012
A 180 (169.032, 169.332) 1699 CCM 116 HP 04/2009 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 170 (245.232) 1699 CCM 116 HP 03/2005 - 11/2011
B 150 (245.231) 1498 CCM 95 HP 03/2005 - 11/2011
B 160 (245.231) 1498 CCM 95 HP 04/2009 - 11/2011
B 180 (245.232) 1699 CCM 116 HP 04/2009 - 11/2011

The Brembo 09.8680.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 45
Centering Diameter [mm] : 67
Outer Diameter [mm] : 276
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.8680.11
  • Barcode 8020584024133
  • MERCEDES-BENZ : 1694210112 1694210812 A1694210112 A1694210812
  • BLUE PRINT : ADU174328
  • BORG & BECK : BBD4485
  • BOSCH : 0 986 479 186
  • DELPHI : BG3845
  • DELPHI : BG3845C
  • FEBI BILSTEIN : 28635
  • FTE : 9072081
  • HELLA : 8DD 355 111-061
  • MEYLE : 015 521 0038
  • MEYLE : 015 521 0038/PD
  • MINTEX : MDC1752C
  • SKF : VKBD 80063 V2
  • TEXTAR : 92131903
  • TRW : DF4393
  • VALEO : 186799
  • VALEO : 672529
