BREMBO

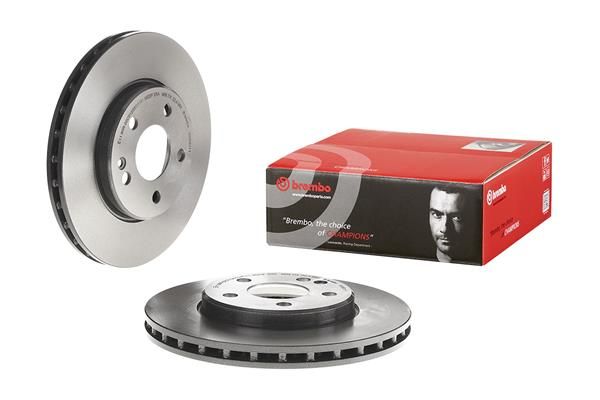

Brembo 09.8681.11 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.8681.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£67.15 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
E-CELL (169.090) 68 HP 12/2010 - 06/2012
A 200 CDI (169.308, 169.008) 1991 CCM 136 HP 09/2004 - 06/2012
A 200 CDI (169.008, 169.308) 1991 CCM 140 HP 09/2004 - 06/2012
A 200 TURBO (169.034, 169.334) 2034 CCM 193 HP 09/2005 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 180 CDI (245.207) 1991 CCM 109 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 140 HP 03/2005 - 11/2011
B 200 (245.233) 2034 CCM 136 HP 03/2005 - 11/2011
B 200 TURBO (245.234) 2034 CCM 193 HP 03/2005 - 11/2011
B 170 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 180 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 200 CDI (245.208) 1991 CCM 136 HP 03/2005 - 11/2011

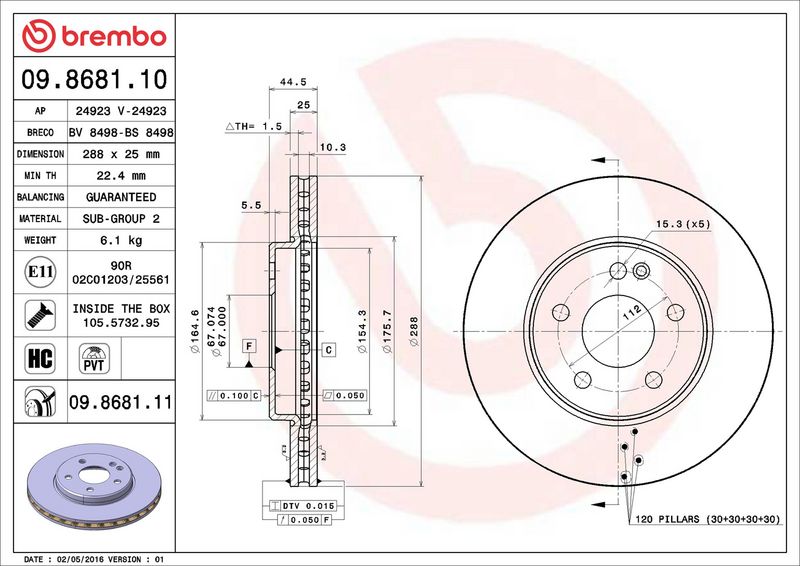

The Brembo 09.8681.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 45
Centering Diameter [mm] : 67
Outer Diameter [mm] : 288
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.8681.11
  • Barcode 8020584026816
  • MERCEDES-BENZ : 1694210212 1694211112 A1694210212 A1694211112
  • BLUE PRINT : ADU174330
  • BORG & BECK : BBD4486
  • BOSCH : 0 986 479 234
  • DELPHI : BG3909
  • FEBI BILSTEIN : 24749
  • HELLA : 8DD 355 111-081
  • MEYLE : 015 521 2078
  • MEYLE : 083 521 2078/PD
  • MINTEX : MDC1845
  • SKF : VKBD 80062 V2
  • TEXTAR : 92132003
  • TEXTAR : 92132005
  • TRW : DF4454
  • VALEO : 197091
  • VALEO : 672741
