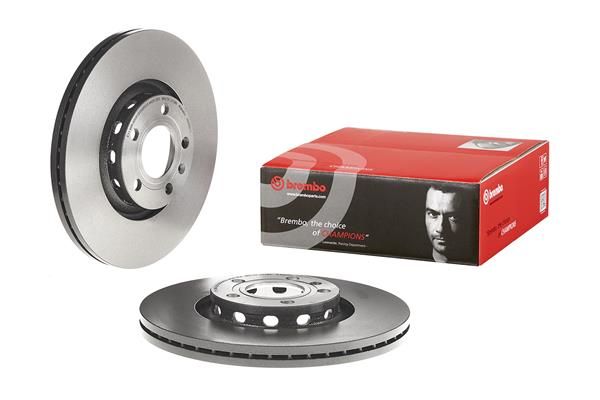

Brembo 09.8690.11 Brake Disc

SKU: 09.8690.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£108.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A4 B6 Avant (8E5)
Description Cylinder Capacity Horse Power Year
1.6 1595 CCM 102 HP 09/2001 - 12/2004
2.0 1984 CCM 130 HP 09/2001 - 12/2004
1.8 T 1781 CCM 150 HP 09/2001 - 07/2002
3.0 2976 CCM 220 HP 09/2001 - 12/2004
1.9 TDI 1896 CCM 130 HP 09/2001 - 12/2004
2.4 2393 CCM 170 HP 09/2001 - 12/2004
2.5 TDI quattro 2496 CCM 180 HP 09/2001 - 12/2004
2.5 TDI 2496 CCM 155 HP 09/2001 - 07/2002
1.8 T quattro 1781 CCM 150 HP 09/2001 - 07/2002
3.0 quattro 2976 CCM 220 HP 09/2001 - 12/2004
1.9 TDI 1896 CCM 101 HP 11/2001 - 12/2004
1.9 TDI quattro 1896 CCM 130 HP 11/2001 - 12/2004
2.0 FSI 1984 CCM 150 HP 07/2002 - 12/2004
1.8 T 1781 CCM 163 HP 07/2002 - 12/2004
1.8 T quattro 1781 CCM 163 HP 07/2002 - 12/2004
A4 B6 (8E2)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 150 HP 09/2001 - 05/2004
2.0 1984 CCM 130 HP 11/2000 - 12/2004
1.8 T quattro 1781 CCM 150 HP 11/2000 - 07/2002
3.0 2976 CCM 220 HP 11/2000 - 12/2004
3.0 quattro 2976 CCM 220 HP 11/2000 - 12/2004
1.9 TDI 1896 CCM 130 HP 11/2000 - 12/2004
2.5 TDI quattro 2496 CCM 180 HP 11/2000 - 12/2004
1.6 1595 CCM 102 HP 11/2000 - 12/2004
2.5 TDI 2496 CCM 155 HP 08/2001 - 07/2002
1.9 TDI 1896 CCM 101 HP 05/2001 - 12/2004
2.4 2393 CCM 170 HP 09/2001 - 12/2004
2.0 FSI 1984 CCM 150 HP 07/2002 - 12/2004
1.9 TDI quattro 1896 CCM 130 HP 11/2001 - 12/2004
1.8 T 1781 CCM 163 HP 07/2002 - 12/2004
1.8 T quattro 1781 CCM 163 HP 07/2002 - 12/2004
A4 B6 Convertible (8H7)
Description Cylinder Capacity Horse Power Year
2.4 2393 CCM 170 HP 04/2002 - 12/2005
3.0 2976 CCM 220 HP 04/2002 - 12/2005
2.4 2393 CCM 163 HP 04/2002 - 12/2005
2.5 TDI 2496 CCM 163 HP 08/2002 - 12/2005
1.8 T 1781 CCM 163 HP 07/2002 - 12/2005
1.8 T quattro 1781 CCM 163 HP 05/2003 - 12/2005
3.0 quattro 2976 CCM 220 HP 05/2003 - 12/2005
2.0 1984 CCM 130 HP 09/2004 - 12/2005
3.0 2976 CCM 218 HP 04/2002 - 12/2005
A4 B7 Convertible (8HE)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 01/2006 - 03/2009
2.0 TFSI 16V 1984 CCM 200 HP 01/2006 - 03/2009
1.8 T 1781 CCM 163 HP 01/2006 - 03/2009
A4 B7 (8EC)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 200 HP 11/2004 - 06/2008
2.0 TFSI quattro 1984 CCM 200 HP 11/2004 - 06/2008
3.2 FSI 3123 CCM 255 HP 01/2005 - 06/2008
3.2 FSI quattro 3123 CCM 255 HP 01/2005 - 06/2008
2.0 TDI 16V 1968 CCM 140 HP 11/2004 - 06/2008
1.8 T 1781 CCM 163 HP 11/2004 - 06/2008
1.8 T quattro 1781 CCM 163 HP 11/2004 - 06/2008
2.0 1984 CCM 130 HP 11/2004 - 06/2008
2.5 TDI 2496 CCM 163 HP 11/2004 - 05/2006
2.0 TFSI 1984 CCM 220 HP 06/2005 - 06/2008
A4 B7 Avant (8ED)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 130 HP 11/2004 - 06/2008
1.8 T 1781 CCM 163 HP 11/2004 - 06/2008
1.8 T quattro 1781 CCM 163 HP 11/2004 - 06/2008
2.0 TFSI 1984 CCM 200 HP 11/2004 - 06/2008
2.0 TFSI quattro 1984 CCM 200 HP 11/2004 - 06/2008
3.2 FSI 3123 CCM 255 HP 01/2005 - 06/2008
3.2 FSI quattro 3123 CCM 255 HP 01/2005 - 06/2008
2.5 TDI 2496 CCM 163 HP 11/2004 - 05/2006
A6 C5 (4B2, 4B4)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 150 HP 01/1997 - 01/2005
1.8 T quattro 1781 CCM 150 HP 02/1997 - 01/2005
2.4 2393 CCM 165 HP 02/1997 - 01/2005
2.4 quattro 2393 CCM 165 HP 02/1997 - 01/2005
1.9 TDI 1896 CCM 110 HP 04/1997 - 10/2000
2.5 TDI 2496 CCM 150 HP 07/1997 - 01/2005
2.8 2771 CCM 193 HP 02/1997 - 01/2005
2.8 quattro 2771 CCM 193 HP 02/1997 - 01/2005
2.5 TDI quattro 2496 CCM 150 HP 07/1997 - 01/2005
1.8 1781 CCM 125 HP 07/1997 - 01/2005
2.7 T 2671 CCM 230 HP 02/1999 - 01/2005
2.7 T quattro 2671 CCM 230 HP 12/1997 - 01/2005
1.8 T quattro 1781 CCM 180 HP 12/1997 - 01/2005
2.4 2393 CCM 136 HP 07/1998 - 01/2005
A6 C5 Avant (4B5, 4B6)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 110 HP 02/1998 - 04/2001
1.8 1781 CCM 125 HP 12/1997 - 01/2005
2.8 quattro 2771 CCM 193 HP 12/1997 - 01/2005
1.8 T 1781 CCM 150 HP 12/1997 - 01/2005
2.4 2393 CCM 165 HP 12/1997 - 01/2005
2.8 2771 CCM 193 HP 12/1997 - 01/2005
1.8 T quattro 1781 CCM 150 HP 12/1997 - 01/2005
2.4 quattro 2393 CCM 165 HP 12/1997 - 01/2005
2.5 TDI 2496 CCM 150 HP 12/1997 - 01/2005
2.5 TDI quattro 2496 CCM 150 HP 12/1997 - 01/2005
2.4 2393 CCM 136 HP 07/1998 - 01/2005
1.8 T quattro 1781 CCM 180 HP 12/1997 - 01/2005
SEAT
EXEO (3R2)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 150 HP 12/2008 - 05/2010
2.0 TDI 1968 CCM 170 HP 02/2009 - 05/2013
1.8 TSI 1798 CCM 160 HP 05/2010 - 05/2013
EXEO ST (3R5)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 150 HP 06/2009 - 05/2010
2.0 TDI 1968 CCM 170 HP 05/2009 - 05/2013
1.8 TSI 1798 CCM 160 HP 05/2010 - 05/2013
SKODA
SUPERB I (3U4)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 150 HP 12/2001 - 03/2008
2.8 V6 2771 CCM 193 HP 12/2001 - 03/2008
2.5 TDI 2496 CCM 155 HP 12/2001 - 08/2003
2.5 TDI 2496 CCM 163 HP 06/2003 - 03/2008
2.0 TDI 1968 CCM 140 HP 10/2005 - 03/2008
VW
PASSAT B5.5 Estate (3B6)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 101 HP 11/2000 - 05/2005
1.9 TDI 1896 CCM 130 HP 11/2000 - 05/2005
1.6 1595 CCM 102 HP 11/2000 - 05/2005
2.0 1984 CCM 115 HP 11/2000 - 05/2005
2.3 VR5 2324 CCM 170 HP 11/2000 - 05/2005
1.8 T 20V 1781 CCM 150 HP 11/2000 - 05/2005
2.8 4motion 2771 CCM 193 HP 11/2000 - 05/2005
2.5 TDI 2496 CCM 150 HP 11/2000 - 05/2005
2.5 TDI 4motion 2496 CCM 150 HP 11/2000 - 05/2005
1.9 TDI 4motion 1896 CCM 130 HP 11/2000 - 05/2005
2.0 4motion 1984 CCM 115 HP 11/2000 - 05/2005
2.3 VR5 4motion 2324 CCM 170 HP 11/2000 - 05/2005
4.0 W8 4motion 3999 CCM 275 HP 09/2001 - 09/2004
2.0 1984 CCM 130 HP 11/2001 - 05/2005
2.5 TDI 4motion 2496 CCM 180 HP 01/2003 - 05/2005
PASSAT B5.5 (3B3)
Description Cylinder Capacity Horse Power Year
1.6 1595 CCM 102 HP 11/2000 - 05/2005
1.9 TDI 1896 CCM 101 HP 11/2000 - 05/2005
1.9 TDI 1896 CCM 130 HP 11/2000 - 05/2005
2.3 V5 2324 CCM 170 HP 11/2000 - 05/2005
2.0 1984 CCM 115 HP 11/2000 - 05/2005
2.5 TDI 2496 CCM 150 HP 11/2000 - 05/2005
1.8 T 20V 1781 CCM 150 HP 11/2000 - 05/2005
2.8 4motion 2771 CCM 193 HP 11/2000 - 05/2005
2.5 TDI 4motion 2496 CCM 150 HP 11/2000 - 05/2005
1.9 TDI 4motion 1896 CCM 130 HP 11/2000 - 05/2005
2.3 V5 4motion 2324 CCM 170 HP 11/2000 - 05/2005
4.0 W8 4motion 3999 CCM 275 HP 09/2001 - 09/2004
2.0 1984 CCM 130 HP 11/2001 - 05/2005
2.5 TDI 4motion 2496 CCM 180 HP 01/2003 - 05/2005

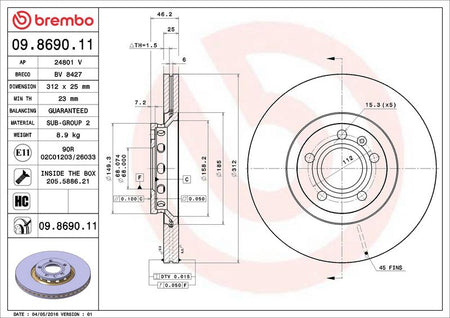

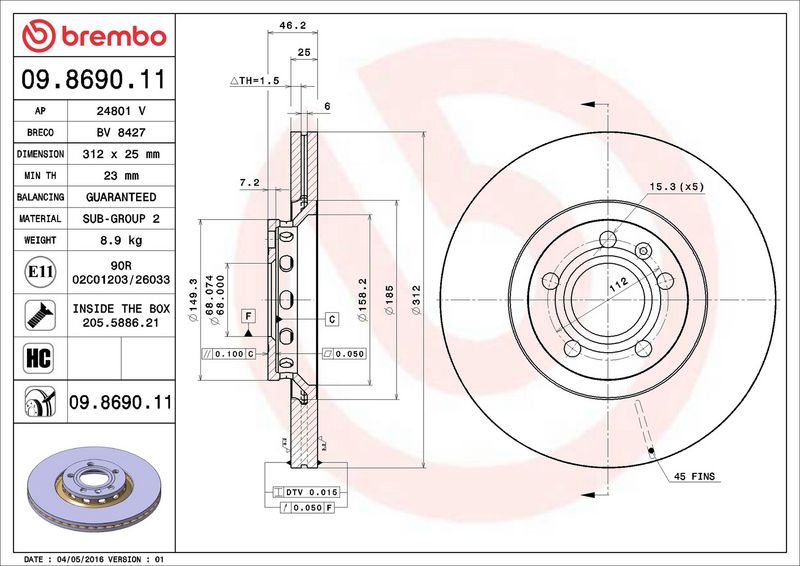

The Brembo 09.8690.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 46
Centering Diameter [mm] : 68
Outer Diameter [mm] : 312
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.8690.11
  • Barcode 8020584013526
  • BLUE PRINT : ADV184318
  • BORG & BECK : BBD4243
  • BOSCH : 0 986 479 057
  • BOSCH : 0 986 479 A30
  • DELPHI : BG3657
  • DELPHI : BG3657C
  • FEBI BILSTEIN : 23960
  • FTE : 9071059
  • FTE : 9081028
  • FTE : 9082549
  • HELLA : 8DD 355 107-521
  • MEYLE : 115 523 0039
  • MEYLE : 115 523 0039/PD
  • MINTEX : MDC1540
  • MINTEX : MDC1540C
  • National : NBD1151
  • SKF : VKBD 80242 V1
  • TEXTAR : 92106100
  • TEXTAR : 92106103
  • TEXTAR : 92106105
  • TRW : DF4262S
  • VALEO : 186758
