Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

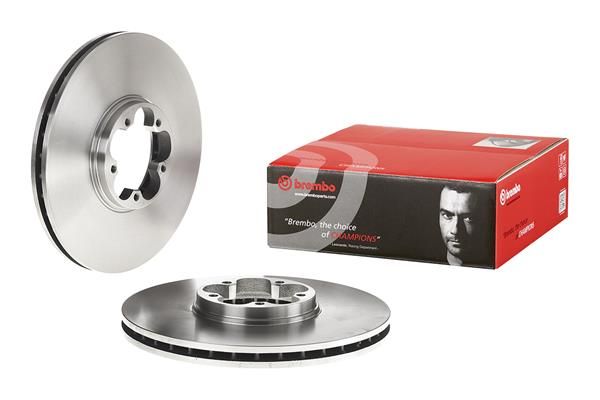

Brembo 09.8837.14 Brake Disc - 1
Brembo 09.8837.14 Brake Disc - 2
Brembo 09.8837.14 Brake Disc - 1
Brembo 09.8837.14 Brake Disc - 2
BREMBO

Brembo 09.8837.14 Brake Disc

SKU: 09.8837.14
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£72.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 75 HP 01/2000 - 05/2006
2.3 16V (F_A_, F_B_, F_C_, F_D_) 2295 CCM 146 HP 04/2001 - 05/2006
2.4 TDE 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
2.3 BiFuel 2295 CCM 143 HP 03/2001 - 03/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI RWD (F_B_, F_C_, F_A_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI (F_B_, F_C_, F_A_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI RWD (F_B_, F_C_) 2402 CCM 75 HP 01/2000 - 05/2006
2.3 16V RWD (F_B_, F_C_, F_A_) 2295 CCM 146 HP 08/2000 - 05/2006
2.4 TDE (F_C_, F_B_, F_A_) 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI (FAA_, FAB_, FAC_, FAD_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) 2402 CCM 75 HP 01/2000 - 05/2006
2.3 16V RWD (FAA_, FAB_, FAC_) 2295 CCM 146 HP 04/2001 - 05/2006
2.4 TDE 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
2.4 TD 2402 CCM 75 HP 08/2000 - 08/2003
2.3 2295 CCM 143 HP 03/2001 - 03/2006
2.3 BiFuel 2295 CCM 143 HP 03/2001 - 03/2006

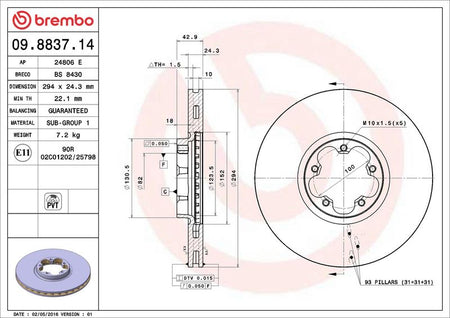

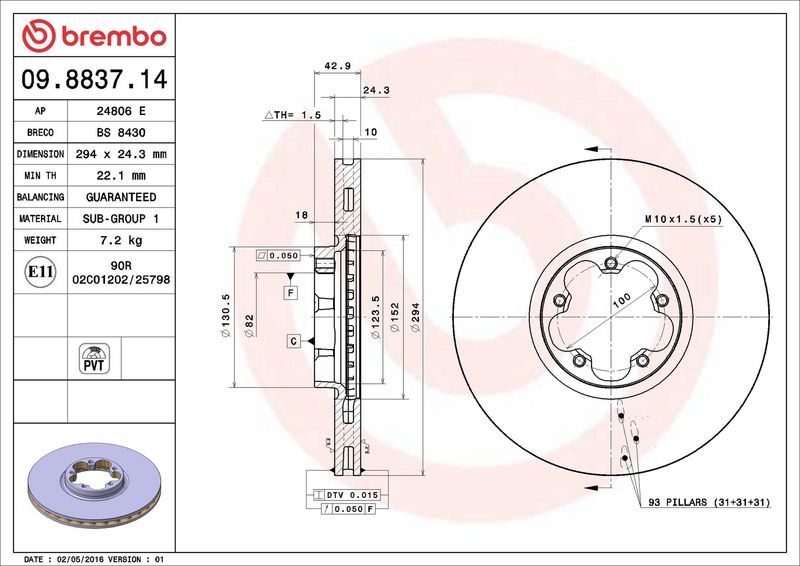

The Brembo 09.8837.14 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24.3 mm brake disc thickness, 5 mounting holes, and 82 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24.3
Number of Holes : 5
Height [mm] : 43
Centering Diameter [mm] : 82
Outer Diameter [mm] : 294
Minimum thickness [mm] : 22.1
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.8837.14
  • Barcode 8020584013410
  • FORD : 1387781 1520373 1568640 1738815 2C161125AA 4041428 4494021 YC1J1125B2B YC1W1125B1A YC1W1125B1B YC1W1125BA YC1W1125BB
  • BORG & BECK : BBD4221
  • BOSCH : 0 986 478 303
  • BOSCH : 0 986 479 B29
  • DELPHI : BG3504
  • FEBI BILSTEIN : 19515
  • FTE : 9082682
  • HELLA : 8DD 355 107-311
  • MEYLE : 715 521 7021
  • MEYLE : 783 521 7021/PD
  • MINTEX : MDC1082
  • MINTEX : MDC1082C
  • SKF : VKBD 80279 V2
  • TEXTAR : 92103803
  • TRW : DF4217
  • VALEO : 186710
  • VALEO : 673130
