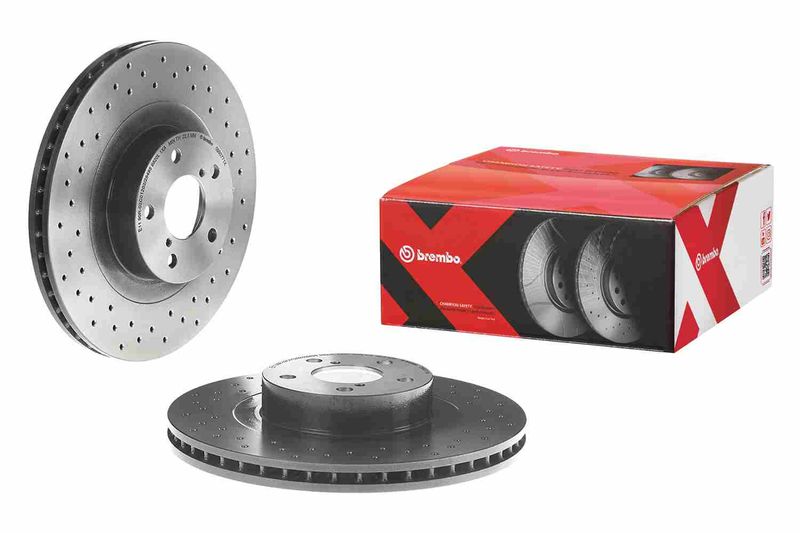

Brembo 09.9077.1X Brake Disc - 1
Brembo 09.9077.1X Brake Disc - 2
Brembo 09.9077.1X Brake Disc - 1
Brembo 09.9077.1X Brake Disc - 2
BREMBO

Brembo 09.9077.1X Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.9077.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£125.92 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUBARU
FORESTER (SG_)
Description Cylinder Capacity Horse Power Year
2.0 S Turbo AWD (SG5) 1994 CCM 177 HP 02/2002 - 05/2005
2.5 AWD (SG9) 2457 CCM 211 HP 12/2003 - 05/2005
2.5 AWD (SG9, S11SG, S12SH) 2457 CCM 230 HP 06/2005 - 05/2008
2.5 RX Nato AWD (SG9) 2457 CCM 156 HP 11/2002 - 12/2008
2.5 AWD 2457 CCM 175 HP 01/2005 - 10/2012
2.5 Prodrive Performance Pack AWD 2457 CCM 256 HP 05/2005 - 09/2005
IMPREZA Saloon (GC)
Description Cylinder Capacity Horse Power Year
2.0 Turbo GT AWD (GC8) 1994 CCM 211 HP 03/1994 - 12/2000
2.0 Turbo GT AWD (GC8) 1994 CCM 218 HP 06/1998 - 12/2000
2.0 AWD (GC8, GM8) 1994 CCM 280 HP 09/1996 - 09/2000
IMPREZA Estate (GF)
Description Cylinder Capacity Horse Power Year
2.0 i Turbo AWD (GF8) 1994 CCM 211 HP 03/1994 - 12/2000
2.0 Turbo GT AWD (GF8) 1994 CCM 218 HP 06/1998 - 12/2000
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
2.0 WRX Turbo AWD (GDA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX STi AWD (GDB) 1994 CCM 265 HP 11/2001 - 07/2005
2.0 WRX STi AWD 1994 CCM 320 HP 02/2004 - 07/2005
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
2.0 Turbo AWD (GGA) 1994 CCM 218 HP 12/2000 - 12/2005
OUTBACK (BH)
Description Cylinder Capacity Horse Power Year
3.0 H6 AWD (BHE) 3000 CCM 209 HP 10/2000 - 08/2003
2.5 AWD (BH9) 2457 CCM 156 HP 10/2000 - 08/2003
OUTBACK (BP)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BP9) 2457 CCM 165 HP 11/2003 - 09/2009
3.0 AWD (BPE) 3000 CCM 245 HP 11/2003 - 09/2009
2.0 D AWD (BPD) 1998 CCM 150 HP 09/2008 - 09/2009
2.5 AWD (BP9) 2457 CCM 173 HP 09/2008 - 09/2009

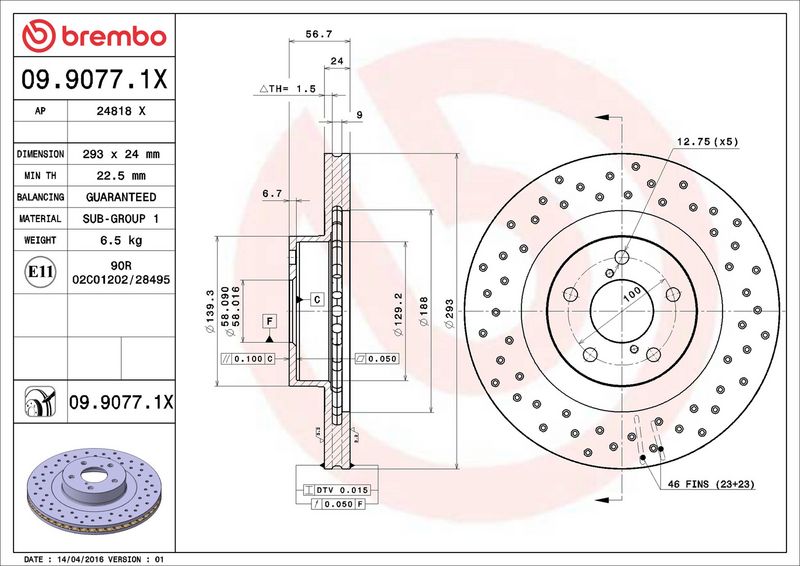

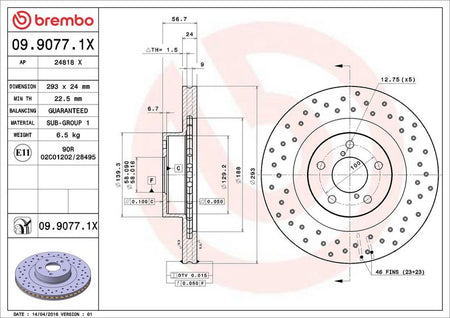

The Brembo 09.9077.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Height [mm] : 57
Centering Diameter [mm] : 58
Outer Diameter [mm] : 293
Surface : Coated
Minimum thickness [mm] : 22.5
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.9077.1X
  • Barcode 8020584212608
  • SUBARU : 26300AE02A 26300AE02B 26300AE02C 26300AE060 26300AE061 26300FE010 26300FE011 26310AC040 26310AC041 32006171
  • BLUE PRINT : ADS74318
  • BOSCH : 0 986 478 977
  • FEBI BILSTEIN : 108400
  • FTE : 9072183
  • HELLA : 8DD 355 112-051
  • MEYLE : 34-15 521 0014
  • MEYLE : 34-15 521 0014/PD
  • MINTEX : MDC1377
  • TEXTAR : 92139500
  • TRW : DF1437
  • TRW : DF4104
  • VALEO : 197775
  • VALEO : 672803
