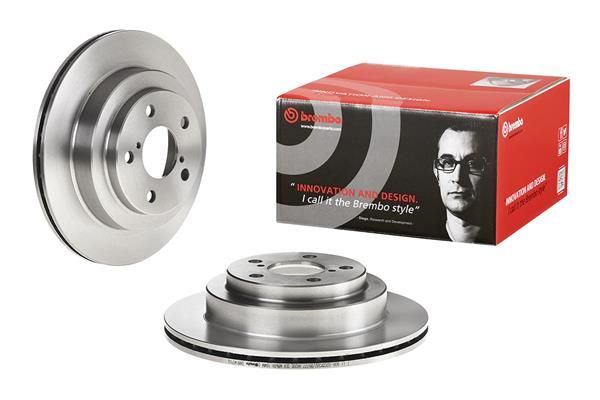

Brembo 09.9147.10 Brake Disc - 1

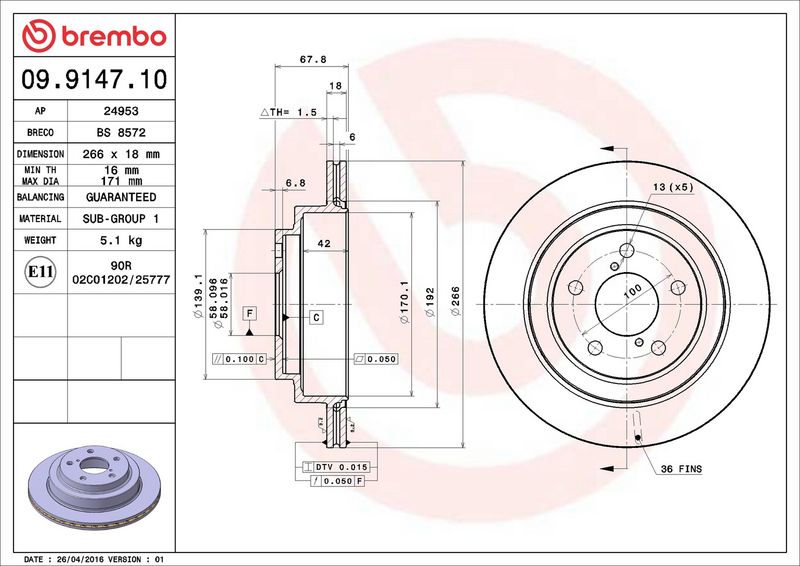

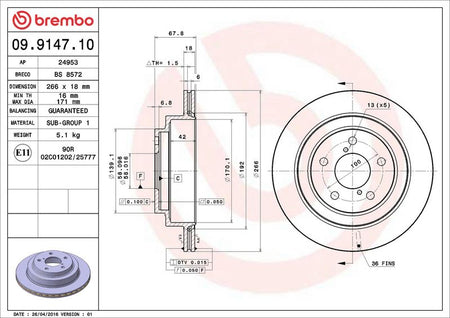

Brembo 09.9147.10 Brake Disc - 2
Brembo 09.9147.10 Brake Disc - 1
Brembo 09.9147.10 Brake Disc - 2
BREMBO

Brembo 09.9147.10 Brake Disc

SKU: 09.9147.10
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£75.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
IMPREZA Saloon (GC)
Description Cylinder Capacity Horse Power Year
2.0 Turbo GT AWD (GC8) 1994 CCM 211 HP 03/1994 - 12/2000
2.0 Turbo GT AWD (GC8) 1994 CCM 218 HP 06/1998 - 12/2000
2.0 AWD (GC8, GM8) 1994 CCM 280 HP 09/1996 - 09/2000
IMPREZA Estate (GF)
Description Cylinder Capacity Horse Power Year
2.0 i Turbo AWD (GF8) 1994 CCM 211 HP 03/1994 - 12/2000
2.0 Turbo GT AWD (GF8) 1994 CCM 218 HP 06/1998 - 12/2000
IMPREZA Coupe (GFC)
Description Cylinder Capacity Horse Power Year
2.0 Turbo AWD (GC8) 1994 CCM 211 HP 12/1996 - 12/2000
LEGACY   (BC)
Description Cylinder Capacity Horse Power Year
2000 Turbo 4WD (BC5) 1994 CCM 200 HP 05/1992 - 07/1994
LEGACY   Estate (BC, BF, BJ)
Description Cylinder Capacity Horse Power Year
2000 Turbo Super 4WD (BF5) 1994 CCM 200 HP 05/1992 - 07/1994
LEGACY Mk II (BD)
Description Cylinder Capacity Horse Power Year
2.5 i 4WD (BD9) 2457 CCM 150 HP 06/1996 - 03/1999
LEGACY Mk II Estate (BG)
Description Cylinder Capacity Horse Power Year
2.5 i 4WD (BG9) 2457 CCM 150 HP 06/1996 - 11/1998
LEGACY OUTBACK (BG)
Description Cylinder Capacity Horse Power Year
2.5 (BG9) 2457 CCM 150 HP 01/1996 - 12/1999

The Brembo 09.9147.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 18 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 18
Number of Holes : 5
Height [mm] : 68
Centering Diameter [mm] : 58
Outer Diameter [mm] : 266
Minimum thickness [mm] : 16
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.9147.10
  • Barcode 8020584914717
  • SUBARU : 26310AA111 26310AA112 26310AA150
  • BLUE PRINT : ADS74319
  • BORG & BECK : BBD4117
  • DELPHI : BG3154
  • FEBI BILSTEIN : 170762
  • FTE : 9072624
  • HELLA : 8DD 355 112-341
  • MINTEX : MDC877
  • National : NBD542
  • TEXTAR : 92142100
  • TRW : DF4033
