Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.9363.11 Brake Disc - 1
Brembo 09.9363.11 Brake Disc - 2
Brembo 09.9363.11 Brake Disc - 1
Brembo 09.9363.11 Brake Disc - 2
BREMBO

Brembo 09.9363.11 Brake Disc

SKU: 09.9363.11
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£107.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
159 (939_)
Description Cylinder Capacity Horse Power Year
1.9 JTS (939AXA1B) 1859 CCM 160 HP 09/2005 - 11/2011
2.2 JTS (939AXB1B, 939AXB11) 2198 CCM 185 HP 09/2005 - 11/2011
1.9 JTDM 8V (939AXE1B) 1910 CCM 120 HP 09/2005 - 11/2011
1.9 JTDM 16V (939AXC1B, 939AXC12) 1910 CCM 150 HP 09/2005 - 11/2011
1.9 JTDM 16V (939AXF1B, 939AXC1B) 1910 CCM 136 HP 09/2005 - 11/2011
1.8 MPI (939AXL1A) 1796 CCM 140 HP 06/2005 - 11/2011
2.0 JTDM (939AXP1B) 1956 CCM 170 HP 05/2009 - 11/2011
2.0 JTDM (939AXR1B) 1956 CCM 136 HP 06/2010 - 11/2011
159 Sportwagon (939_)
Description Cylinder Capacity Horse Power Year
2.0 JTDM (939BXQ1B) 1956 CCM 163 HP 05/2009 - 11/2011
1.9 JTS (939BXA1B) 1859 CCM 160 HP 03/2006 - 11/2011
2.2 JTS (939BXB1B, 939BXB11) 2198 CCM 185 HP 03/2006 - 11/2011
1.9 JTDM 8V (939BXE1B) 1910 CCM 120 HP 03/2006 - 11/2011
1.9 JTDM 16V (939BXC1B, 939BXC12) 1910 CCM 150 HP 03/2006 - 11/2011
1.9 JTDM 16V (939BXC1B) 1910 CCM 136 HP 03/2006 - 11/2011
1.9 JTDM 8V (939AXH1B, 939BXH1B) 1910 CCM 115 HP 03/2006 - 11/2011
1.8 MPI (939BXL1A) 1796 CCM 140 HP 06/2005 - 11/2011
2.0 JTDM (939BXP1B) 1956 CCM 170 HP 07/2009 - 11/2011
BRERA (939_)
Description Cylinder Capacity Horse Power Year
2.0 JTDM (939DXQ1B) 1956 CCM 163 HP 03/2008 - 06/2010
2.2 JTS (939.DXB11) 2198 CCM 185 HP 01/2006 - 05/2011
2.0 JTDM (939DXP1B) 1956 CCM 170 HP 05/2009 - 06/2010
SPIDER (939_)
Description Cylinder Capacity Horse Power Year
2.0 JTDM (939DXQ1B) 1956 CCM 163 HP 04/2009 - 03/2011
2.2 JTS (939EXB1B, 939EXB11) 2198 CCM 185 HP 03/2006 - 03/2011
2.0 JTDM (939DXP1B, 939EXP1B) 1956 CCM 170 HP 05/2009 - 06/2010

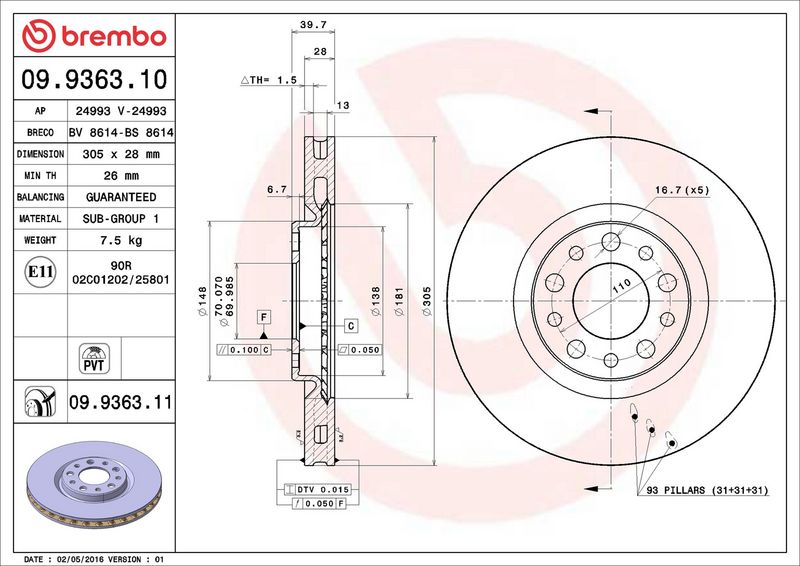

The Brembo 09.9363.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 40
Centering Diameter [mm] : 70
Outer Diameter [mm] : 305
Surface : Coated
Minimum thickness [mm] : 26
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.9363.11
  • Barcode 8020584026540
  • ALFA ROMEO : 46843608 51760621
  • BLUE PRINT : ADL144325
  • BORG & BECK : BBD4513
  • BOSCH : 0 986 479 291
  • BOSCH : 0 986 479 293
  • DELPHI : BG3951
  • FEBI BILSTEIN : 43893
  • FEBI BILSTEIN : 44036
  • FTE : 9071245
  • HELLA : 8DD 355 112-511
  • MEYLE : 15-15 521 0004/PD
  • MINTEX : MDC1739
  • MINTEX : MDC2157
  • SKF : VKBD 80110 V2
  • TEXTAR : 92145003
  • TEXTAR : 92220803
  • TRW : DF4476
  • VALEO : 197247
  • VALEO : 672502
