BREMBO

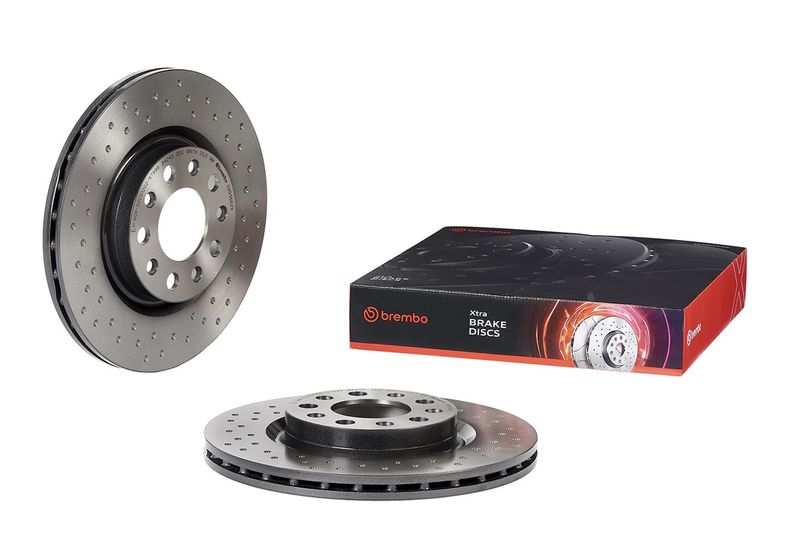

Brembo 09.9366.2X Brake Disc

SKU: 09.9366.2X
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£291.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
159 (939_)
Description Cylinder Capacity Horse Power Year
3.2 JTS Q4 (939AXH1B, 939AXG22) 3195 CCM 260 HP 12/2005 - 11/2011
2.4 JTDM (939AXD12, 939AXD1B) 2387 CCM 200 HP 09/2005 - 11/2011
2.4 JTDM Q4 (939AXMB2) 2387 CCM 210 HP 05/2007 - 11/2011
2.4 JTDM (939AXD) 2387 CCM 210 HP 07/2007 - 11/2011
3.2 JTS (939AXG2B) 3195 CCM 260 HP 01/2008 - 11/2011
1.8 TBi (939.AXN1B) 1742 CCM 200 HP 05/2009 - 12/2012
159 Sportwagon (939_)
Description Cylinder Capacity Horse Power Year
3.2 JTS Q4 (939BXG2B, 939BXG22) 3195 CCM 260 HP 03/2006 - 11/2011
2.4 JTDM (939BXD1B, 939BXD12) 2387 CCM 200 HP 03/2006 - 11/2011
2.4 JTDM Q4 (939BXM2B) 2387 CCM 210 HP 05/2007 - 11/2011
2.4 JTDM (939.BXM1B) 2387 CCM 210 HP 05/2007 - 12/2012
1.8 MPI (939BXL1A) 1796 CCM 140 HP 06/2005 - 11/2011
3.2 JTS (939BXH1B) 3195 CCM 260 HP 02/2008 - 11/2011
1.8 TBi (939BXN1B) 1742 CCM 200 HP 07/2009 - 11/2011
BRERA (939_)
Description Cylinder Capacity Horse Power Year
3.2 JTS Q4 (939.DXG22) 3195 CCM 260 HP 01/2006 - 05/2011
2.4 JTDM 20V (939DXD1B, 939DXD12) 2387 CCM 200 HP 01/2006 - 03/2011
2.4 JTDM 20V (939DXD1B, 939DXM1B) 2387 CCM 210 HP 05/2007 - 03/2011
3.2 JTS (939DXG2B, 939DXG1B) 3195 CCM 260 HP 03/2008 - 06/2010
1.8 TBi (939DXN1B) 1742 CCM 200 HP 05/2009 - 06/2010
SPIDER (939_)
Description Cylinder Capacity Horse Power Year
3.2 JTS Q4 (939EXG2B, 939EXG22) 3195 CCM 260 HP 03/2006 - 03/2011
2.4 JTDM (939EXD1B, 939EXD12) 2387 CCM 200 HP 03/2006 - 03/2011
2.4 JTDM (939DXM1B, 939EXM1B) 2387 CCM 210 HP 03/2008 - 03/2011
3.2 JTS (939EXG2B) 3195 CCM 260 HP 03/2008 - 03/2011
1.8 TBi (939DXN1B) 1742 CCM 200 HP 05/2009 - 03/2011

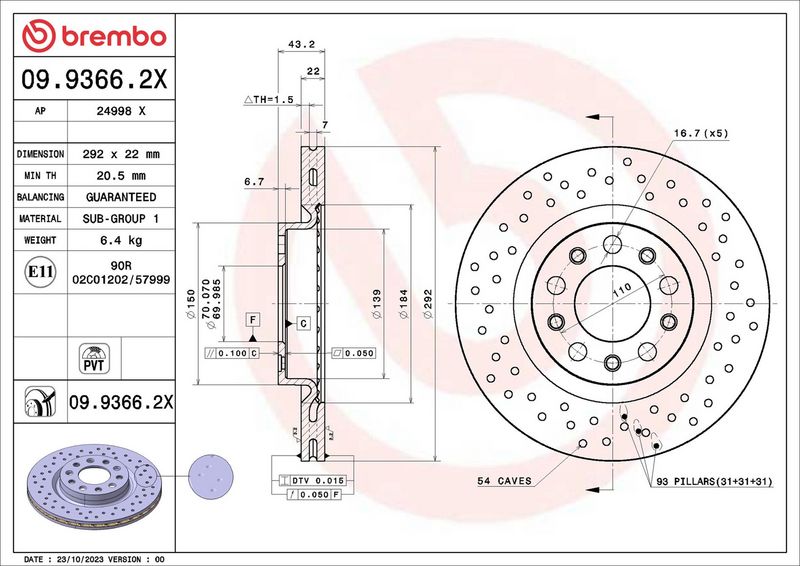

The Brembo 09.9366.2X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Height [mm] : 43
Centering Diameter [mm] : 70
Outer Diameter [mm] : 292
Surface : Coated
Minimum thickness [mm] : 20.5
  • Vendor BREMBO
  • SKU 09.9366.2X
  • Barcode 8020584326084
  • ALFA ROMEO : 51767379 51767380
  • FIAT : 51767379 51767380
  • BLUE PRINT : ADL144339
  • BOSCH : 0 986 479 D99
  • FEBI BILSTEIN : 43962
  • FEBI BILSTEIN : 43963
  • HELLA : 8DD 355 116-691
  • MINTEX : MDC2160
  • TEXTAR : 92221103
