BREMBO

Brembo 09.9368.11 Brake Disc

SKU: 09.9368.11

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£88.40 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN

ALMERA TINO (V10)

Description	Cylinder Capacity	Horse Power	Year
1.8	1769 CCM	114 HP	08/2000 - 02/2006
2.0	1998 CCM	136 HP	08/2000 - 01/2003
2.2 dCi	2184 CCM	115 HP	08/2000 - 02/2006
2.2 dCi	2184 CCM	112 HP	09/2003 - 02/2006
2.2 dCi	2184 CCM	136 HP	09/2003 - 02/2006
1.8	1769 CCM	116 HP	12/2002 - 02/2006

MAXIMA / MAXIMA QX V (A33)

Description	Cylinder Capacity	Horse Power	Year
2.0 V6 24V	1995 CCM	140 HP	03/2000 - 11/2003
2.5 V6 24V	2496 CCM	209 HP	03/2000 - 11/2003
3.0 V6 24V	2988 CCM	200 HP	03/2000 - 11/2003

PRAIRIE LIBERTY (_M12)

Description	Cylinder Capacity	Horse Power	Year
2.0 (PM12)	1998 CCM	140 HP	11/1998 - 05/2001

PRIMERA (P12)

Description	Cylinder Capacity	Horse Power	Year
1.8	1769 CCM	115 HP	03/2002 - 10/2008
2.0	1998 CCM	140 HP	03/2002 - 10/2008
2.2 Di	2184 CCM	126 HP	03/2002 - 05/2007
1.6	1597 CCM	106 HP	03/2002 - 08/2008
1.9 dCi	1870 CCM	120 HP	04/2003 - 10/2007
2.2 dCi	2184 CCM	139 HP	04/2003 - 04/2006
1.6	1597 CCM	109 HP	01/2002 - 04/2006
1.9 dCi	1870 CCM	116 HP	08/2002 - 10/2007
1.8 LPG	1769 CCM	115 HP	From 03/2002

PRIMERA Hatchback (P12)

Description	Cylinder Capacity	Horse Power	Year
1.6	1597 CCM	106 HP	07/2002 - 08/2008
1.8	1769 CCM	115 HP	07/2002 - 10/2008
2.0	1998 CCM	140 HP	07/2002 - 10/2008
2.2 Di	2184 CCM	126 HP	07/2002 - 05/2007
1.9 dCi	1870 CCM	120 HP	04/2003 - 10/2007
2.2 dCi	2184 CCM	139 HP	From 04/2003
1.6	1597 CCM	109 HP	07/2002 - 04/2006
1.9 dCi	1870 CCM	116 HP	08/2002 - 10/2007

PRIMERA Estate (WP12)

Description	Cylinder Capacity	Horse Power	Year
1.8	1769 CCM	115 HP	03/2002 - 05/2007
2.0	1998 CCM	140 HP	From 03/2002
2.2 Di	2184 CCM	126 HP	03/2002 - 04/2003
1.9 dCi	1870 CCM	120 HP	From 04/2003
2.2 dCi	2184 CCM	139 HP	From 04/2003
1.6 Visia	1597 CCM	109 HP	01/2002 - 04/2006
1.9 dCi	1870 CCM	116 HP	08/2002 - 10/2007

X-TRAIL I (T30)

Description	Cylinder Capacity	Horse Power	Year
2.0 4x4	1998 CCM	140 HP	07/2001 - 09/2007
2.2 Di 4x4	2184 CCM	114 HP	07/2001 - 09/2007
2.5 4x4	2488 CCM	165 HP	09/2002 - 09/2007
2.2 dCi 4x4	2184 CCM	136 HP	06/2001 - 09/2007
2.0	1998 CCM	140 HP	07/2001 - 09/2007
2.2 dCi	2184 CCM	136 HP	12/2003 - 09/2007
2.0	1998 CCM	150 HP	09/2001 - 01/2013
2.5 4x4	2488 CCM	179 HP	11/2002 - 01/2013
2.0 4x4	1998 CCM	150 HP	09/2001 - 01/2013
2.0 4x4	1998 CCM	280 HP	06/2001 - 09/2007
2.2 DCi	2184 CCM	114 HP	10/2004 - 01/2013
2.2 DCi FWD	2184 CCM	114 HP	06/2001 - 09/2004
2.5 4x4	2488 CCM	182 HP	09/2001 - 02/2007

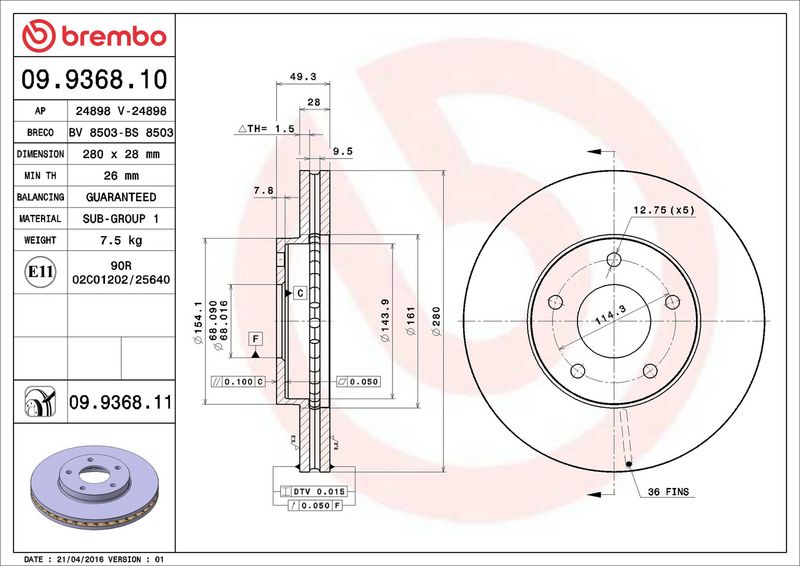

The Brembo 09.9368.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 5

Height [mm] : 49

Centering Diameter [mm] : 68

Outer Diameter [mm] : 280

Surface : Coated

Minimum thickness [mm] : 26

Tightening Torque [Nm] : 108

BLUE PRINT : ADN143101
BORG & BECK : BBD4327
BOSCH : 0 986 479 030
BOSCH : 0 986 479 B61
BOSCH : 0 986 479 R90
DELPHI : BG3730
DELPHI : BG3816
DELPHI : BG3816C
FEBI BILSTEIN : 108402
FTE : 9071062
HELLA : 8DD 355 108-011
MEYLE : 36-15 521 0027
MINTEX : MDC1578C
SKF : VKBD 80551 V2
TEXTAR : 92109400
TEXTAR : 92109403
TRW : DF4316
VALEO : 186728
VALEO : 672960

Brembo 09.9368.11 Brake Disc
