BREMBO

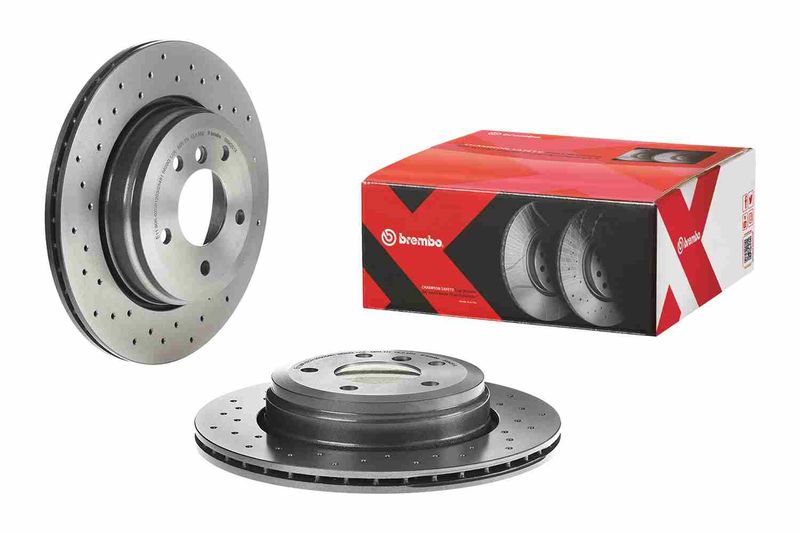

Brembo 09.9425.1X Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.9425.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£154.05 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

5 (E60)

Description	Cylinder Capacity	Horse Power	Year
520 i	2171 CCM	170 HP	07/2003 - 03/2010
530 i	2979 CCM	231 HP	12/2001 - 02/2005
530 d	2993 CCM	218 HP	09/2002 - 09/2005
525 i	2494 CCM	192 HP	09/2003 - 02/2005
545 i	4398 CCM	333 HP	07/2003 - 08/2005
525 d	2497 CCM	177 HP	06/2004 - 03/2010
530 i	2996 CCM	258 HP	03/2005 - 03/2007
523 i	2497 CCM	177 HP	10/2004 - 02/2007
525 i	2497 CCM	218 HP	03/2005 - 12/2009
540 i	4000 CCM	306 HP	03/2007 - 12/2009
520 d	1995 CCM	163 HP	09/2005 - 12/2009
530 d	2993 CCM	231 HP	09/2005 - 03/2007

5 Touring (E61)

Description	Cylinder Capacity	Horse Power	Year
525 i	2494 CCM	192 HP	06/2004 - 12/2010
530 d	2993 CCM	218 HP	03/2004 - 09/2005
525 d	2497 CCM	177 HP	03/2004 - 03/2007
530 i	2996 CCM	258 HP	09/2004 - 02/2007
523 i	2497 CCM	177 HP	10/2004 - 02/2007
525 i	2497 CCM	218 HP	03/2005 - 05/2010
530 d	2993 CCM	231 HP	02/2005 - 02/2007
520 d	1995 CCM	163 HP	04/2005 - 05/2010
525 d	2497 CCM	163 HP	03/2004 - 03/2007

6 (E63)

Description	Cylinder Capacity	Horse Power	Year
630 i	2996 CCM	258 HP	09/2004 - 08/2007
630 i	2996 CCM	272 HP	09/2007 - 08/2010
630 i	2996 CCM	272 HP	09/2007 - 08/2010

6 Convertible (E64)

Description	Cylinder Capacity	Horse Power	Year
630 i	2996 CCM	258 HP	09/2004 - 08/2007
630 i	2996 CCM	272 HP	09/2007 - 08/2010
630 i	2996 CCM	272 HP	09/2007 - 08/2010

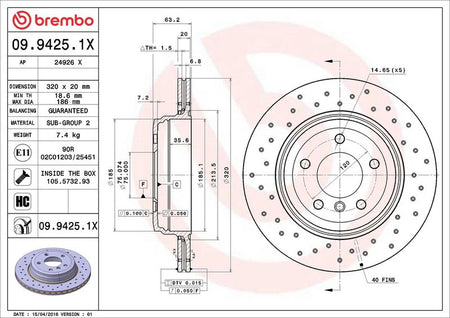

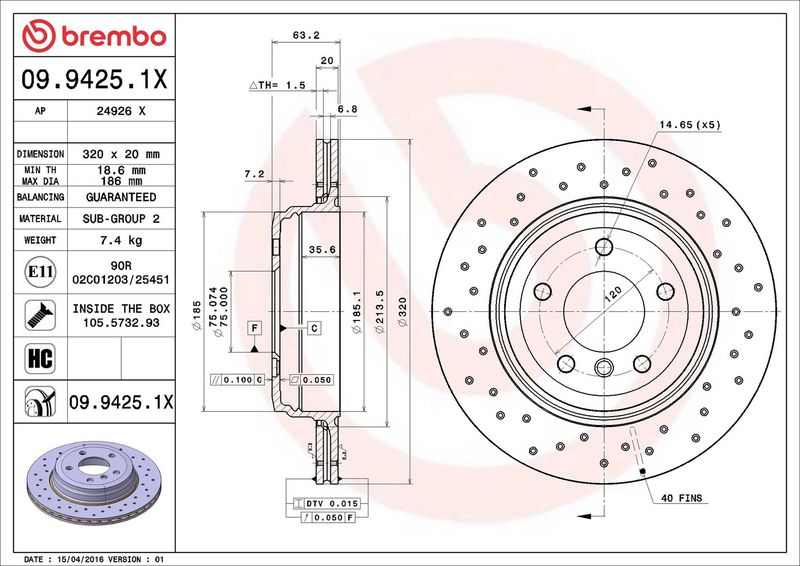

The Brembo 09.9425.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Brake Disc Thickness [mm] : 20

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 61

Centering Diameter [mm] : 75

Outer Diameter [mm] : 320

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 18.6

Tightening Torque [Nm] : 120
