BREMBO

Brembo 09.9447.11 Brake Disc

SKU: 09.9447.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£83.23 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)

Description	Cylinder Capacity	Horse Power	Year
1.9 TDI	1896 CCM	84 HP	05/2007 - 12/2009

MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)

Description	Cylinder Capacity	Horse Power	Year
2.0	1984 CCM	115 HP	11/2003 - 08/2015
2.5 TDI	2461 CCM	130 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	174 HP	04/2003 - 11/2009
1.9 TDI	1896 CCM	105 HP	04/2003 - 11/2009
VR6 3.2	3189 CCM	235 HP	02/2004 - 12/2009
VR6 3.2 4motion	3189 CCM	235 HP	07/2004 - 12/2009
2.5 TDI 4motion	2461 CCM	130 HP	07/2004 - 11/2009
2.5 TDI 4motion	2461 CCM	174 HP	07/2004 - 11/2009
1.9 TDI	1896 CCM	102 HP	01/2006 - 11/2009
1.9 TDI	1896 CCM	85 HP	04/2003 - 11/2009

TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ,

Description	Cylinder Capacity	Horse Power	Year
1.9 TDI	1896 CCM	85 HP	04/2003 - 11/2009
1.9 TDI	1896 CCM	105 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	130 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	174 HP	04/2003 - 11/2009
2.0	1984 CCM	115 HP	11/2003 - 05/2013
VR6 3.2	3189 CCM	235 HP	08/2003 - 11/2009
2.5 TDI 4motion	2461 CCM	130 HP	07/2004 - 11/2009
1.9 TDI	1896 CCM	102 HP	01/2006 - 11/2009
1.9 TDI	1896 CCM	84 HP	01/2006 - 11/2009
2.5 TDI 4motion	2461 CCM	174 HP	04/2004 - 11/2009

TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ)

Description	Cylinder Capacity	Horse Power	Year
1.9 TDI	1896 CCM	85 HP	04/2003 - 11/2009
1.9 TDI	1896 CCM	105 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	130 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	174 HP	04/2003 - 11/2009
2.0	1984 CCM	115 HP	11/2003 - 08/2015
VR6 3.2	3189 CCM	235 HP	02/2004 - 11/2009
2.5 TDI 4motion	2461 CCM	130 HP	07/2004 - 11/2009
2.5 TDI 4motion	2461 CCM	174 HP	07/2004 - 11/2009
1.9 TDI	1896 CCM	102 HP	01/2006 - 11/2009
3.2 V6 4motion	3189 CCM	235 HP	11/2003 - 12/2009
2.5 TDi	2461 CCM	163 HP	11/2003 - 11/2009
1.9 TDI	1896 CCM	84 HP	01/2006 - 11/2009

TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH)

Description	Cylinder Capacity	Horse Power	Year
1.9 TDI	1896 CCM	85 HP	04/2003 - 11/2009
1.9 TDI	1896 CCM	105 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	130 HP	04/2003 - 11/2009
2.5 TDI	2461 CCM	174 HP	04/2003 - 11/2009
2.0	1984 CCM	115 HP	11/2003 - 08/2015
VR6 3.2	3189 CCM	235 HP	02/2004 - 11/2009
2.5 TDI 4motion	2461 CCM	130 HP	07/2004 - 11/2009
2.5 TDI 4motion	2461 CCM	174 HP	07/2004 - 11/2009
1.9 TDI	1896 CCM	102 HP	01/2006 - 11/2009
VR6 3.2 4motion	3189 CCM	235 HP	11/2003 - 11/2009
1.9 TDI	1896 CCM	84 HP	01/2006 - 11/2009

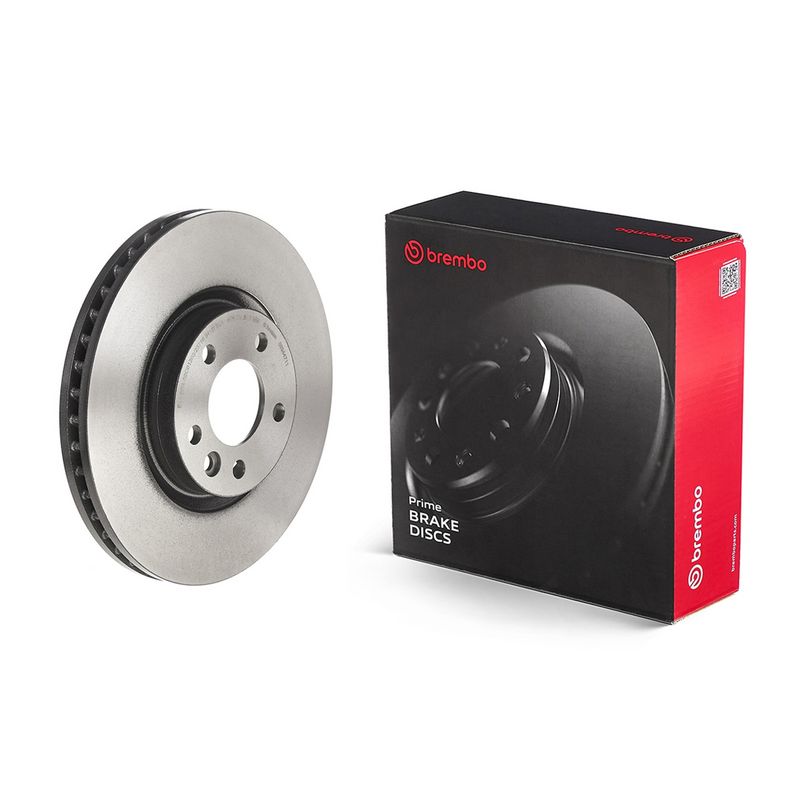

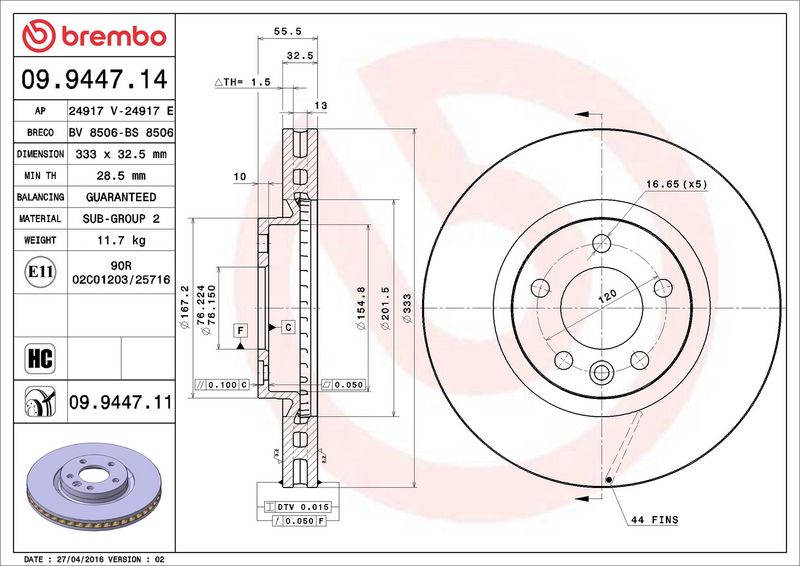

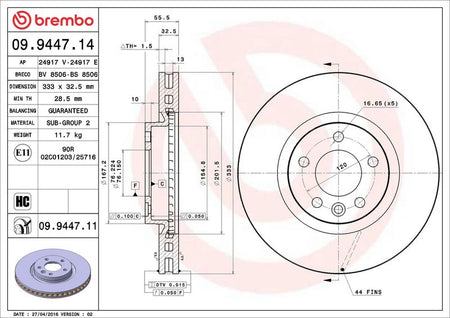

The Brembo 09.9447.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32.5 mm brake disc thickness, 5 mounting holes, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 32.5

Number of Holes : 5

Height [mm] : 56

Centering Diameter [mm] : 76

Outer Diameter [mm] : 333

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 28.5

Tightening Torque [Nm] : 170

BORG & BECK : BBD5916S
BOSCH : 0 986 479 096
BOSCH : 0 986 479 S72
DELPHI : BG9892
FEBI BILSTEIN : 43996
FTE : 9071171
HELLA : 8DD 355 109-681
MEYLE : 115 521 0038
MEYLE : 115 521 0038/PD
MINTEX : MDC1705
SKF : VKBD 81039 V1
TEXTAR : 92121305
TRW : DF4309S
VALEO : 672740

Brembo 09.9447.11 Brake Disc
