BREMBO

Brembo 09.9464.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.9464.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£86.95 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 122 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 101 HP 02/2007 - 09/2010
1.6 1596 CCM 100 HP 02/2007 - 09/2010
1.8 1798 CCM 125 HP 02/2007 - 09/2010
1.8 Flexifuel 1798 CCM 125 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 90 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 109 HP 02/2007 - 09/2010
1.6 1596 CCM 116 HP 04/2007 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 133 HP 10/2003 - 03/2007
1.8 1798 CCM 120 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
2.0 TDCi 1997 CCM 136 HP 10/2003 - 03/2007
1.6 1596 CCM 100 HP 10/2003 - 03/2007
2.0 1999 CCM 145 HP 03/2004 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
1.8 TDCi 1753 CCM 115 HP 01/2005 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
1.8 1798 CCM 122 HP 09/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 101 HP 11/2004 - 07/2011
1.6 TDCi 1560 CCM 109 HP 07/2004 - 07/2011
1.6 Ti-VCT 1596 CCM 116 HP 09/2005 - 07/2011
1.6 1596 CCM 101 HP 09/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.4 1388 CCM 80 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
1.8 TDCi 1753 CCM 115 HP 04/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2006 - 09/2010
2.0 1999 CCM 145 HP 10/2006 - 09/2010
2.0 TDCi 1997 CCM 136 HP 10/2006 - 09/2010
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
D2 1560 CCM 115 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
1.6 1596 CCM 100 HP 10/2006 - 12/2012
1.8 1798 CCM 125 HP 10/2006 - 12/2012
2.0 1999 CCM 145 HP 10/2006 - 12/2012
2.4 i 2435 CCM 170 HP 10/2006 - 12/2012
T5 2521 CCM 220 HP 10/2006 - 12/2012
1.6 D 1560 CCM 109 HP 10/2006 - 12/2012
2.0 D 1998 CCM 136 HP 10/2006 - 12/2012
D5 2400 CCM 180 HP 10/2006 - 12/2012
T5 2521 CCM 230 HP 03/2007 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2007 - 12/2012
D5 2400 CCM 163 HP 10/2006 - 12/2012
2.0 FlexFuel 1999 CCM 146 HP 01/2010 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 06/2013
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.0 D 1998 CCM 136 HP 01/2008 - 10/2009
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
D2 1560 CCM 115 HP 10/2010 - 12/2012
2.0 F 1999 CCM 146 HP 10/2009 - 12/2012
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
2.0 D 1998 CCM 136 HP 01/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2012
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 03/2006 - 12/2010
T5 2521 CCM 230 HP 03/2007 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 04/2004 - 12/2010
2.4 2435 CCM 170 HP 04/2004 - 12/2010
T5 2521 CCM 220 HP 04/2004 - 12/2007
2.0 D 1998 CCM 136 HP 04/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2011
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 04/2006 - 02/2008
T5 2521 CCM 230 HP 03/2007 - 12/2012
T5 AWD 2521 CCM 230 HP 03/2007 - 12/2010
1.8 FlexFuel 1798 CCM 125 HP 01/2005 - 12/2010

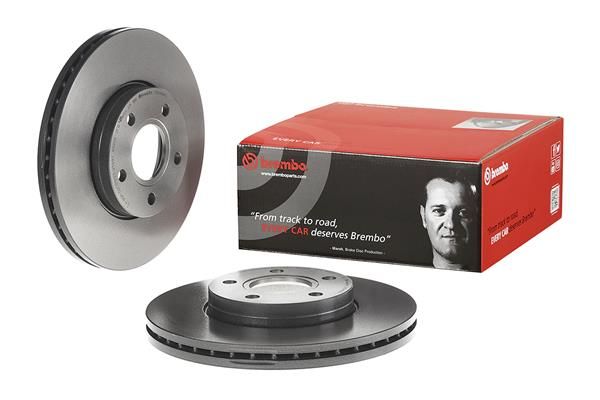

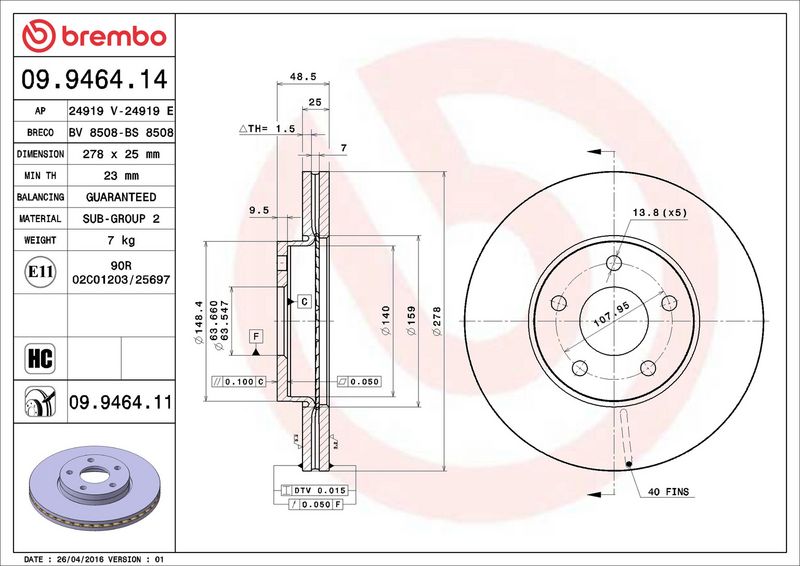

The Brembo 09.9464.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 64
Outer Diameter [mm] : 278
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.9464.11
  • Barcode 8020584015704
  • BLUE PRINT : ADF124311
  • BORG & BECK : BBD4451
  • BORG & BECK : BBD5304
  • BOSCH : 0 986 479 173
  • DELPHI : BG3868C
  • FEBI BILSTEIN : 24565
  • FTE : 9072094
  • HELLA : 8DD 355 112-171
  • HELLA : 8DD 355 118-921
  • MEYLE : 515 521 5026
  • MEYLE : 583 521 5026/PD
  • MINTEX : MDC1637C
  • MINTEX : MDC1831
  • National : NBD1258
  • SKF : VKBD 80103 V2
  • SKF : VKBD 80140 V2
  • TEXTAR : 92141203
  • TEXTAR : 92141205
  • TEXTAR : 92162803
  • TRW : DF4465
  • VALEO : 186819
  • VALEO : 672550
