Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

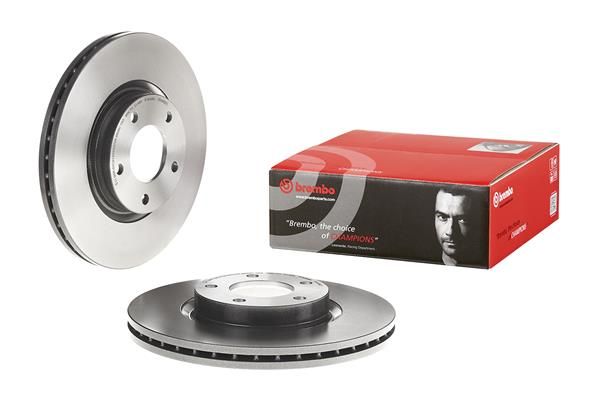

Brembo 09.9468.21 Brake Disc - 1

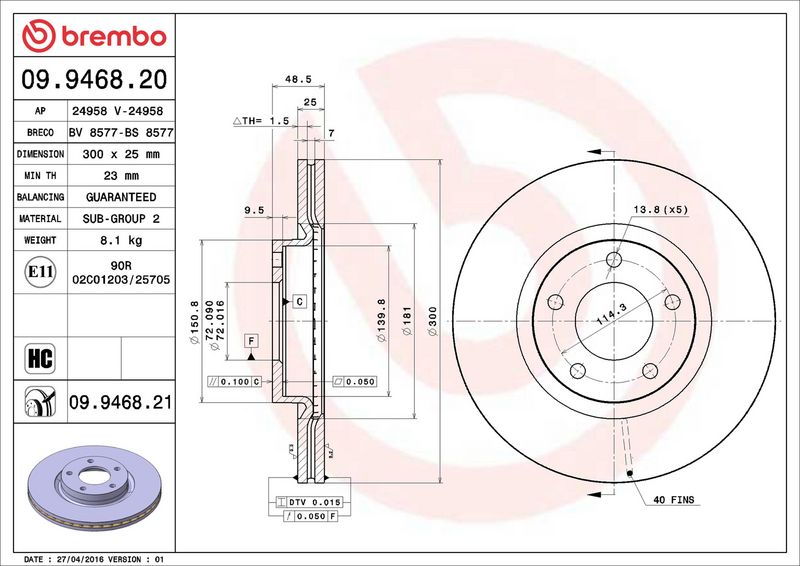

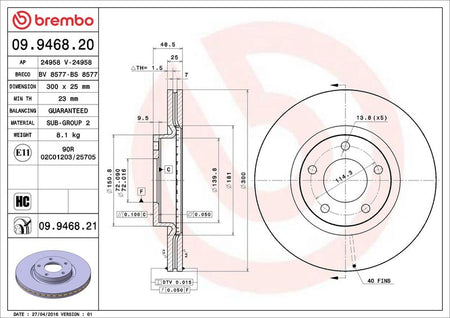

Brembo 09.9468.21 Brake Disc - 2
Brembo 09.9468.21 Brake Disc - 1
Brembo 09.9468.21 Brake Disc - 2
BREMBO

Brembo 09.9468.21 Brake Disc

SKU: 09.9468.21
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£99.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009
3 (BL)
Description Cylinder Capacity Horse Power Year
2.0 MZR DISI (BLEFW) 1999 CCM 151 HP 12/2008 - 05/2013
2.0 MZR (BLEFW) 1999 CCM 150 HP 01/2009 - 09/2014
2.2 MZR CD (BL10) 2184 CCM 150 HP 01/2009 - 10/2013
2.2 MZR CD (BL10) 2184 CCM 185 HP 01/2009 - 05/2013
2.0 MZR (BLEFW, BL10F) 1999 CCM 147 HP 04/2009 - 09/2014
2.0 DISI (BLEFW) 1998 CCM 150 HP 05/2009 - 02/2012
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
2.0 MZR (BL12, BLEFP) 1999 CCM 150 HP 03/2009 - 09/2014
2.0 MZR DISI (BL12) 1999 CCM 151 HP 02/2009 - 05/2013
2.2 MZR CD (BL10) 2184 CCM 150 HP 01/2009 - 09/2014
2.2 MZR CD (BL10) 2184 CCM 185 HP 06/2009 - 05/2013
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 110 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 143 HP 02/2005 - 05/2010
5 (CW)
Description Cylinder Capacity Horse Power Year
1.6 CD 1560 CCM 116 HP From 07/2010
2.0 (CWEFW) 1999 CCM 150 HP From 09/2010
2.0 (CWEFW) 1999 CCM 144 HP From 06/2010
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 (CWFFW) 1998 CCM 151 HP From 08/2014
2.0 1999 CCM 147 HP From 01/2011

The Brembo 09.9468.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 72
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.9468.21
  • Barcode 8020584030578
  • MAZDA : BP6Y3325XD BP6Y3325XE BP6Y3325XF C26Y3325X C26Y3325XA C26Y3325XB C26Y3325XC C26Y3325XD
  • BLUE PRINT : ADM54382
  • BORG & BECK : BBD4449
  • BOSCH : 0 986 479 141
  • BOSCH : 0 986 479 183
  • DELPHI : BG3928
  • FEBI BILSTEIN : 32770
  • FTE : 9071128
  • HELLA : 8DD 355 110-891
  • MEYLE : 35-15 521 0039
  • MEYLE : 35-15 521 0039/PD
  • MINTEX : MDC1692
  • MINTEX : MDC1988
  • SKF : VKBD 80273 V2
  • TEXTAR : 92130403
  • TRW : DF4385
  • VALEO : 197365
  • VALEO : 673246
