Brembo 09.9481.11 Brake Disc - 1
Brembo 09.9481.11 Brake Disc - 2
Brembo 09.9481.11 Brake Disc - 1
Brembo 09.9481.11 Brake Disc - 2
BREMBO

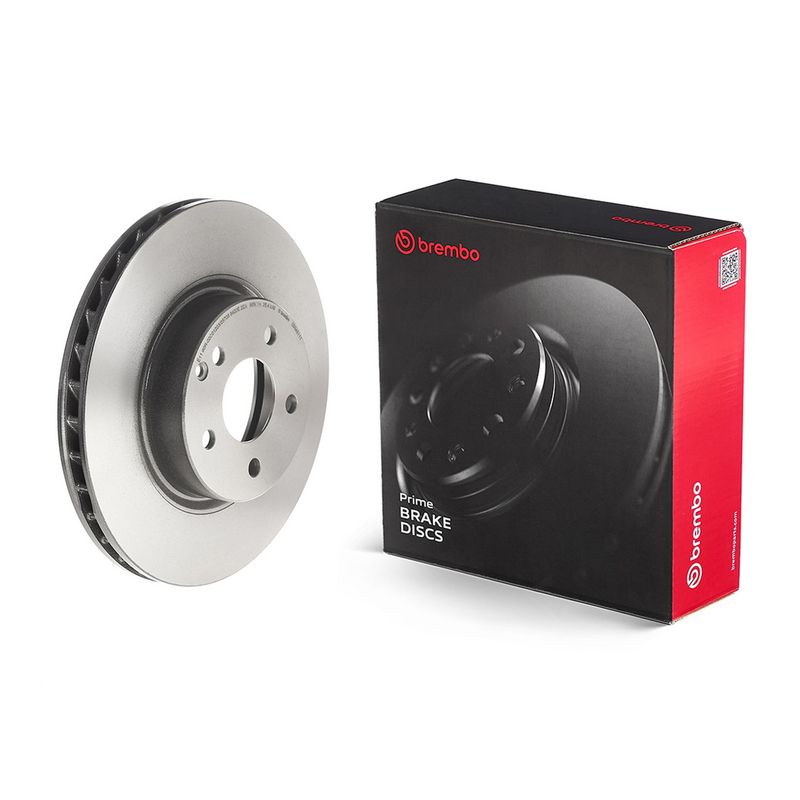

Brembo 09.9481.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.9481.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£73.70 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 320 CDI (219.322) 2987 CCM 224 HP 01/2005 - 12/2010
CLS 350 CDI (219.322) 2987 CCM 224 HP 04/2009 - 12/2010
CLS 350 CDI 2987 CCM 272 HP 04/2009 - 12/2010
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 320 (211.065) 3199 CCM 224 HP 03/2002 - 12/2008
E 320 CDI (211.026) 3222 CCM 204 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 320 T (211.265) 3199 CCM 224 HP 03/2003 - 07/2009
E 320 T CDI (211.226) 3222 CCM 204 HP 03/2003 - 07/2009
E 280 T CDI (211.223) 3222 CCM 177 HP 05/2004 - 07/2009
E 320 T CDI (211.222) 2987 CCM 224 HP 03/2005 - 07/2009
E 280 T CDI (211.220) 2987 CCM 190 HP 03/2005 - 07/2009
E-CLASS Platform/Chassis (VF211)
Description Cylinder Capacity Horse Power Year
E 270 CDI (211.616) 2685 CCM 177 HP 10/2003 - 07/2005
E 280 CDI (211.620) 2987 CCM 190 HP 08/2005 - 07/2009

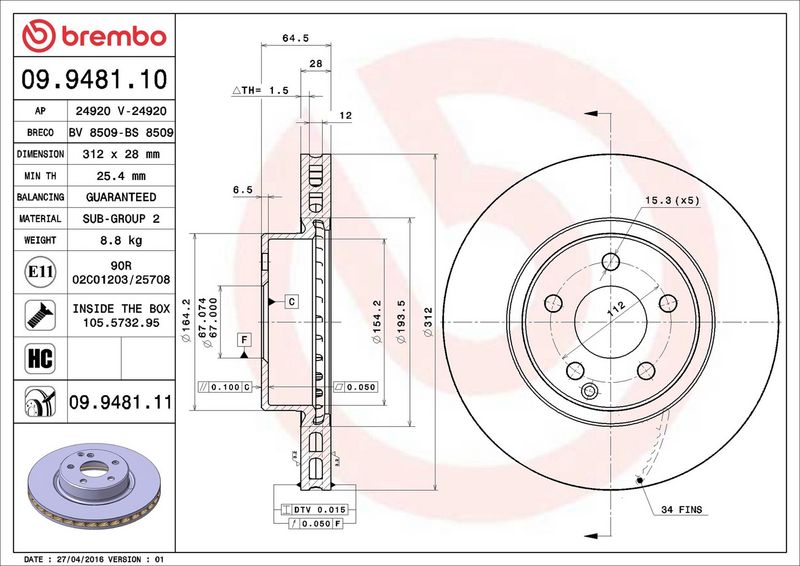

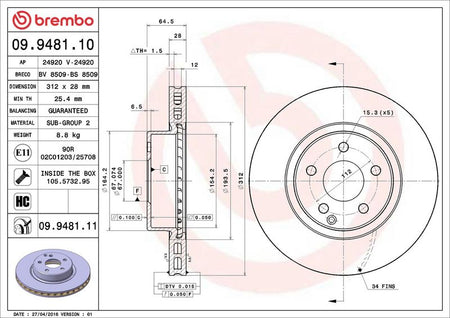

The Brembo 09.9481.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 312
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.9481.11
  • Barcode 8020584024935
  • MERCEDES-BENZ : 2114210912 A2114210912
  • BLUE PRINT : ADU174368
  • BORG & BECK : BBD4344
  • BOSCH : 0 986 479 040
  • DELPHI : BG3756
  • FEBI BILSTEIN : 30598
  • HELLA : 8DD 355 108-821
  • HELLA : 8DD 355 127-771
  • MEYLE : 015 521 2053
  • MEYLE : 083 521 2053/PD
  • MINTEX : MDC1617
  • SKF : VKBD 80256 V1
  • TEXTAR : 92115305
  • TRW : DF4264
  • VALEO : 197632
  • VALEO : 197797
  • VALEO : 673377
