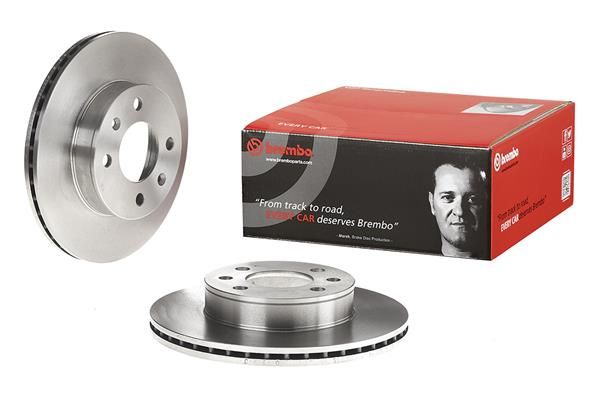

Brembo 09.9503.10 Brake Disc - 1

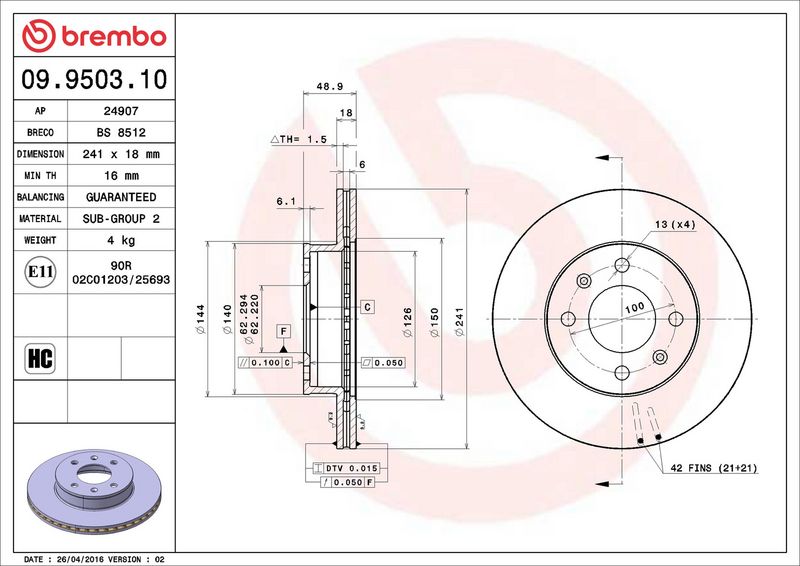

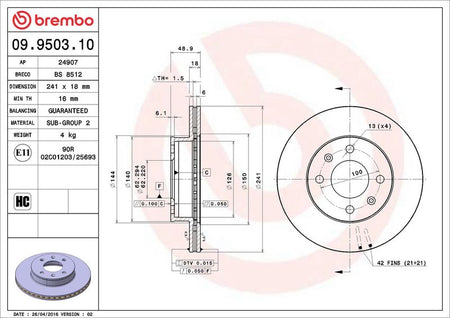

Brembo 09.9503.10 Brake Disc - 2
Brembo 09.9503.10 Brake Disc - 1
Brembo 09.9503.10 Brake Disc - 2
BREMBO

Brembo 09.9503.10 Brake Disc

SKU: 09.9503.10
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£57.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
i10 I (PA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 69 HP 04/2011 - 12/2013
1.2 1248 CCM 86 HP 04/2011 - 12/2013
1.1 LPG 1086 CCM 69 HP 04/2011 - 12/2013
1.1 1086 CCM 67 HP 01/2008 - 12/2013
1.1 1086 CCM 65 HP 12/2007 - 12/2013
1.2 1248 CCM 78 HP 11/2008 - 12/2011
1.0 998 CCM 69 HP 01/2011 - 12/2013
1.1 1086 CCM 68 HP 11/2008 - 12/2013
1.2 1248 CCM 87 HP 01/2011 - 05/2018
i10 II (BA, IA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 67 HP 08/2013 - 12/2019
1.2 1248 CCM 87 HP 12/2013 - 12/2019
i10 II Saloon
Description Cylinder Capacity Horse Power Year
1.2 1248 CCM 87 HP From 08/2015
KIA
PICANTO I (SA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 65 HP 04/2004 - 09/2011
1.0 999 CCM 61 HP 04/2004 - 04/2011
1.0 999 CCM 63 HP 09/2007 - 04/2011
PICANTO II (TA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 69 HP 05/2011 - 03/2017
1.0 Bi-Fuel 998 CCM 82 HP 05/2011 - 10/2014
1.2 1248 CCM 85 HP 05/2011 - 12/2016
1.0 LPG 998 CCM 67 HP 08/2013 - 03/2017
1.0 998 CCM 67 HP 05/2011 - 03/2017
1.2 1248 CCM 87 HP 09/2011 - 02/2017

The Brembo 09.9503.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 18 mm brake disc thickness, 4 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 18
Number of Holes : 4
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 241
Machining : High-carbon
Minimum thickness [mm] : 16
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.9503.10
  • Barcode 8020584950319
  • HYUNDAI : 517120X500
  • KIA : 5171207500 S5171207500
  • NAZA : 5171207500 517120X500
  • INOKOM : 517120X500
  • BLUE PRINT : ADG043143
  • BLUE PRINT : ADG04397
  • BORG & BECK : BBD4528
  • BOSCH : 0 986 479 286
  • BOSCH : 0 986 479 E73
  • BOSCH : 0 986 479 E78
  • BOSCH : 0 986 479 S04
  • DELPHI : BG3935
  • DELPHI : BG3935C
  • FEBI BILSTEIN : 108448
  • FEBI BILSTEIN : 31552
  • FTE : 9072011
  • FTE : 9082388
  • HELLA : 8DD 355 112-791
  • MEYLE : 28-15 521 0009
  • MINTEX : MDC1725
  • MINTEX : MDC1725C
  • National : NBD1342
  • SKF : VKBD 80114 V2
  • TEXTAR : 92147103
  • TRW : DF4458
  • VALEO : 197096
  • VALEO : 672747
