BREMBO

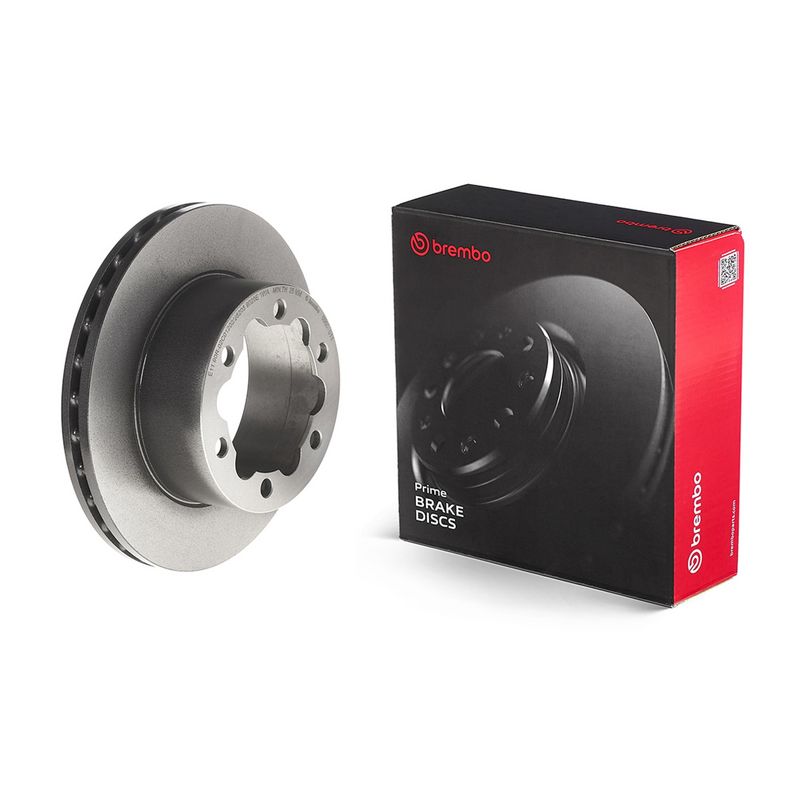

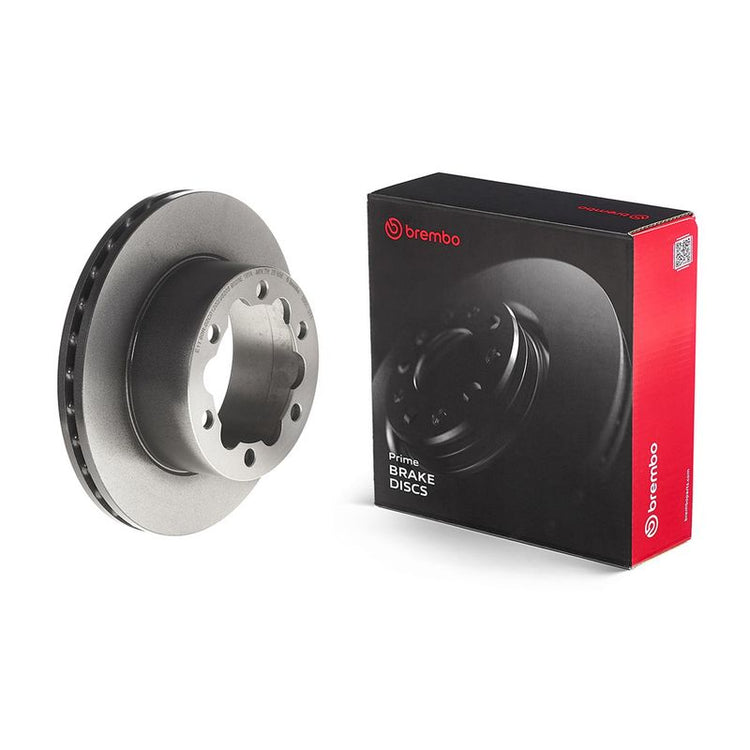

Brembo 09.9510.11 Brake Disc

SKU: 09.9510.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£66.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
SPRINTER 4,6-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
424 (906.153, 906.155, 906.253, 906.255) 3498 CCM 258 HP 06/2006 - 12/2016
416 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 163 HP 03/2009 - 12/2018
419 CDI (906.153, 906.155, 906.253, 906.255) 2987 CCM 190 HP 03/2009 - 12/2018
415 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 150 HP 06/2006 - 12/2009
418 CDI (906.153, 906.155, 906.253, 906.255) 2987 CCM 184 HP 06/2006 - 12/2009
411 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 109 HP 06/2009 - 12/2018
414 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 143 HP 05/2016 - 12/2018
413 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 129 HP 06/2006 - 12/2016
411 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 114 HP 04/2016 - 12/2018
SPRINTER 5-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
513 CDI 4x4 (906.155, 906.253, 906.255, 906.153) 2143 CCM 129 HP 05/2011 - 12/2016
516 CDI 4x4 (906.153, 906.155, 906.255, 906.253) 2143 CCM 163 HP 03/2009 - 12/2018
509 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 88 HP 06/2006 - 12/2009
511 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 109 HP 06/2006 - 12/2009
515 CDI (906.153, 906.155, 906.253, 906.255) 2148 CCM 150 HP 06/2006 - 12/2009
518 CDI (906.153, 906.155, 906.253, 906.255) 2987 CCM 184 HP 06/2006 - 12/2009
516 NGT (906.153, 906.155, 906.253, 906.255) 1796 CCM 156 HP 09/2008 - 12/2018
516 (906.153, 906.155, 906.253, 906.255) 1796 CCM 156 HP 09/2008 - 12/2018
524 (906.153, 906.155, 906.253, 906.255) 3498 CCM 258 HP 06/2006 - 12/2016
519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) 2987 CCM 190 HP 03/2009 - 12/2018
510 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 95 HP 03/2009 - 12/2016
513 CDI (906.155, 906.253, 906.255) 2148 CCM 129 HP 03/2009 - 05/2016
516 CDI (906.153, 906.155, 906.253, 906.255) 2143 CCM 163 HP 03/2009 - 12/2018
511 CDI 4x4 (906.155, 906.253, 906.255) 2148 CCM 109 HP 06/2006 - 12/2009
515 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2148 CCM 150 HP 06/2006 - 12/2009
SPRINTER 4,6-t Van (B906)
Description Cylinder Capacity Horse Power Year
424 (906.655, 906.657, 906.653) 3498 CCM 258 HP 06/2006 - 12/2016
416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... 2143 CCM 163 HP 03/2009 - 12/2018
419 CDI (906.653, 906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
411 CDI (906.653, 906.655, 906.657) 2148 CCM 109 HP 06/2009 - 12/2018
415 CDI (906.653, 906.655, 906.657) 2148 CCM 150 HP 06/2009 - 12/2009
418 CDI (906.653, 906.655, 906.657) 2987 CCM 184 HP 06/2009 - 05/2016
413 CDI (906.653, 906.655, 906.657) 2143 CCM 129 HP 06/2006 - 12/2016
414 CDI (906.653, 906.655, 906.657) 2143 CCM 143 HP 05/2016 - 12/2018
414 CDI 4x4 (906.653, 906.655, 906.657) 2143 CCM 143 HP 05/2016 - 12/2018
416 CDI 4x4 (906.655, 906.657) 2143 CCM 163 HP 11/2013 - 12/2018
411 CDI (906.653, 906.655, 906.657) 2143 CCM 114 HP 04/2016 - 12/2018
SPRINTER 5-t Bus (B906)
Description Cylinder Capacity Horse Power Year
519 CDI (906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
516 CDI (906.655, 906.657) 2143 CCM 163 HP 03/2009 - 12/2018
513 CDI (906.655, 906.657) 2143 CCM 129 HP 03/2009 - 12/2016
SPRINTER 5-t Van (B906)
Description Cylinder Capacity Horse Power Year
509 CDI (906.653, 906.655, 906.657) 2148 CCM 88 HP 06/2006 - 12/2009
511 CDI (906.653, 906.655, 906.657) 2148 CCM 109 HP 06/2006 - 12/2009
515 CDI (906.653, 906.655, 906.657) 2148 CCM 150 HP 06/2006 - 12/2009
518 CDI (906.653, 906.655, 906.657) 2987 CCM 184 HP 06/2006 - 12/2009
524 (906.653, 906.655, 906.657) 3498 CCM 258 HP 06/2006 - 12/2016
519 CDI / BlueTEC (906.653, 906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
516 CDI (906.653, 906.655, 906.657) 2143 CCM 163 HP 03/2009 - 12/2018
513 CDI (906.653, 906.655, 906.657) 2148 CCM 129 HP 03/2009 - 05/2016
510 CDI (906.653, 906.655, 906.657) 2143 CCM 95 HP 03/2009 - 12/2016
518 CDI 4x4 (906.653, 906.655, 906.657) 2987 CCM 184 HP 06/2006 - 12/2016
516 CDI 4x4 (906.653, 906.655, 906.657) 2143 CCM 163 HP 03/2009 - 12/2018
511 CDI 4x4 (906.653, 906.655, 906.657) 2148 CCM 109 HP 06/2006 - 12/2009
513 CDI 4x4 (906.653, 906.655, 906.657) 2143 CCM 129 HP 03/2009 - 12/2016
515 CDI 4x4 (906.653, 906.655, 906.657) 2148 CCM 150 HP 06/2006 - 12/2009
519 CDI / BlueTEC 4x4 (906.653, 906.655, 906.657) 2987 CCM 190 HP 03/2009 - 12/2018
SPRINTER 5-t Platform/Chassis (B907)
Description Cylinder Capacity Horse Power Year
511 CDI (907.153, 907.155, 907.253, 907.255) 2143 CCM 114 HP 02/2018 - 12/2021
514 CDI (907.153, 907.155, 907.253, 907.255) 2143 CCM 143 HP 02/2018 - 12/2021
516 CDI (907.153, 907.155, 907.253, 907.255) 2143 CCM 163 HP 02/2018 - 12/2021
519 CDI (907.153, 907.155, 907.253, 907.255) 2987 CCM 190 HP 02/2018 - 12/2021
516 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2143 CCM 163 HP 01/2019 - 12/2021
519 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2987 CCM 190 HP 01/2019 - 12/2021
515 CDI RWD (907.153, 907.155, 907.253, 907.255) 1950 CCM 150 HP From 10/2021
519 CDI RWD (907.153, 907.155, 907.253, 907.255) 1950 CCM 190 HP From 10/2021
519 CDI All-wheel Drive (907.153, 907.155, 907.253,... 1950 CCM 190 HP From 10/2021
517 CDI RWD (907.153, 907.155, 907.253, 907.255) 1950 CCM 170 HP From 01/2022
SPRINTER 5-t Van (B907)
Description Cylinder Capacity Horse Power Year
511 CDI (907.653, 907.655, 907.657) 2143 CCM 114 HP 02/2018 - 12/2021
514 CDI (907.653, 907.655, 907.657) 2143 CCM 143 HP 02/2018 - 12/2021
516 CDI (907.653, 907.655, 907.657) 2143 CCM 163 HP 02/2018 - 12/2021
519 CDI (907.653, 907.655, 907.657) 2987 CCM 190 HP 02/2018 - 12/2021
516 CDI All-wheel Drive (907.653, 907.655, 907.657) 2143 CCM 163 HP 01/2019 - 12/2021
519 CDI All-wheel Drive (907.653, 907.655, 907.657) 2987 CCM 190 HP 01/2019 - 12/2021
515 CDI (907.653, 907.655, 907.657) 1950 CCM 150 HP From 10/2021
517 CDI (907.653, 907.655, 907.657) 1950 CCM 170 HP From 06/2020
519 CDI (907.653, 907.655, 907.657) 1950 CCM 190 HP From 10/2021
VW
CRAFTER 30-50 Platform/Chassis (2F_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 142 HP 10/2011 - 12/2016
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 11/2011 - 12/2016
2.0 TDI 1968 CCM 114 HP 11/2013 - 12/2016
2.0 TDI 1968 CCM 140 HP 11/2015 - 12/2016
CRAFTER 30-35 Bus (2E_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 114 HP 11/2013 - 12/2016
CRAFTER 30-50 Van (2E_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 142 HP 10/2011 - 12/2016
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 114 HP 11/2013 - 12/2016
2.0 TDI 1968 CCM 140 HP 11/2015 - 12/2016

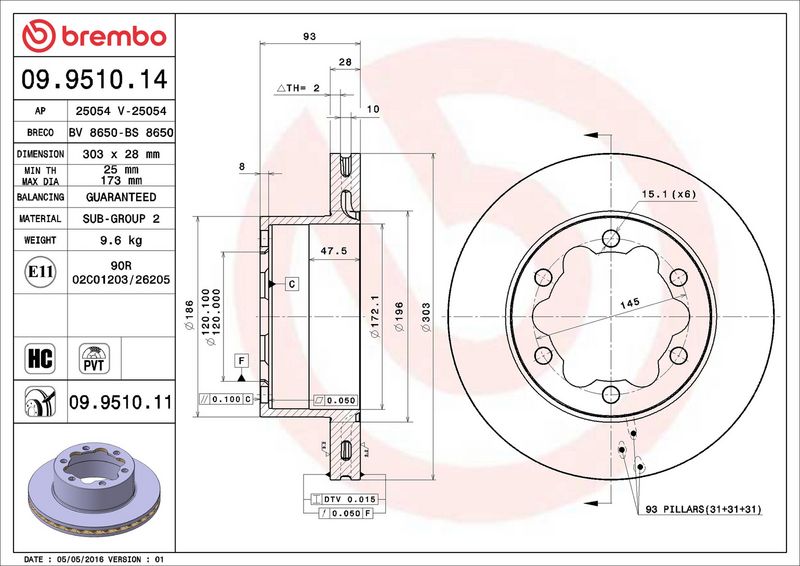

The Brembo 09.9510.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 120 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 93
Centering Diameter [mm] : 120
Outer Diameter [mm] : 303
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25
Tightening Torque [Nm] : 175
  • Vendor BREMBO
  • SKU 09.9510.11
  • Barcode 8020584222133
  • DODGE : 68013765AA
  • MERCEDES-BENZ : 9064230112 9074230100 907423010007 A9064230112 A9074230100
  • VW : 2E0615601
  • BLUE PRINT : ADU174361
  • BORG & BECK : BBD5904S
  • BOSCH : 0 986 479 296
  • DELPHI : BG9015
  • FEBI BILSTEIN : 27700
  • FTE : 9071047
  • HELLA : 8DD 355 118-061
  • MEYLE : 015 523 2099
  • MEYLE : 083 523 2099/PD
  • MINTEX : MDC1773
  • SKF : VKBD 90182 V1
  • TEXTAR : 93143400
  • TEXTAR : 93143403
  • TRW : DF4919S
  • VALEO : 187146
  • VALEO : 672751
