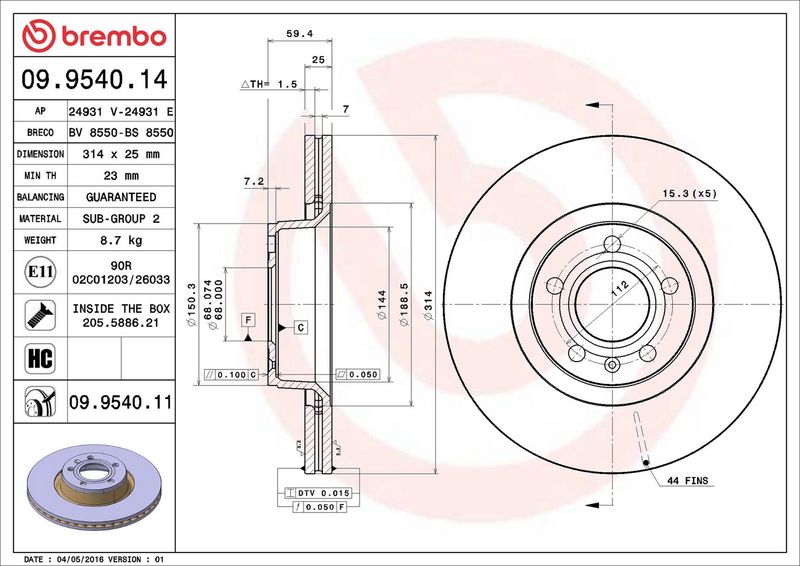

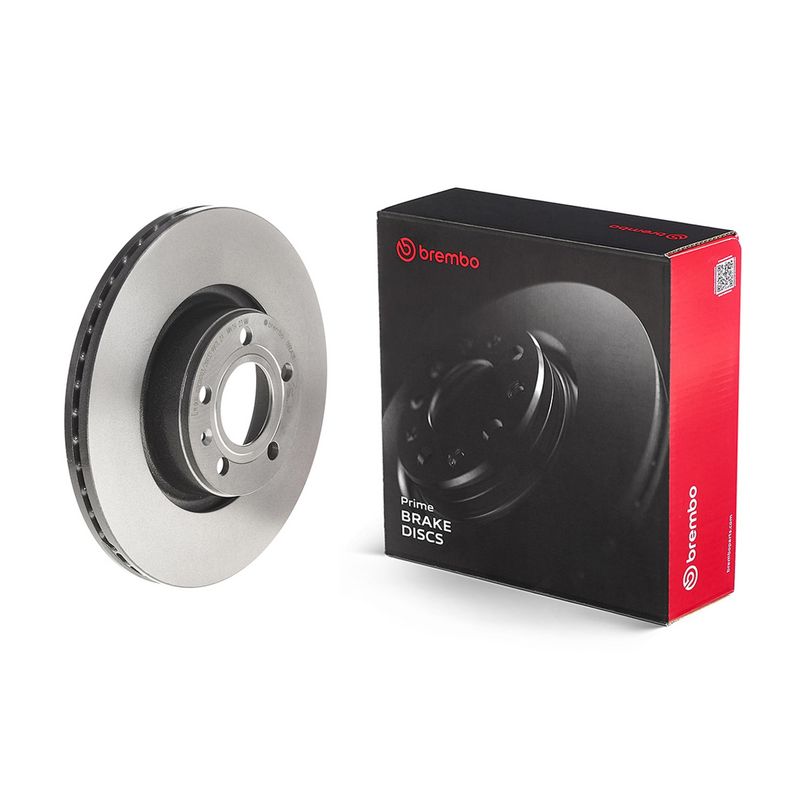

Brembo 09.9540.11 Brake Disc - 1

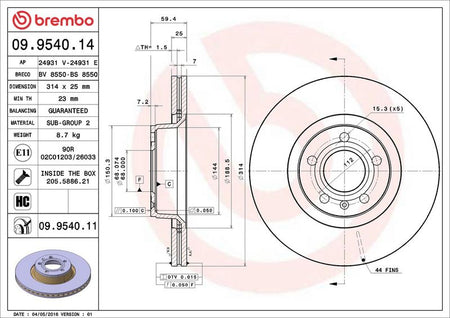

Brembo 09.9540.11 Brake Disc - 2
Brembo 09.9540.11 Brake Disc - 1
Brembo 09.9540.11 Brake Disc - 2
BREMBO

Brembo 09.9540.11 Brake Disc

SKU: 09.9540.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£58.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A6 C6 (4F2)
Description Cylinder Capacity Horse Power Year
2.4 2393 CCM 177 HP 05/2004 - 10/2008
3.2 FSI 3123 CCM 255 HP 05/2004 - 05/2009
3.2 FSI quattro 3123 CCM 255 HP 05/2004 - 10/2008
2.0 TDI 1968 CCM 140 HP 07/2004 - 10/2008
2.4 quattro 2393 CCM 177 HP 01/2005 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
2.0 TFSI 1984 CCM 170 HP 06/2005 - 03/2011
2.0 TDI 1968 CCM 136 HP 07/2004 - 03/2011
A6 C6 Avant (4F5)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 140 HP 06/2005 - 10/2008
2.4 2393 CCM 177 HP 03/2005 - 10/2008
2.4 quattro 2393 CCM 177 HP 03/2005 - 10/2008
2.0 TFSI 1984 CCM 170 HP 06/2005 - 08/2011
2.0 TDI 1968 CCM 136 HP 06/2005 - 08/2011

The Brembo 09.9540.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 59
Centering Diameter [mm] : 68
Outer Diameter [mm] : 314
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.9540.11
  • Barcode 8020584024843
  • AUDI : 4F0615301D
  • AUDI (FAW) : 4F0615301D L4FD615301
  • BLUE PRINT : ADV184343
  • BORG & BECK : BBD4509
  • BOSCH : 0 986 479 301
  • BOSCH : 0 986 479 C70
  • DELPHI : BG3942
  • FEBI BILSTEIN : 26648
  • FTE : 9071083
  • HELLA : 8DD 355 111-121
  • HELLA : 8DD 355 128-291
  • MEYLE : 115 521 1097
  • MEYLE : 183 521 1097/PD
  • MINTEX : MDC1742C
  • SKF : VKBD 80305 V1
  • TEXTAR : 92132205
  • TRW : DF4470
  • VALEO : 197052
  • VALEO : 672548
