Brembo 09.9581.11 Brake Disc - 1
Brembo 09.9581.11 Brake Disc - 2
Brembo 09.9581.11 Brake Disc - 1
Brembo 09.9581.11 Brake Disc - 2
BREMBO

Brembo 09.9581.11 Brake Disc

SKU: 09.9581.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£79.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
X3 (E83)
Description Cylinder Capacity Horse Power Year
xDrive 20 d 1995 CCM 163 HP 09/2008 - 08/2010
xDrive 30 d 2993 CCM 211 HP 09/2008 - 08/2010
3.0 i xDrive 2979 CCM 231 HP 09/2003 - 07/2006
2.5 i 2494 CCM 192 HP 03/2004 - 07/2006
3.0 d 2993 CCM 204 HP 01/2004 - 08/2005
2.0 d 1995 CCM 150 HP 09/2004 - 08/2007
2.0 i 1995 CCM 150 HP 07/2005 - 08/2008
3.0 d 2993 CCM 218 HP 09/2005 - 08/2008
3.0 si 2996 CCM 272 HP 08/2006 - 08/2008
2.5 si 2497 CCM 218 HP 08/2006 - 08/2008
2.0 sd 1995 CCM 177 HP 09/2007 - 08/2008
xDrive 20 i 1995 CCM 150 HP 09/2008 - 08/2011
xDrive 25 i 2497 CCM 218 HP 09/2008 - 08/2010
xDrive 30 i 2996 CCM 272 HP 09/2008 - 08/2010

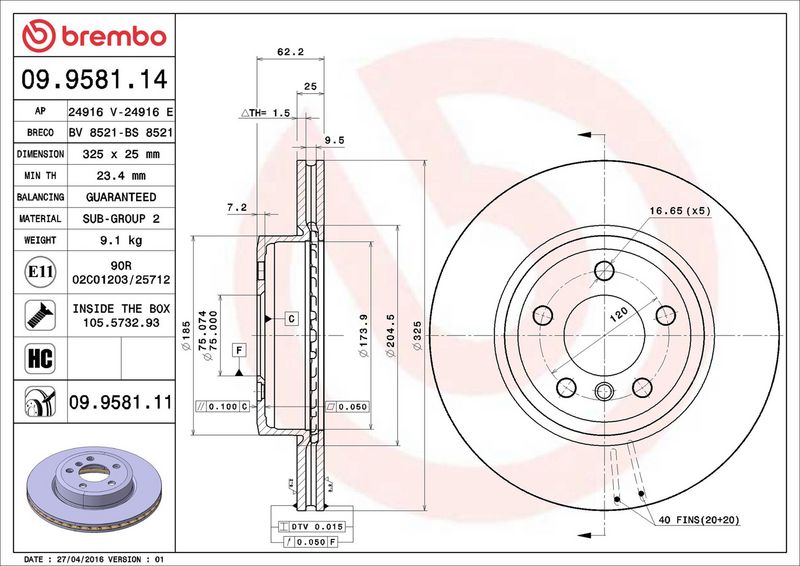

The Brembo 09.9581.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 62
Centering Diameter [mm] : 75
Outer Diameter [mm] : 325
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 23.4
Tightening Torque [Nm] : 140
  • Vendor BREMBO
  • SKU 09.9581.11
  • Barcode 8020584025086
  • BMW : 34113400151
  • BLUE PRINT : ADB114345
  • BORG & BECK : BBD5135
  • BOSCH : 0 986 479 348
  • DELPHI : BG3938
  • FEBI BILSTEIN : 24794
  • FTE : 9071069
  • HELLA : 8DD 355 112-231
  • HELLA : 8DD 355 128-481
  • MEYLE : 315 521 3074
  • MEYLE : 383 521 3074/PD
  • MINTEX : MDC1719
  • MINTEX : MDC1719C
  • SKF : VKBD 80287 V1
  • TEXTAR : 92141500
  • TEXTAR : 92141503
  • TEXTAR : 92141505
  • TRW : DF4392S
  • VALEO : 197083
  • VALEO : 672748
