BREMBO

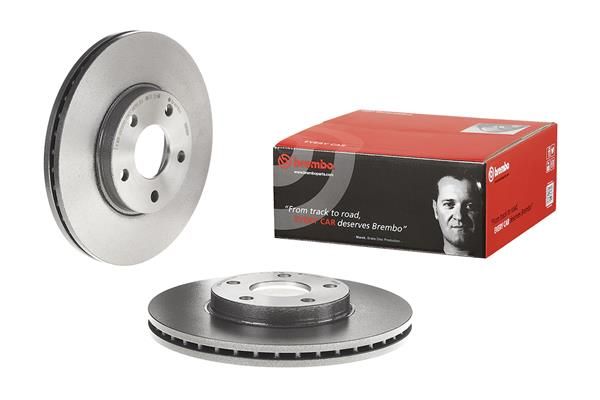

Brembo 09.9589.11 Brake Disc

SKU: 09.9589.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£80.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD

TOURNEO CONNECT

Description	Cylinder Capacity	Horse Power	Year
1.8 TDCi /TDDi /DI	1753 CCM	75 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	90 HP	06/2002 - 12/2013
1.8 16V	1796 CCM	116 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	110 HP	08/2006 - 12/2013

TRANSIT CONNECT (P65_, P70_, P80_)

Description	Cylinder Capacity	Horse Power	Year
1.8 16V LPG	1796 CCM	116 HP	06/2002 - 12/2013
1.8 16V	1796 CCM	116 HP	06/2002 - 12/2013
1.8 Di	1753 CCM	75 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	90 HP	06/2002 - 12/2013
1.8 TDCi	1753 CCM	110 HP	08/2006 - 12/2013

The Brembo 09.9589.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 24

Number of Holes : 5

Height [mm] : 45

Centering Diameter [mm] : 64

Outer Diameter [mm] : 278

Surface : Coated

Minimum thickness [mm] : 22

Tightening Torque [Nm] : 100

BLUE PRINT : ADF124340
BORG & BECK : BBD4316
BOSCH : 0 986 479 069
BOSCH : 0 986 479 B66
DELPHI : BG3826
FEBI BILSTEIN : 26592
FTE : 9072121
HELLA : 8DD 355 110-281
MEYLE : 715 521 7030
MEYLE : 783 521 7030/PD
MINTEX : MDC1556C
SKF : VKBD 80270 V2
TEXTAR : 92124803
TRW : DF4277
VALEO : 186748
VALEO : 672954

Brembo 09.9589.11 Brake Disc
