BREMBO

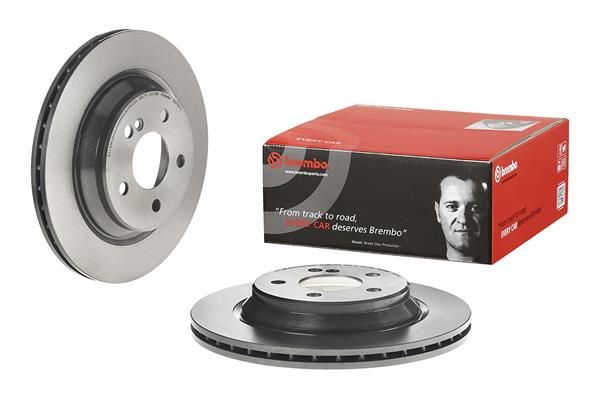

Brembo 09.9738.11 Brake Disc

SKU: 09.9738.11

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£97.57 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ

S-CLASS (W220, V220)

Description	Cylinder Capacity	Horse Power	Year
S 430, S 430 L (220.070, 220.170)	4266 CCM	279 HP	10/1998 - 08/2005
S 500, S 500 L (220.075, 220.175, 220.875)	4966 CCM	306 HP	10/1998 - 08/2005
S 400 CDI (220.028, 220.128)	3996 CCM	250 HP	06/2000 - 08/2005
S 430 4-matic (220.083, 220.183)	4266 CCM	279 HP	09/2002 - 08/2005
S 500 4-matic (220.084, 220.184)	4966 CCM	306 HP	09/2002 - 08/2005

S-CLASS Coupe (C215)

Description	Cylinder Capacity	Horse Power	Year
CL 500 (215.375)	4966 CCM	306 HP	03/1999 - 03/2006

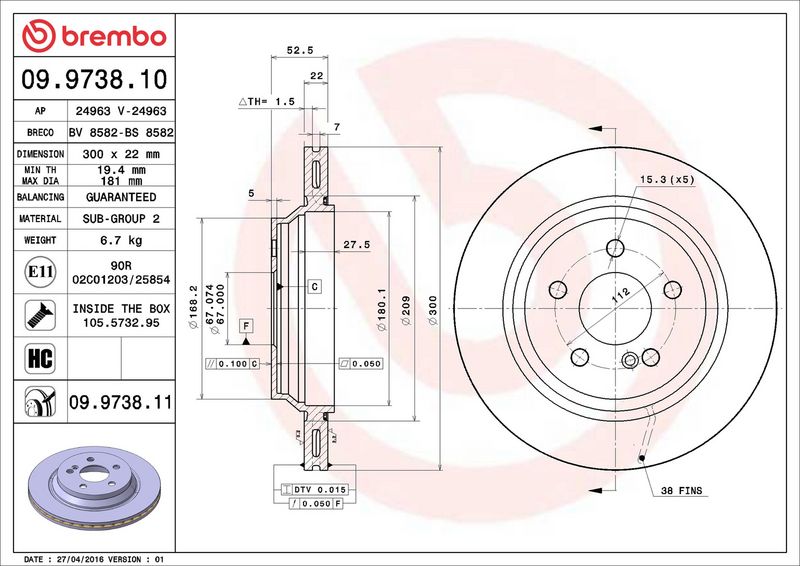

The Brembo 09.9738.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 22

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 59

Centering Diameter [mm] : 67

Outer Diameter [mm] : 300

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 19.4

Tightening Torque [Nm] : 150

BLUE PRINT : ADU1743110
BORG & BECK : BBD4291
BOSCH : 0 986 478 473
DELPHI : BG3726
FEBI BILSTEIN : 23177
FTE : 9072582
HELLA : 8DD 355 106-911
MEYLE : 015 523 0035
MEYLE : 015 523 0035/PD
MINTEX : MDC1428
TEXTAR : 92099503
TRW : DF4437

Brembo 09.9738.11 Brake Disc
