BREMBO

Brembo 09.9750.1X Brake Disc

SKU: 09.9750.1X

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£137.02 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW

1 (E87)

Description	Cylinder Capacity	Horse Power	Year
116 i	1596 CCM	115 HP	06/2004 - 06/2011
116 i	1599 CCM	122 HP	09/2007 - 06/2011
116 i	1995 CCM	122 HP	01/2009 - 06/2011
118 i	1995 CCM	129 HP	07/2004 - 02/2007
118 i	1995 CCM	136 HP	10/2006 - 06/2011
116 d	1995 CCM	116 HP	03/2009 - 06/2011
118 d	1995 CCM	122 HP	06/2004 - 02/2007

1 (E81)

Description	Cylinder Capacity	Horse Power	Year
116 i	1596 CCM	115 HP	09/2007 - 12/2011
116 i	1599 CCM	122 HP	03/2007 - 12/2011
116 i	1995 CCM	122 HP	11/2008 - 12/2011
116 d	1995 CCM	116 HP	11/2008 - 12/2011

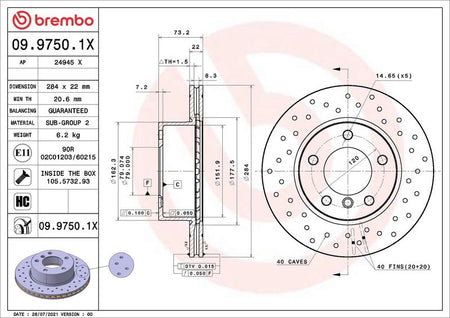

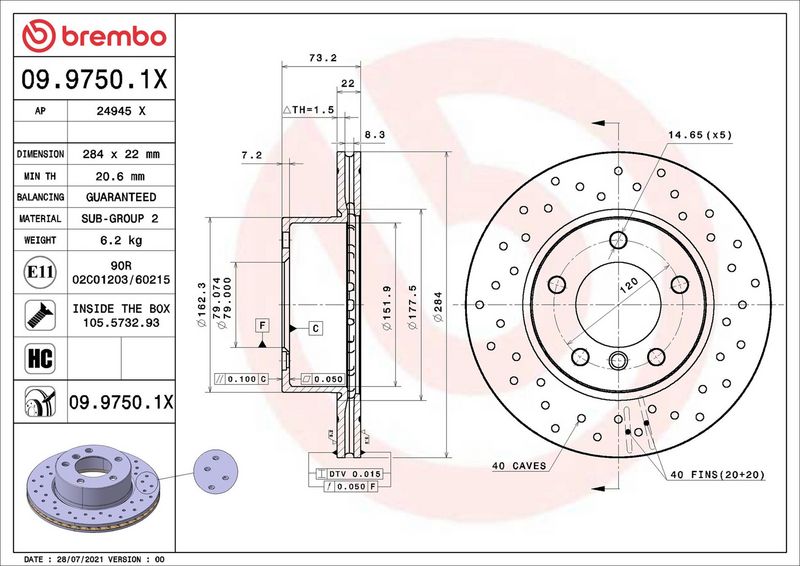

The Brembo 09.9750.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Brake Disc Thickness [mm] : 22

Number of Holes : 5

Height [mm] : 73

Centering Diameter [mm] : 79

Outer Diameter [mm] : 284

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 20.6

BLUE PRINT : ADB114370
BOSCH : 0 986 479 213
BOSCH : 0 986 479 W60
DELPHI : BG3899C
FEBI BILSTEIN : 23535
FTE : 9082570
HELLA : 8DD 355 118-031
MINTEX : MDC2350
TEXTAR : 92238400
TEXTAR : 92238403
TRW : DF4447
VALEO : 186816
VALEO : 672779

Brembo 09.9750.1X Brake Disc
