Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.9752.1X Brake Disc - 1
Brembo 09.9752.1X Brake Disc - 2
Brembo 09.9752.1X Brake Disc - 1
Brembo 09.9752.1X Brake Disc - 2
BREMBO

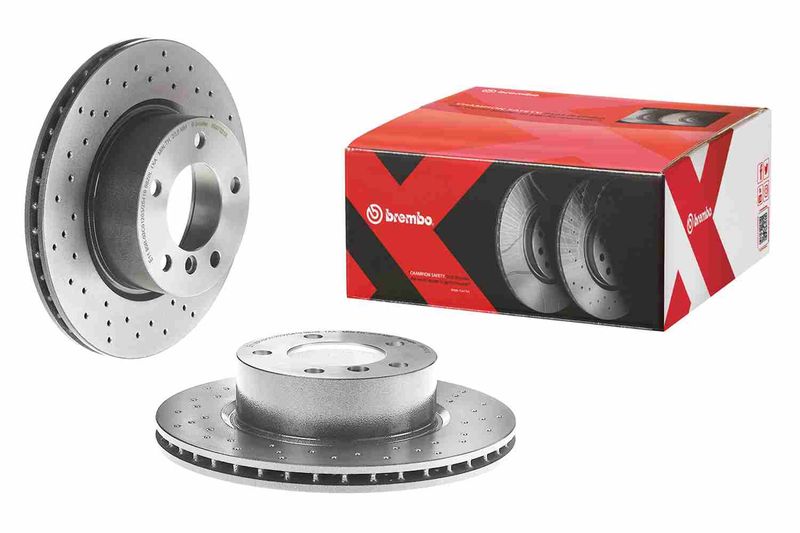

Brembo 09.9752.1X Brake Disc

SKU: 09.9752.1X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£149.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
118 i 1995 CCM 129 HP 07/2004 - 02/2007
118 i 1995 CCM 136 HP 10/2006 - 06/2011
118 i 1995 CCM 143 HP 09/2006 - 06/2011
120 i 1995 CCM 150 HP 06/2004 - 02/2007
118 d 1995 CCM 136 HP 03/2007 - 06/2011
1 (E81)
Description Cylinder Capacity Horse Power Year
118 i 1995 CCM 143 HP 09/2006 - 12/2011
118 d 1995 CCM 143 HP 09/2006 - 12/2011
118 d 1995 CCM 136 HP 09/2006 - 12/2011
1 Coupe (E82)
Description Cylinder Capacity Horse Power Year
118 d 1995 CCM 136 HP 09/2009 - 10/2013
118 d 1995 CCM 143 HP 09/2009 - 10/2013
1 Convertible (E88)
Description Cylinder Capacity Horse Power Year
118 i 1995 CCM 143 HP 03/2008 - 10/2013
118 d 1995 CCM 143 HP 09/2008 - 12/2013
118 d 1995 CCM 136 HP 09/2008 - 12/2013
118 i 1995 CCM 136 HP 09/2008 - 12/2013
3 (E90)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 150 HP 12/2004 - 08/2007
318 i 1995 CCM 129 HP 09/2005 - 08/2007
318 d 1995 CCM 122 HP 03/2005 - 08/2007

The Brembo 09.9752.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

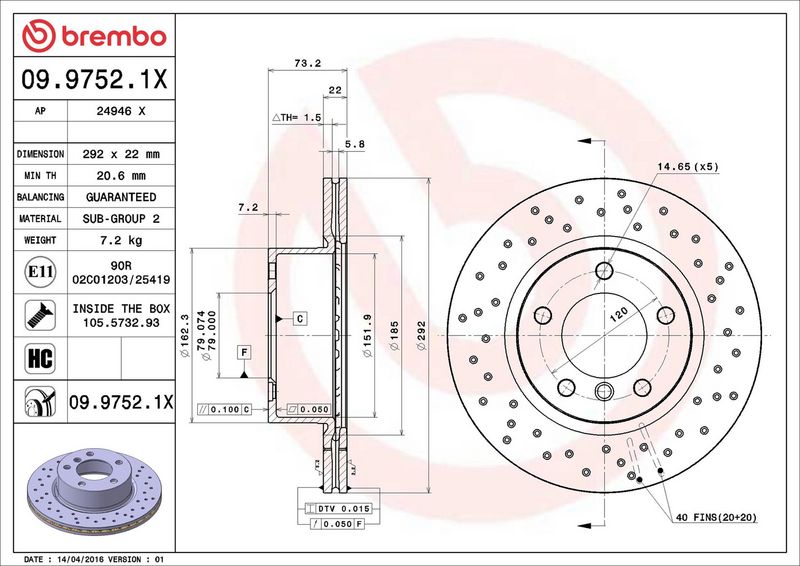

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 79
Outer Diameter [mm] : 292
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.6
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.9752.1X
  • Barcode 8020584215449
  • BMW : 34116764641 34116854997
  • BMW (BRILLIANCE) : 34116764641 34116854997
  • BLUE PRINT : ADB114373
  • BOSCH : 0 986 479 214
  • DELPHI : BG3900C
  • FEBI BILSTEIN : 23536
  • FTE : 9072072
  • FTE : 9081024
  • HELLA : 8DD 355 111-241
  • MEYLE : 315 521 3063
  • MEYLE : 383 521 3063/PD
  • MINTEX : MDC1646
  • MINTEX : MDC1646C
  • TEXTAR : 92132800
  • TEXTAR : 92132805
  • TRW : DF4449
  • VALEO : 186817
  • VALEO : 672505
