Brembo 09.9768.1X Brake Disc - 1
Brembo 09.9768.1X Brake Disc - 2
Brembo 09.9768.1X Brake Disc - 1
Brembo 09.9768.1X Brake Disc - 2
BREMBO

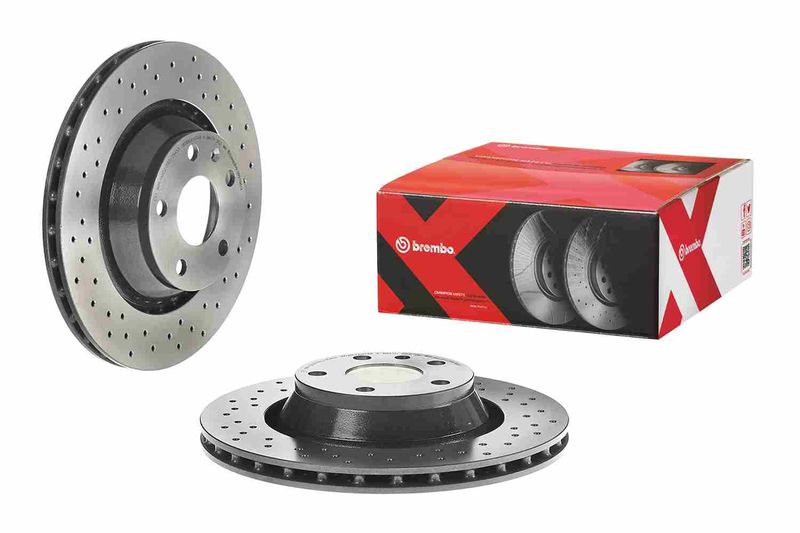

Brembo 09.9768.1X Brake Disc

SKU: 09.9768.1X
Your selected vehicle
Out of stock
Out of Stock
£152.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
TT (8J3)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 211 HP 05/2010 - 06/2014
2.0 TFSI quattro 1984 CCM 211 HP 05/2010 - 06/2014
2.5 RS quattro 2480 CCM 360 HP 05/2011 - 06/2014
2.0 TFSI 1984 CCM 200 HP 08/2006 - 06/2010
3.2 V6 quattro 3189 CCM 250 HP 08/2006 - 06/2010
2.0 TTS quattro 1984 CCM 272 HP 05/2008 - 06/2014
2.0 TDI quattro 1968 CCM 170 HP 06/2008 - 06/2014
2.0 TTS quattro 1984 CCM 265 HP 05/2008 - 06/2014
2.0 TFSI quattro 1984 CCM 200 HP 06/2008 - 06/2010
2.5 RS quattro 2480 CCM 340 HP 07/2009 - 06/2014
TT Roadster (8J9)
Description Cylinder Capacity Horse Power Year
2.0 TFSI quattro 1984 CCM 211 HP 05/2010 - 06/2014
2.5 RS quattro 2480 CCM 360 HP 03/2012 - 06/2014
3.2 V6 quattro 3189 CCM 250 HP 03/2007 - 06/2010
2.0 TTS quattro 1984 CCM 272 HP 05/2008 - 06/2014
2.0 TDI quattro 1968 CCM 170 HP 06/2008 - 06/2014
2.0 TTS quattro 1984 CCM 265 HP 05/2008 - 06/2014
2.0 TFSI quattro 1984 CCM 200 HP 06/2008 - 06/2010
2.5 RS quattro 2480 CCM 340 HP 07/2009 - 06/2014

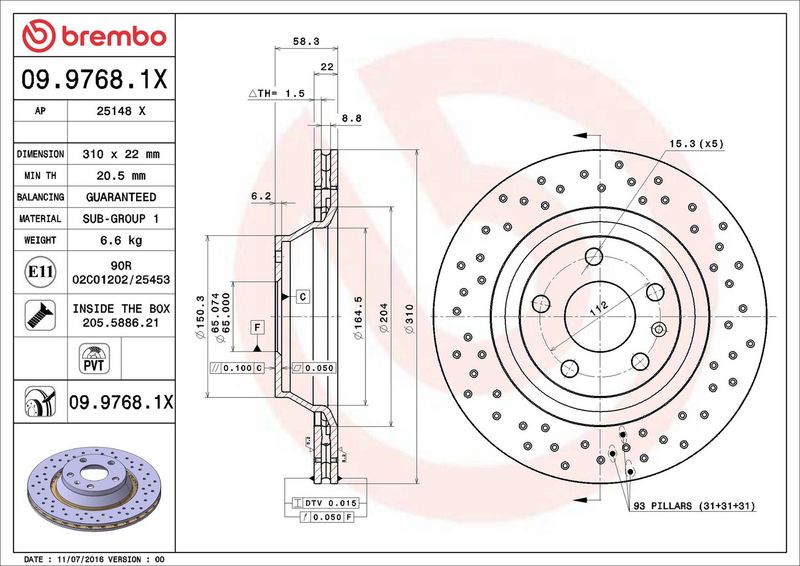

The Brembo 09.9768.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 65 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 58
Centering Diameter [mm] : 65
Outer Diameter [mm] : 310
Surface : Coated
Minimum thickness [mm] : 20.5
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.9768.1X
  • Barcode 8020584032749
  • AUDI : 8J0615601A
  • BLUE PRINT : ADV184342
  • BOSCH : 0 986 479 466
  • FEBI BILSTEIN : 36233
  • FTE : 9072829
  • HELLA : 8DD 355 113-981
  • MINTEX : MDC2290
  • TEXTAR : 92160603
  • TRW : DF4785
