BREMBO

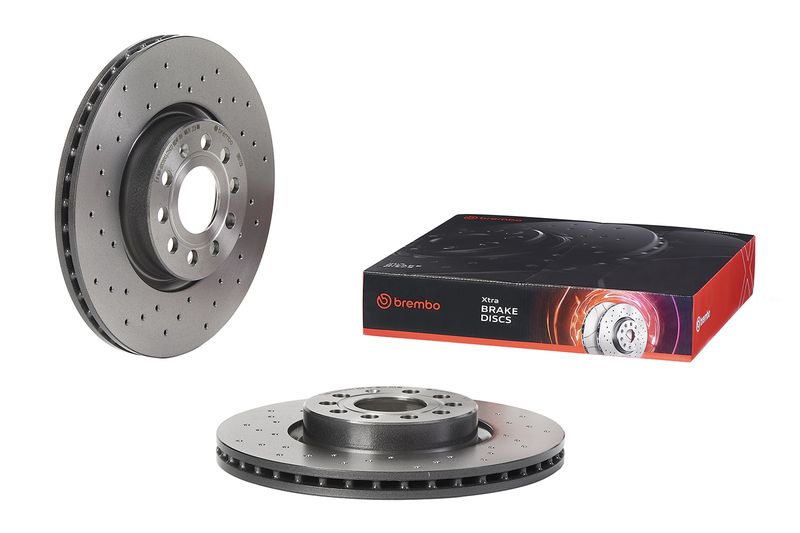

Brembo 09.9772.1X Brake Disc

SKU: 09.9772.1X

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£160.74 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

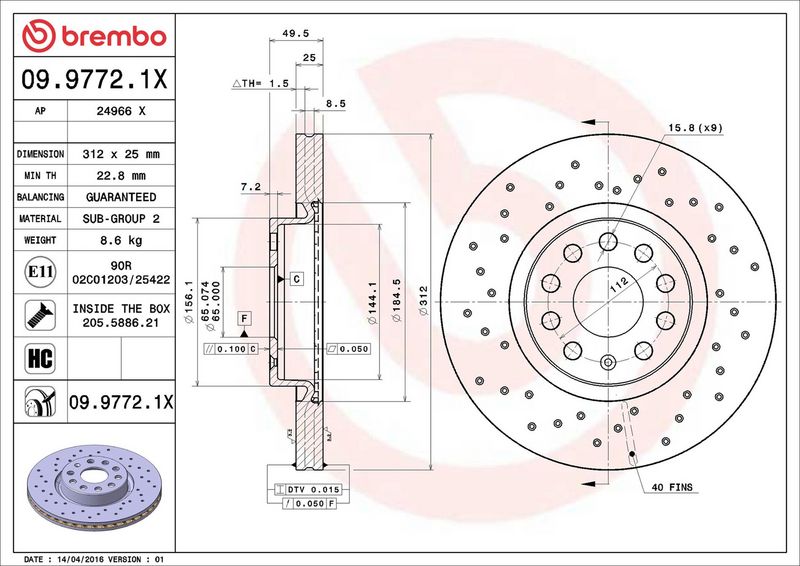

The Brembo 09.9772.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 65 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : perforated/vented

Brake Disc Thickness [mm] : 25

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 50

Centering Diameter [mm] : 65

Outer Diameter [mm] : 312

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 22.8

Tightening Torque [Nm] : 120

BLUE PRINT : ADV184308
BOSCH : 0 986 479 058
BOSCH : 0 986 479 932
BOSCH : 0 986 479 C29
DELPHI : BG3953C
FEBI BILSTEIN : 24384
FTE : 9082772
HELLA : 8DD 355 109-521
HELLA : 8DE 355 710-001
MEYLE : 115 521 1094
MEYLE : 183 521 1094/PD
MINTEX : MDC1706
MINTEX : MDC1706C
SKF : VKBD 80006 V1
TEXTAR : 92120500
TEXTAR : 92120503
TEXTAR : 92120505
TRW : DF4464S
VALEO : 197242
VALEO : 672500

Brembo 09.9772.1X Brake Disc
