Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

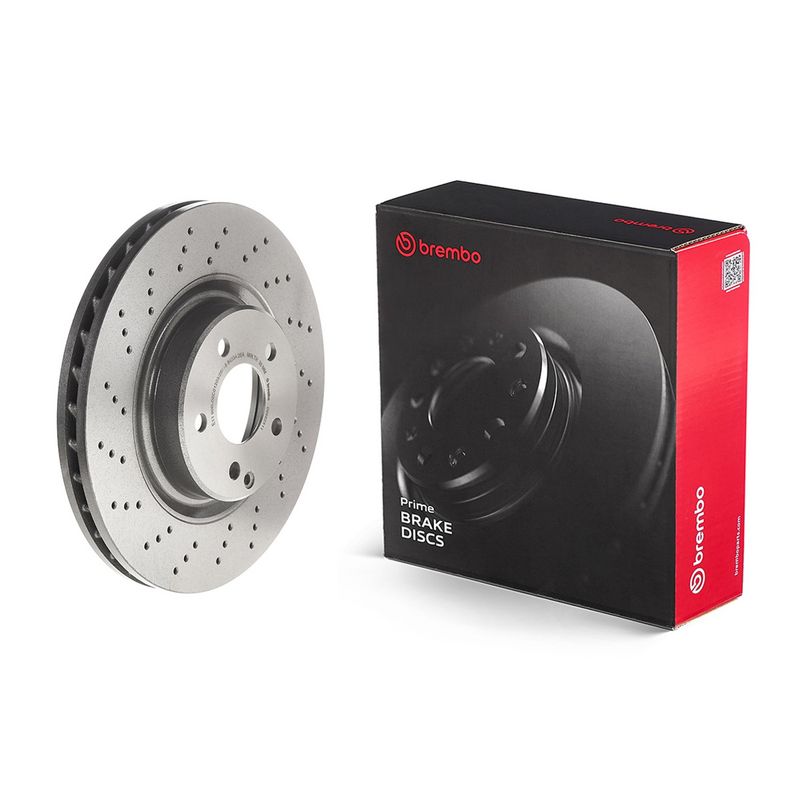

Brembo 09.9825.11 Brake Disc - 1

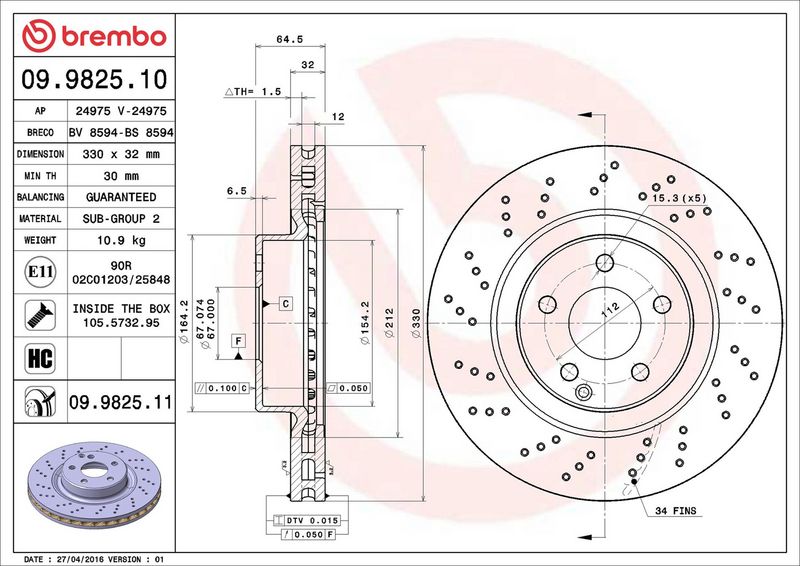

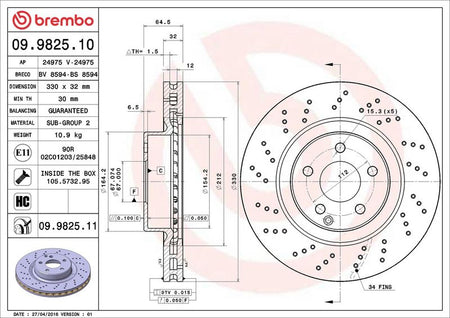

Brembo 09.9825.11 Brake Disc - 2
Brembo 09.9825.11 Brake Disc - 1
Brembo 09.9825.11 Brake Disc - 2
BREMBO

Brembo 09.9825.11 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.9825.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£79.89 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 220 CDI 2149 CCM 163 HP 03/2003 - 12/2008
E 500 (211.070) 4966 CCM 306 HP 03/2002 - 12/2008
E 220 CDI (211.006) 2148 CCM 150 HP 03/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 102 HP 07/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 122 HP 07/2002 - 12/2008
E 200 Kompressor (211.042) 1796 CCM 163 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 220 T CDI 2148 CCM 163 HP 03/2003 - 07/2009
E 200 T Kompressor (211.242) 1796 CCM 163 HP 03/2003 - 07/2009
E 220 T CDI (211.206) 2148 CCM 150 HP 03/2003 - 07/2009
E 500 T (211.270) 4966 CCM 306 HP 10/2003 - 07/2009
E 320 T CDI (211.222) 2987 CCM 224 HP 03/2005 - 07/2009
E 280 T CDI (211.220) 2987 CCM 190 HP 03/2005 - 07/2009
SL (R230)
Description Cylinder Capacity Horse Power Year
500 (230.475) 4966 CCM 306 HP 10/2001 - 01/2012
350 (230.456) 3498 CCM 272 HP 03/2006 - 01/2012
500 (230.471) 5461 CCM 388 HP 03/2006 - 01/2012
350 (230.458) 3498 CCM 316 HP 04/2008 - 01/2012
280 (230.454) 2996 CCM 231 HP 03/2008 - 01/2012
300 (230.454) 2996 CCM 231 HP 04/2009 - 01/2012

The Brembo 09.9825.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.9825.11
  • Barcode 8020584030028
  • MERCEDES-BENZ : 2044213112 2304210512 2304210812 A2044213112 A2304210512 A2304210812
  • MERCEDES-BENZ (BBDC) : A2304210812
  • BLUE PRINT : ADU174315
  • BORG & BECK : BBD6048S
  • BOSCH : 0 986 479 415
  • DELPHI : BG3883
  • FEBI BILSTEIN : 37725
  • HELLA : 8DD 355 109-471
  • MEYLE : 083 521 0040/PD
  • MINTEX : MDC1671
  • SKF : VKBD 81239 V1
  • TEXTAR : 92120205
  • TEXTAR : 92120207
  • TRW : DF6433S
  • VALEO : 197682
  • VALEO : 673162
