Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

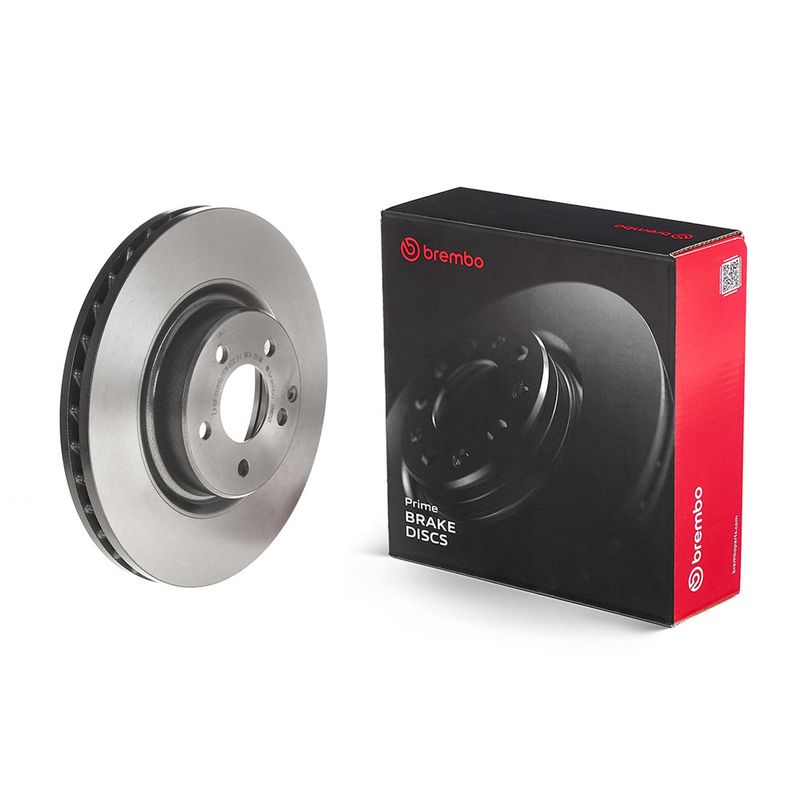

Brembo 09.9825.21 Brake Disc - 1
Brembo 09.9825.21 Brake Disc - 2
Brembo 09.9825.21 Brake Disc - 1
Brembo 09.9825.21 Brake Disc - 2
BREMBO

Brembo 09.9825.21 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.9825.21

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£93.74 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 350 (219.356) 3498 CCM 272 HP 10/2004 - 12/2010
CLS 500 (219.375) 4966 CCM 306 HP 10/2004 - 12/2010
CLS 350 (219.357) 3498 CCM 292 HP 04/2006 - 12/2010
CLS 280 (219.354) 2996 CCM 231 HP 07/2008 - 12/2010
CLS 300 (219.354) 2996 CCM 231 HP 04/2009 - 12/2010
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 320 (211.065) 3199 CCM 224 HP 03/2002 - 12/2008
E 500 (211.070) 4966 CCM 306 HP 03/2002 - 12/2008
E 400 CDI (211.028) 3996 CCM 260 HP 02/2003 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 220 T CDI (211.206) 2148 CCM 150 HP 03/2003 - 07/2009
E 500 T (211.270) 4966 CCM 306 HP 10/2003 - 07/2009
E-CLASS Platform/Chassis (VF211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.606) 2148 CCM 150 HP 10/2003 - 07/2006
E 220 CDI (211.608) 2148 CCM 170 HP 04/2006 - 07/2009
E 270 CDI (211.616) 2685 CCM 177 HP 10/2003 - 07/2005
E 280 CDI (211.620) 2987 CCM 190 HP 08/2005 - 07/2009
GLK-CLASS (X204)
Description Cylinder Capacity Horse Power Year
350 (204.956) 3498 CCM 272 HP 04/2009 - 06/2015
350 4-matic (204.988) 3498 CCM 306 HP 06/2008 - 06/2015
350 CDI 4-matic (204.992) 2987 CCM 231 HP 02/2010 - 06/2015
250 4-matic (204.937) 1991 CCM 211 HP 08/2013 - 06/2015
280 4-matic (204.981) 2996 CCM 231 HP 06/2008 - 06/2009
350 4-matic (204.987) 3498 CCM 272 HP 06/2008 - 04/2011
320 CDI 4-matic (204.983) 2987 CCM 224 HP 06/2008 - 06/2015
220 CDI (204.902) 2143 CCM 170 HP 12/2008 - 06/2015
220 CDI 4-matic (204.984, 204.997) 2143 CCM 170 HP 12/2008 - 06/2015
250 CDI 4-matic (204.982, 204.904) 2143 CCM 204 HP 09/2009 - 06/2015
300 4-matic (204.981) 2996 CCM 231 HP 07/2009 - 12/2015
350 CDI 4-matic (204.992) 2987 CCM 224 HP 07/2009 - 01/2010
200 CDI (204.901) 2143 CCM 143 HP 07/2010 - 06/2015
350 CDI 4-matic (204.993) 2987 CCM 265 HP 07/2012 - 06/2015

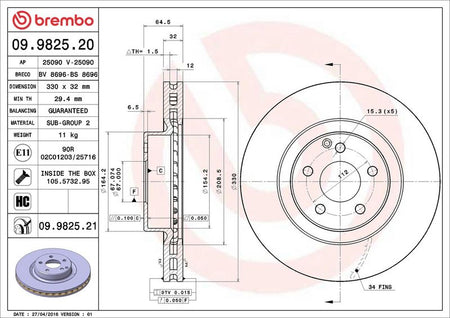

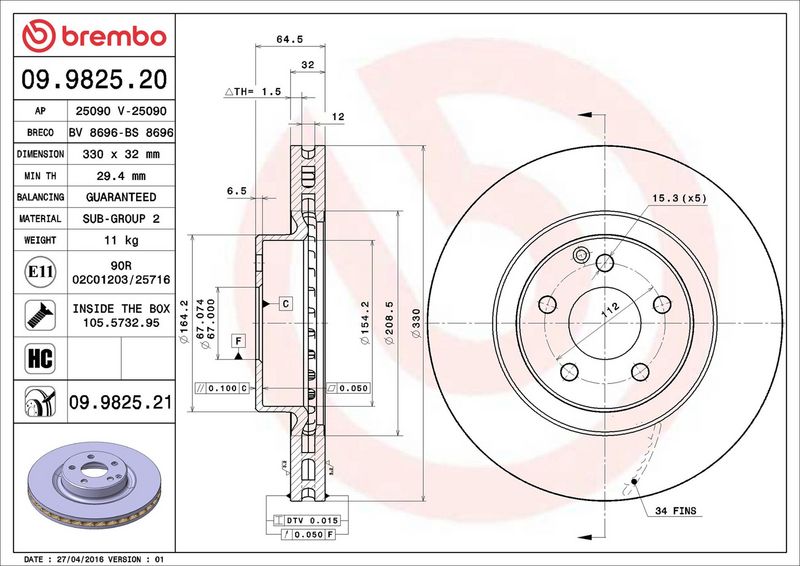

The Brembo 09.9825.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 29.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.9825.21
  • Barcode 8020584024904
  • MERCEDES-BENZ : 2044210000 2044212912 2114211012 2114211312 2114211412 A2044210000 A2044212912 A2114211012 A2114211312 A2114211412
  • MERCEDES-BENZ (BBDC) : A2044210000 A2044212912 A2114211312 A2114211412
  • BLUE PRINT : ADU174302
  • BORG & BECK : BBD5765S
  • BOSCH : 0 986 479 332
  • DELPHI : BG3877
  • FEBI BILSTEIN : 43936
  • FTE : 9071038
  • HELLA : 8DD 355 109-431
  • HELLA : 8DD 355 127-921
  • MEYLE : 083 521 0004/PD
  • MINTEX : MDC1788
  • SKF : VKBD 80205 V1
  • TEXTAR : 92119905
  • TRW : DF7351S
  • VALEO : 197767
