BREMBO

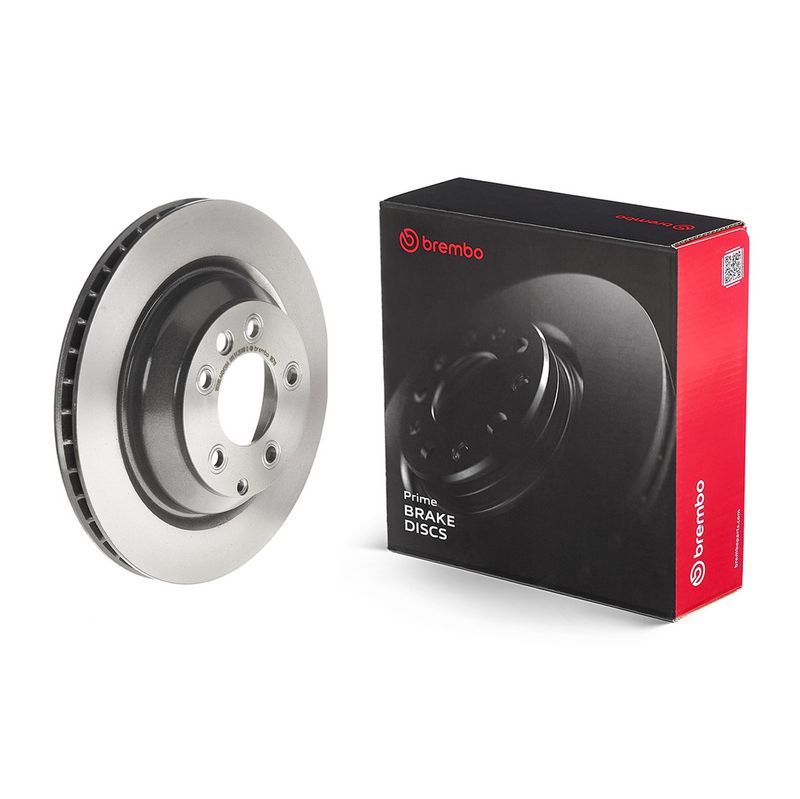

Brembo 09.9871.11 Brake Disc

SKU: 09.9871.11

Your selected vehicle

Out of stock

Out of Stock

£98.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI

Q7 (4LB)

Description	Cylinder Capacity	Horse Power	Year
3.0 TDI quattro	2967 CCM	224 HP	06/2009 - 05/2012
3.0 TDI quattro	2967 CCM	245 HP	05/2011 - 08/2015
3.0 TFSI quattro	2995 CCM	280 HP	05/2011 - 08/2015
4.2 FSI quattro	4163 CCM	350 HP	03/2006 - 05/2010
3.0 TDI quattro	2967 CCM	233 HP	03/2006 - 05/2008
3.6 FSI quattro	3597 CCM	280 HP	08/2006 - 05/2010
3.0 TDI quattro	2967 CCM	211 HP	03/2006 - 05/2010
4.2 TDI quattro	4134 CCM	326 HP	03/2007 - 06/2009
3.0 TDI quattro	2967 CCM	240 HP	11/2007 - 08/2015
6.0 TDI quattro	5934 CCM	500 HP	09/2008 - 05/2014
4.2 TDI quattro	4134 CCM	340 HP	05/2009 - 08/2015
3.0 TFSI quattro	2995 CCM	272 HP	05/2010 - 08/2015
3.0 TFSI quattro	2995 CCM	333 HP	05/2010 - 08/2015
3.0 TDI quattro	2967 CCM	204 HP	05/2010 - 08/2015

PORSCHE

CAYENNE (9PA)

Description	Cylinder Capacity	Horse Power	Year
S 4.5	4511 CCM	340 HP	09/2002 - 09/2007
Turbo 4.5	4511 CCM	450 HP	09/2002 - 09/2007
3.2	3189 CCM	250 HP	10/2003 - 09/2007
Turbo S 4.5	4511 CCM	500 HP	01/2004 - 09/2007
Turbo S 4.5	4511 CCM	521 HP	05/2002 - 05/2006
3.6	3598 CCM	290 HP	02/2007 - 09/2010
S 4.8	4806 CCM	385 HP	02/2007 - 09/2010
Turbo S 4.8	4806 CCM	500 HP	02/2007 - 09/2010
GTS 4.8	4806 CCM	405 HP	10/2007 - 09/2010
3.0 TDI	2967 CCM	240 HP	02/2009 - 09/2010
Turbo S 4.8	4806 CCM	550 HP	08/2008 - 09/2010
Turbo S 4.8	4806 CCM	540 HP	02/2007 - 09/2010

CAYENNE (92A)

Description	Cylinder Capacity	Horse Power	Year
4.8 Turbo	4806 CCM	500 HP	06/2010 - 05/2014
3.0 Diesel	2967 CCM	239 HP	06/2010 - 05/2018
3.0 Diesel	2967 CCM	245 HP	06/2011 - 05/2018
4.8 Turbo	4806 CCM	540 HP	06/2010 - 05/2014
3.0 Diesel	2967 CCM	211 HP	06/2010 - 05/2018
3.6	3598 CCM	300 HP	06/2010 - 12/2018
4.8 S	4806 CCM	400 HP	06/2010 - 05/2014
3.0 S E-Hybrid	2995 CCM	416 HP	05/2011 - 05/2017
4.8 GTS	4806 CCM	420 HP	06/2012 - 05/2018
4.2 S Diesel	4134 CCM	382 HP	10/2012 - 05/2014
4.8 Turbo S	4806 CCM	550 HP	10/2012 - 05/2014
3.0 Diesel	2967 CCM	262 HP	10/2014 - 05/2018
4.2 S Diesel	4134 CCM	385 HP	10/2014 - 05/2018
3.6 S	3604 CCM	420 HP	10/2014 - 05/2018
4.8 Turbo	4806 CCM	520 HP	10/2014 - 05/2018

TOUAREG (7LA, 7L6, 7L7)

Description	Cylinder Capacity	Horse Power	Year
5.0 V10 TDI	4921 CCM	313 HP	10/2002 - 05/2010
3.0 V6 TDI	2967 CCM	225 HP	11/2004 - 05/2010
6.0 W12	5998 CCM	450 HP	08/2004 - 05/2010
3.6 V6 FSI	3597 CCM	280 HP	10/2005 - 05/2010
4.2 V8 FSI	4163 CCM	350 HP	06/2006 - 05/2010
5.0 R50 TDI	4921 CCM	350 HP	08/2007 - 05/2010
3.0 V6 TDI	2967 CCM	240 HP	11/2007 - 05/2010

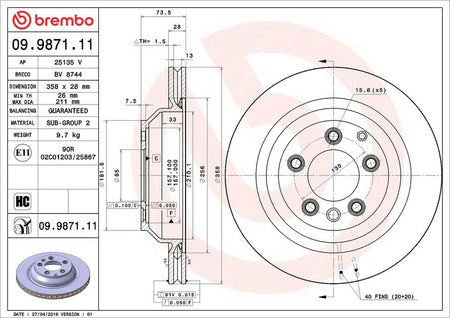

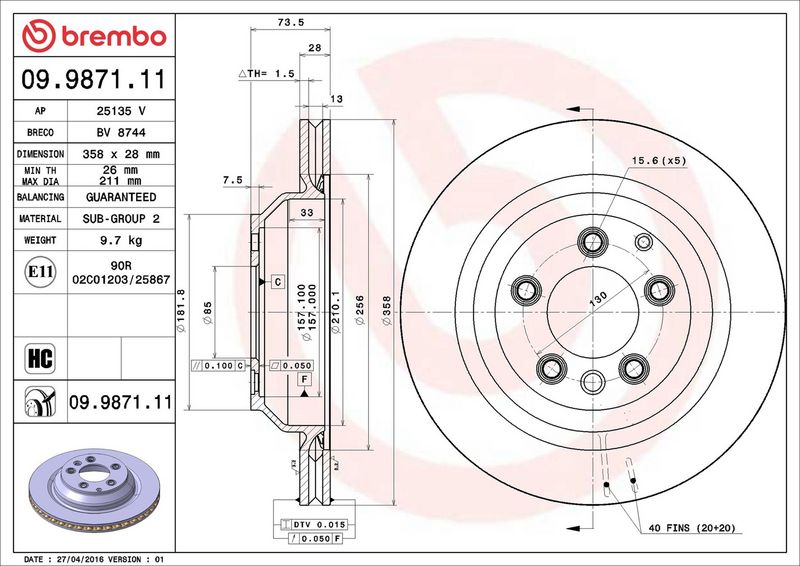

The Brembo 09.9871.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 85 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 5

Height [mm] : 74

Centering Diameter [mm] : 85

Outer Diameter [mm] : 358

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 26

Tightening Torque [Nm] : 160

BLUE PRINT : ADV184389
BORG & BECK : BBD5926S
BOSCH : 0 986 479 259
BOSCH : 0 986 479 750
DELPHI : BG4070
DELPHI : BG4070C
FEBI BILSTEIN : 28161
FTE : 9081324
HELLA : 8DD 355 129-721
MEYLE : 115 523 0034/PD
MINTEX : MDC2229
National : NBD1667
TEXTAR : 92151403
TRW : DF4759S
VALEO : 197051
VALEO : 673214
