Brembo 09.9923.1X Brake Disc - 1
Brembo 09.9923.1X Brake Disc - 2
Brembo 09.9923.1X Brake Disc - 1
Brembo 09.9923.1X Brake Disc - 2
BREMBO

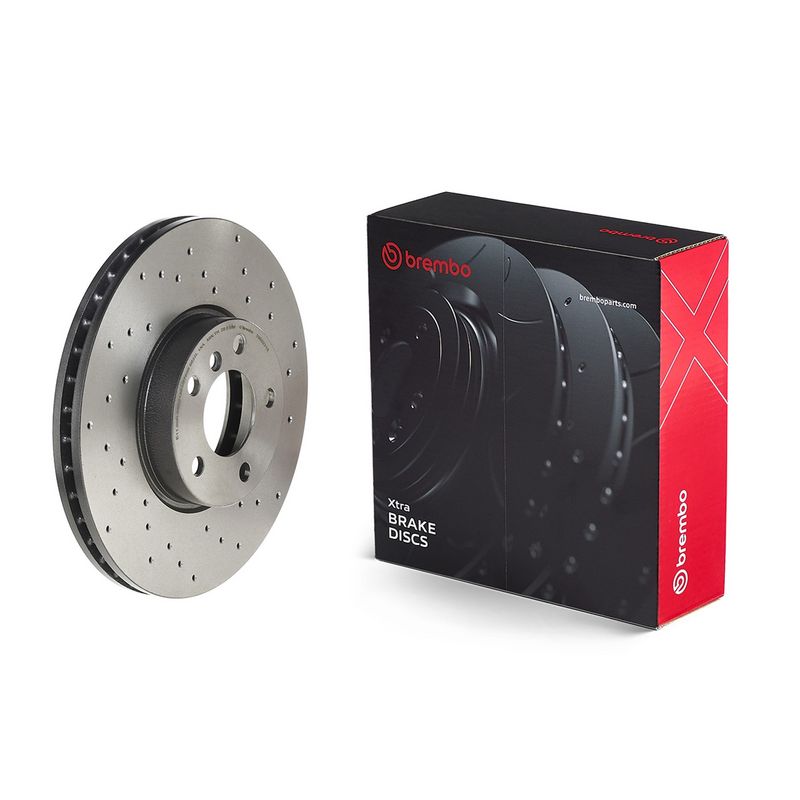

Brembo 09.9923.1X Brake Disc

SKU: 09.9923.1X
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£104.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2013
xDrive 40 d 2993 CCM 306 HP 09/2010 - 06/2013
xDrive 35 i 2979 CCM 306 HP 04/2010 - 07/2013
3.0 si 2996 CCM 272 HP 10/2006 - 09/2008
xDrive 30 i 2996 CCM 272 HP 10/2008 - 03/2010
xDrive 35 i 2979 CCM 320 HP 02/2012 - 06/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2013 - 07/2018
xDrive 35 i 2979 CCM 306 HP 12/2013 - 07/2018
sDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 35 i 2979 CCM 326 HP 12/2013 - 07/2018
xDrive 30 d 2993 CCM 277 HP 08/2013 - 07/2018
sDrive 25 d 1995 CCM 231 HP 08/2015 - 07/2018
xDrive 25 d 1995 CCM 231 HP 08/2015 - 07/2018
xDrive 28 i 1997 CCM 245 HP 06/2015 - 07/2018
xDrive 25 d 2993 CCM 218 HP 04/2014 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2014
xDrive 30 d 2993 CCM 211 HP 04/2010 - 07/2014
xDrive 35 i 2979 CCM 306 HP 01/2008 - 07/2014
xDrive 35 i 2979 CCM 320 HP 08/2012 - 06/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 211 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 306 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 277 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 326 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 249 HP 12/2014 - 07/2019

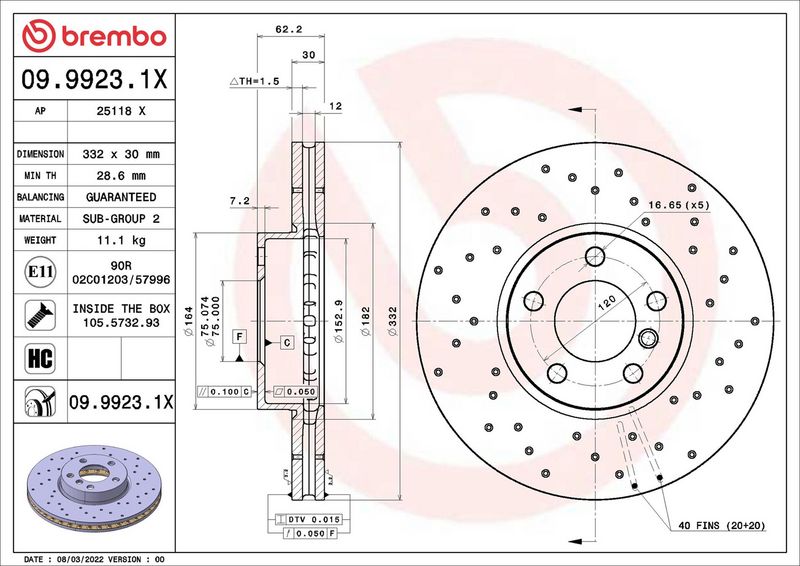

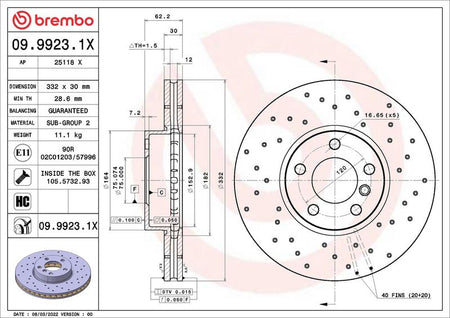

The Brembo 09.9923.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 62
Centering Diameter [mm] : 75
Outer Diameter [mm] : 332
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28.6
  • Vendor BREMBO
  • SKU 09.9923.1X
  • Barcode 8020584320129
  • BMW : 34116771985 34116793245 34116868939 34116886478
  • BLUE PRINT : ADB114364
  • BOSCH : 0 986 479 624
  • FEBI BILSTEIN : 32264
  • FTE : 9081322
  • HELLA : 8DD 355 117-731
  • HELLA : 8DD 355 129-291
  • MINTEX : MDC2329
  • TEXTAR : 92160805
  • VALEO : 197177
  • VALEO : 672508
