BREMBO

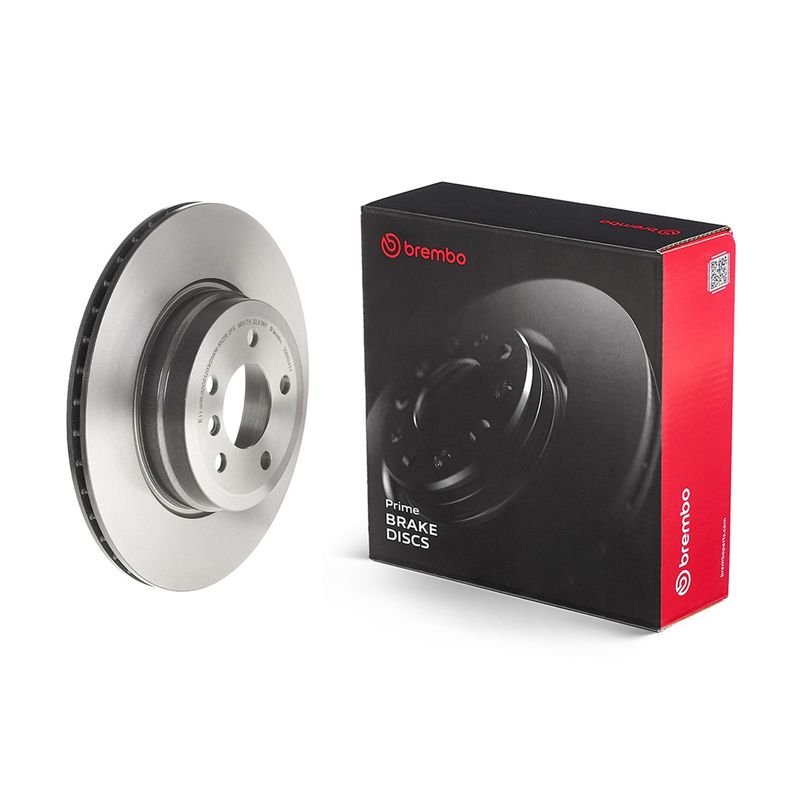

Brembo 09.9924.11 Brake Disc

SKU: 09.9924.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£64.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 50 i 4395 CCM 408 HP 04/2010 - 07/2013
4.8 i xDrive 4799 CCM 355 HP 10/2006 - 09/2008
3.0 d 2993 CCM 235 HP 12/2006 - 09/2008
3.0 sd 2993 CCM 286 HP 10/2007 - 09/2008
xDrive 48 i 4799 CCM 355 HP 10/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 10/2008 - 07/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 50 i 4395 CCM 449 HP 08/2013 - 07/2018
M 50 d 2993 CCM 381 HP 12/2013 - 07/2018
xDrive 35 i 2979 CCM 306 HP 12/2013 - 07/2018
xDrive 40 d 2993 CCM 313 HP 12/2013 - 07/2018
xDrive 35 i 2979 CCM 326 HP 12/2013 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
ActiveHybrid 4395 CCM 485 HP 01/2009 - 10/2011
xDrive 35 i 2979 CCM 306 HP 01/2008 - 07/2014
xDrive 50 i 4395 CCM 408 HP 07/2008 - 07/2014
xDrive 30 d 2993 CCM 235 HP 04/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 01/2008 - 03/2010
xDrive 50 i 4395 CCM 449 HP 10/2007 - 06/2014
M 50 d 2993 CCM 381 HP 08/2011 - 06/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 50 i 4395 CCM 449 HP 08/2014 - 07/2019
M 50 d 2993 CCM 381 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 306 HP 08/2014 - 07/2019
xDrive 40 d 2993 CCM 313 HP 12/2014 - 07/2019
xDrive 35 i 2979 CCM 326 HP 08/2014 - 07/2019

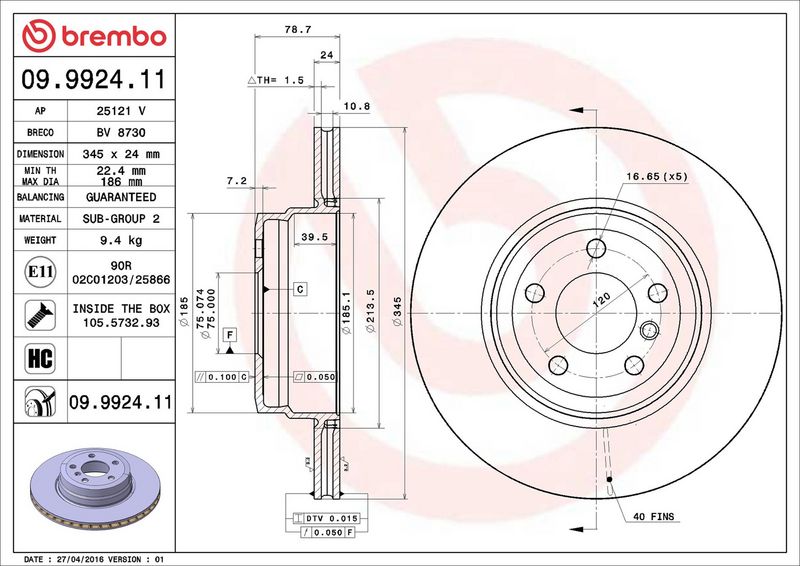

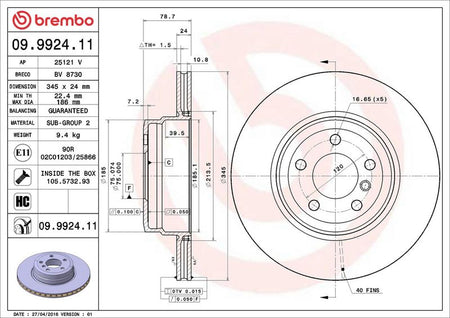

The Brembo 09.9924.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 79
Centering Diameter [mm] : 75
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
Tightening Torque [Nm] : 140
  • Vendor BREMBO
  • SKU 09.9924.11
  • Barcode 8020584992418
  • BMW : 34216771971 34216793246 34216886480
  • BLUE PRINT : ADB114303
  • BORG & BECK : BBD5825S
  • BOSCH : 0 986 479 443
  • DELPHI : BG9064
  • FEBI BILSTEIN : 36385
  • FTE : 9081326
  • HELLA : 8DD 355 117-761
  • HELLA : 8DD 355 129-321
  • MEYLE : 315 523 0025/PD
  • MINTEX : MDC2331
  • National : NBD1528
  • SKF : VKBD 90715 V1
  • TEXTAR : 92161200
  • TEXTAR : 92161205
  • TRW : DF6070S
  • VALEO : 197180
