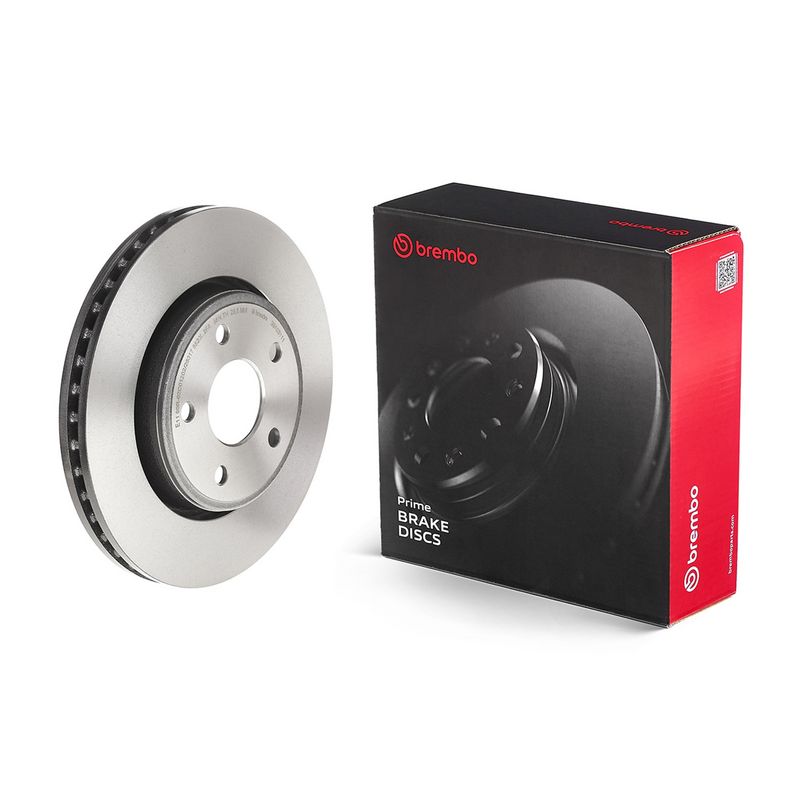

Brembo 09.A031.11 Brake Disc - 1

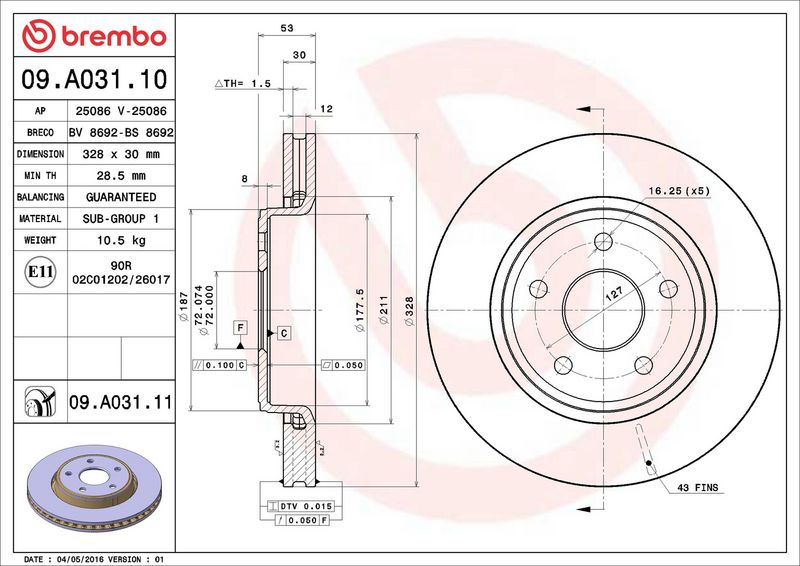

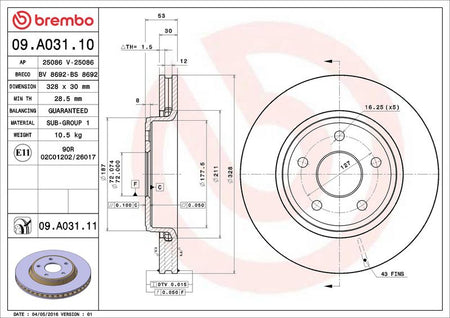

Brembo 09.A031.11 Brake Disc - 2
Brembo 09.A031.11 Brake Disc - 1
Brembo 09.A031.11 Brake Disc - 2
BREMBO

Brembo 09.A031.11 Brake Disc

SKU: 09.A031.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£52.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JEEP
COMMANDER (XK, XH)
Description Cylinder Capacity Horse Power Year
3.7 V6 4x4 3701 CCM 214 HP 09/2005 - 12/2010
4.7 V8 4x4 4701 CCM 231 HP 09/2005 - 12/2010
5.7 V8 4x4 5654 CCM 326 HP 09/2005 - 12/2010
3.0 CRD 4x4 2987 CCM 218 HP 04/2006 - 12/2010
4.7 V8 4x4 4701 CCM 303 HP 01/2008 - 12/2009
GRAND CHEROKEE III (WH, WK)
Description Cylinder Capacity Horse Power Year
3.0 CRD 4x4 2987 CCM 211 HP 05/2006 - 12/2010
3.0 CRD 2987 CCM 218 HP 06/2005 - 12/2010
3.7 V6 3701 CCM 214 HP 10/2004 - 12/2010
3.7 V6 4x4 3701 CCM 214 HP 10/2004 - 12/2010
4.7 V8 4x4 4701 CCM 231 HP 06/2005 - 12/2010
5.7 V8 4x4 5654 CCM 326 HP 06/2005 - 12/2010
3.0 CRD 4x4 2987 CCM 218 HP 06/2005 - 12/2010
4.7 V8 4x4 4701 CCM 303 HP 09/2007 - 02/2010
4.7 V8 4x4 4701 CCM 223 HP 06/2005 - 12/2010
4.7 V8 FLEX 4701 CCM 227 HP 10/2004 - 05/2010
3.7 V6 4x4 3700 CCM 201 HP 01/2008 - 12/2010
4.7 V8 4x4 4701 CCM 227 HP 10/2007 - 05/2010
4.7 4x4 4701 CCM 233 HP 10/2004 - 12/2010
4.7 V8 4701 CCM 227 HP 10/2004 - 05/2010

The Brembo 09.A031.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 53
Centering Diameter [mm] : 72
Outer Diameter [mm] : 328
Surface : Coated
Minimum thickness [mm] : 28.5
Tightening Torque [Nm] : 115
  • Vendor BREMBO
  • SKU 09.A031.11
  • Barcode 8020584027561
  • JEEP : 52089269AB
  • BLUE PRINT : ADA104311
  • BORG & BECK : BBD5908S
  • BOSCH : 0 986 479 R48
  • DELPHI : BG9058
  • FEBI BILSTEIN : 170053
  • FTE : 9071262
  • FTE : 9081298
  • HELLA : 8DD 355 115-921
  • MINTEX : MDC2102
  • TEXTAR : 92184500
  • TEXTAR : 92184505
  • TRW : DF6251
  • VALEO : 673656
