BREMBO

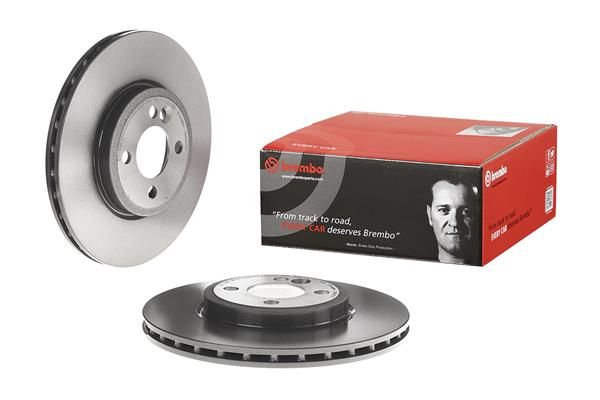

Brembo 09.A047.31 Brake Disc

SKU: 09.A047.31
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£86.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MINI
MINI (R50, R53)
Description Cylinder Capacity Horse Power Year
One 1598 CCM 90 HP 06/2001 - 09/2006
Cooper 1598 CCM 116 HP 06/2001 - 09/2006
Cooper S 1598 CCM 163 HP 03/2002 - 09/2006
One D 1364 CCM 75 HP 06/2003 - 09/2006
Works 1598 CCM 210 HP 11/2003 - 09/2006
Cooper S 1598 CCM 170 HP 07/2004 - 09/2006
One D 1364 CCM 88 HP 06/2003 - 09/2006
John Cooper Works 1598 CCM 218 HP 03/2006 - 09/2006
MINI Convertible (R52)
Description Cylinder Capacity Horse Power Year
John Cooper Works 1598 CCM 210 HP 07/2004 - 11/2007
MINI (R56)
Description Cylinder Capacity Horse Power Year
Cooper S 1598 CCM 163 HP 03/2010 - 11/2013
Cooper S John Cooper Works 1598 CCM 200 HP 10/2011 - 11/2013
Cooper S 1598 CCM 174 HP 10/2006 - 02/2010
MINI CLUBMAN (R55)
Description Cylinder Capacity Horse Power Year
Cooper S 1598 CCM 200 HP 03/2010 - 06/2014
Cooper S 1598 CCM 163 HP 10/2007 - 06/2014
Cooper S 1598 CCM 174 HP 08/2007 - 07/2010
Cooper S 1598 CCM 184 HP 03/2010 - 06/2014
MINI Convertible (R57)
Description Cylinder Capacity Horse Power Year
Cooper S 1598 CCM 200 HP 02/2010 - 06/2015
Cooper S 1598 CCM 174 HP 12/2008 - 07/2010
Cooper S 1598 CCM 184 HP 02/2010 - 06/2015
Cooper S 1598 CCM 163 HP 10/2007 - 06/2015
Cooper SD 1995 CCM 136 HP 01/2011 - 05/2015
MINI Coupe (R58)
Description Cylinder Capacity Horse Power Year
Cooper S JCW 1598 CCM 200 HP 12/2010 - 04/2015
Cooper S 1598 CCM 184 HP 12/2010 - 04/2015
Cooper S 1598 CCM 163 HP 12/2010 - 04/2015
MINI Roadster (R59)
Description Cylinder Capacity Horse Power Year
Cooper S JCW 1598 CCM 200 HP 11/2011 - 04/2015
Cooper S 1598 CCM 163 HP 11/2011 - 04/2015
Cooper 1598 CCM 122 HP 11/2011 - 04/2015
Cooper S 1598 CCM 184 HP 11/2011 - 04/2015
Cooper 1598 CCM 115 HP 11/2011 - 04/2015

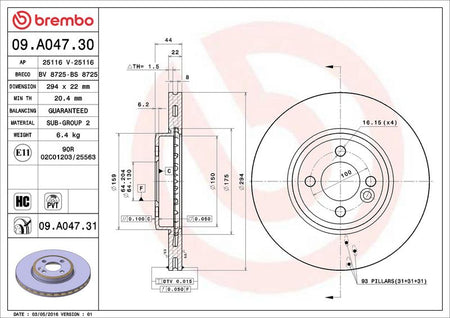

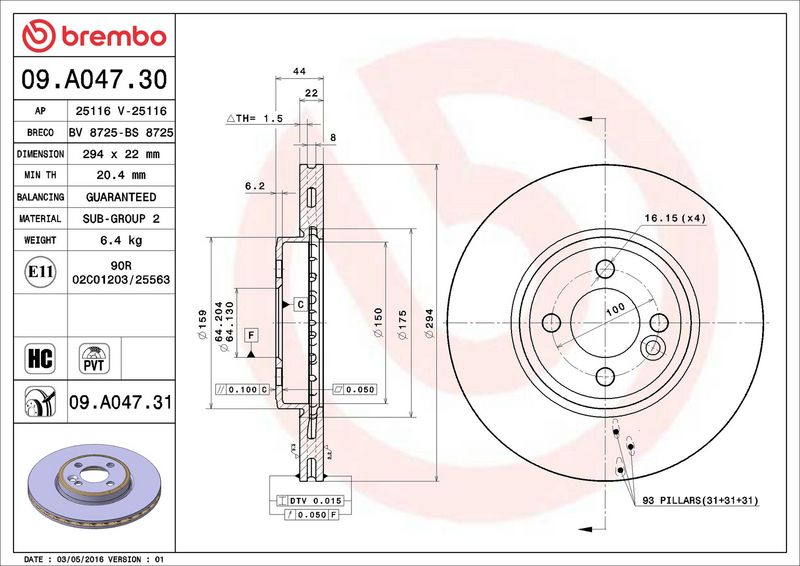

The Brembo 09.A047.31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Height [mm] : 44
Centering Diameter [mm] : 64
Outer Diameter [mm] : 294
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.4
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.A047.31
  • Barcode 8020584017814
  • MINI : 34116774986 34116858652
  • BLUE PRINT : ADG043148
  • BORG & BECK : BBD4617
  • BOSCH : 0 986 479 438
  • DELPHI : BG4184
  • FEBI BILSTEIN : 36698
  • FEBI BILSTEIN : 43904
  • FTE : 9072352
  • FTE : 9082178
  • HELLA : 8DD 355 115-871
  • MEYLE : 315 521 0028/PD
  • MEYLE : 383 521 0007/PD
  • MINTEX : MDC2083
  • SKF : VKBD 80419 V2
  • TEXTAR : 92183505
  • TRW : DF6010
  • TRW : DF6016
  • VALEO : 197160
  • VALEO : 672537
  • VALEO : 673419
